Health Check Overview

Health Checks review an environment for configurations that might cause future problems, not necessarily existing problems. Health Checks tend to focus on non-functional qualities like the following:

  • Availability
  • Security
  • Manageability
  • User Experience
  • Performance
  • Reliability

The rest of this article is an incomplete list of health check assertions for Citrix environments.

StoreFront Load Balancing

  • Citrix connectivity infrastructure design is documented: StoreFront, Gateways, ADCs, multiple datacenters, Delivery Controllers, SQL, etc.
    • Separate test Citrix environment has identical architecture as production: multiple data centers, high availability for all components, etc. – enables testing changes, including HA/DR changes, before performing those changes in production. Some upgrades are performed differently for HA/DR than for single components.
  • The FQDN that users use to access Citrix (e.g. https://citrix.company.com) resolves to a Load Balancing VIP, not a single server.
    • The FQDN automatically fails over (e.g. GSLB) to a VIP in a different data center if the primary data center is down.
  • The certificate for the SSL Load Balancing VIP is valid: trusted, not expired, matches FQDN, no errors in Chrome, etc.
    • Someone is responsible for ensuring the certificate is not expired and receives pending certificate expiration notifications.
  • The Load Balancing VIP sends SSL traffic to two or more StoreFront servers in the local data center – for redundancy.
    • The ADC-to-StoreFront server communication is SSL/TLS encrypted, not HTTP – this traffic contains user credentials.
  • The ADC monitor for the StoreFront servers is type STOREFRONT, or does a GET request to /Citrix/Store/discovery – other monitors might not detect stopped services.
  • X-Forwarded-For is configured in the Load Balancing Services (or Service Group) for Client IP header insertion.
  • Load balancing persistence is SOURCEIP with a timeout that is as long as the Receiver for Web timeout – COOKIEINSERT doesn’t work on all client devices.

StoreFront Servers

  • If the StoreFront servers are on the same hypervisor cluster, then anti-affinity is configured to keep them on separate hypervisor hosts.
  • StoreFront server VMs do no have any old snapshots – slows down performance, and consumes disk space.
  • StoreFront version is updated to resolve Security vulnerability as of Jan 16, 2024.
    • Upgrades are performed in a separate test environment that has identical architecture as production before the updates are performed in production.
  • StoreFront server group have latency of less than 40 ms (with subscriptions disabled) or less than 3 ms (with subscriptions enabled) between each member.
  • StoreFront configuration is propagated to other servers in the StoreFront Server Group.
  • OS, Patch level and VM Configuration of all StoreFront Server Group members are identical.
  • No recent unknown errors in Event Viewer at Applications and Services -> Citrix Delivery Services.
  • StoreFront Base URL is an https URL, not http. The FQDN resolves to the Load Balancing VIP, not a single server.
  • SSL certificates are installed on each StoreFront server and bound to IIS Default Web site. The SSL certificates are not expired.
  • C:\Users does not contain a bunch of user profiles. Delprof2.exe should be scheduled to delete these profiles – caused by users changing expired passwords.
  • If HTML5 Workspace app is enabled, then HTML5 Receiver is up to date – New versions are released at least monthly.
  • If Workspace app is stored on StoreFront servers, then the local Workspace apps in C:\Program Files\Citrix\Receiver StoreFront\Receiver Clients is current.
  • If Favorites are enabled, then Favorites (aka Subscriptions) are replicated to a StoreFront Server Group in a different data center.
  • If Federated Authentication Service (FAS), then multiple FAS servers configured through Group Policy.
    • FAS Servers are the same version as StoreFront.
    • If the FAS servers are on the same hypervisor cluster, then anti-affinity is configured to keep them on separate hypervisor hosts.
    • FAS Get-FasAuthorizationCertificate shows registration certificate is OK and not MaintenanceDue.
    • FAS group policy .admx template is up to date in SYSVOL.
    • FAS User Rules restricts usage to just some StoreFront servers, some VDAs, and some users – not all
    • Auto-enrollment is not enabled on the FAS certificate templates..
    • The Certificate Authority database is not excessively large.
    • For CA that is dedicated to only FAS, only Citrix templates. Other templates (e.g. Domain Controller) removed.
  • Task Manager shows sufficient CPU and Memory for each StoreFront server.
  • There’s sufficient free disk space – check C:\inetpub\logs
  • A monitoring tool alerts administrators of any StoreFront performance metric issue, availability issue (e.g. service stopped), and Event Log errors.
  • Logon Simulator runs periodically to verify that StoreFront is functional.
  • StoreFront Disaster Recovery procedure is documented and tested.

StoreFront Configuration

  • Only one store. Or every store but one is hidden – if multiple stores are advertised, then Workspace app will prompt the user to select a store.
  • Each Delivery Controller farm is configured with two or more Delivery Controllers – for redundancy.
    • Or Delivery Controller XML can be load balanced. If load balanced, then ADC monitor is of type CITRIX-XD-DDC – so ADC can detect Local Host Cache outages.
    • Prefer separate farms per data center instead of stretched single farms (with zones) across multiple data centers.
  • Transport Type for Delivery Controllers is https, not http – this traffic includes user credentials.
  • Receiver for Web Session Timeout is not too short for user experience or too long for security.
  • Citrix Gateway configuration in StoreFront console:
    • The STAs in StoreFront match the STAs configured on the Citrix Gateway Virtual Server on the ADC appliances.
    • Session Reliability is enabled.
    • Callback URL is only needed for SmartAccess and Citrix FAS – Callback URL should be removed if it’s not needed.
    • Internal Beacon is only reachable internally.
    • External Beacon does not include citrix.com – ping.citrix.com is OK
  • HDX Optimal Routing can send ICA traffic through the Citrix Gateway that is closest to the VDA (i.e. farm).

Delivery Controllers

  • In CVAD 1906+, Citrix Scout Health Check does not show any errors or warnings.
  • If the Delivery Controller servers are on the same hypervisor cluster, then ensure anti-affinity is configured to keep them on separate hypervisor hosts.
  • Delivery Controller VMs do not have any old snapshots.
  • Delivery Controller version is an LTSR Cumulative Update version (e.g., 1912 CU7), or the two latest Current Release versions (e.g., 2305). No other versions are supported – Citrix Product Matrix shows support dates.
    • Delivery Controller Upgrades are performed in a separate test environment before performed in production.
    • Citrix upgrades or updates are performed around twice per year.
  • Run Get-BrokerDBConnection to see the SQL connection string. No SQL Express. For AlwaysOn Availability Group (AAG):
    • SQL String points to AAG Listener, not single node.
    • All AAG SQL nodes in one data center. For multiple data centers, prefer separate farms in each data center with local SQL.
    • SQL String contains MultiSubnetFailover.
    • Each SQL server has SQL Logins for all Delivery Controllers – SQL Logins usually don’t replicate between SQL nodes.
    • Prefer Synchronous Commit with Automatic Failover over Asynchronous replication.
    • AAG Dashboard in SQL Studio does not show any issues.
  • SQL databases for Site, Monitoring, and Log are separate, not combined.
  • SQL databases for Citrix are not excessively large. Database Backup tool is truncating the database logs.
  • SQL Servers have sufficient CPU/Memory to handle the Citrix SQL traffic. Monitoring tool alerts SQL DBAs of any performance or availability issues.
  • SQL Server version is supported by Citrix. https://support.citrix.com/article/CTX114501
  • Local Host Cache is enabled on the Delivery Controllers. Run Get-BrokerSite to confirm.
    • Delivery Controller virtual CPU allocation is 1 CPU socket with multiple cores – SQL Express LocalDB for Local Host Cache only runs on a single socket (up to four cores).
    • How are non-persistent virtual desktops handled during SQL outage?
    • In CVAD 1912 and newer, LocalDB is upgraded to SQL Server Express LocalDB 2017
  • SQL Disaster Recovery plan is documented and tested.
  • SSL Certificates are installed on Delivery Controllers to encrypt XML traffic from StoreFront.
    • SSL certificates are bound to IIS Default Web Site, or netsh http sslcert to perform binding. IIS Binding does not include hostname.
    • SSL certificate not expired.
  • Trust XML Requests is enabled for pass-through authentication, SmartAccess, FAS, etc. Run Get-BrokerSite to confirm.
  • Task Manager shows sufficient CPU and Memory for each Delivery Controller server.
  • A monitoring tool alerts administrators of any Delivery Controller performance metric issue, availability issue (e.g. service stopped), and Event Log errors.

Citrix Studio

  • Citrix Studio consoles installed on administrator machines are the same version as the Delivery Controllers.
  • Customer Experience Improvement Program is disabled in Citrix Studio > Configuration node > Product Support tab.
  • Licensing Model/Edition matches what you actually own.
  • Citrix Studio Administrators are periodically audited to ensure only authorized users are granted Studio access.
    • Administrators are added as Active Directory Groups, not individual users.
  • Applications are published to Active Directory Groups, not individual users.
  • If App Groups, applications are published to only App Groups. Applications are not published to both App Groups and Delivery Groups.
  • Hypervisor connection uses a service account, not an admin account.
    • Hypervisor permissions for the service account are the minimum permissions required (custom role), not full hypervisor administrator.
  • Each Hosting Resource only has one datastore selected, not multiple datastores – Citrix MCS does not have a datastore “Rebalance” option. More datastores means more copies of master image snapshots, which means longer time to push out an updated Master image.
  • MCS Memory Caching Option is not enabled unless VDA 1903 or newer – older VDA, including 7.15 VDA, has poor performing MCSIO driver.
  • If MCS, VDA restarts are not performed in hypervisor since hypervisor does not cause MCS reset like Studio restart does.
  • StoreFront URLs are not assigned to Delivery Groups using Studio – instead use Workspace app group policy to assign StoreFront URL.

Citrix License Server

  • Citrix License Server is version 11.17.2.0 build 40000 or newer to resolve Apache vulnerabilities.
  • Citrix License Server is uploading telemetry every 90 days as required by Citrix. Check c:\Program Files (x86)\Citrix\Licensing\LS\resource\usage\last_compliance_upload
  • The licenses installed on Citrix License Server match the purchased licenses at https://citrix.com/account – some Citrix License Servers have too many licenses installed.
  • If multiple Citrix License Servers, installed license count across all License Servers does not exceed the purchased licenses shown at https://citrix.com/account
  • Administrators are not frequently clearing named user license assignments to simulate concurrent licensing – license assignments should only be cleared when the user permanently no longer uses Citrix.
  • Subscription Advantage dates are not expired – if expired, download new license files and install them.
  • Usage and Statistics tab is configured as intended in the Citrix Licensing Manager gear icon.
  • Citrix License Server Disaster Recovery procedure is documented and tested.

Remote Desktop Services (RDS) Licensing

  • If RDSH VDAs, two or more activated RDS Licensing servers.
  • RDS Licensing Server operating system version matches (or newer) the RDSH VDA operating system version – e.g. Windows 2019 RDS Licensing for Windows 2019 RDSH servers. Windows 2019 RDS Licensing also works with Windows 2016 RDSH servers.
  • In RD Licensing Manager, right-click server -> Review Configuration shows green checkmarks.
  • The combined licenses installed on all RDS license servers do not exceed the purchased licenses.
  • On RDSH VDAs, HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows NT\Terminal Services\LicenseServers shows two servers.
    • LicensingMode = 4, which is Per User mode, which is not enforced.

Citrix Director

  • Director version matches the Delivery Controller version.
  • If multiple Director servers:
    • Hypervisor Anti-affinity is configured.
    • Director Saved Filters are relocated to a UNC path instead of local C: drive.
  • Director server VMs do not have old snapshots – slows down servers, and increases disk space.
  • SSL certificate is installed on Director servers.
    • Admins and Support teams always use https to access Director. IIS or load balancer redirects from http to https.
  • Director website is SSL load balanced.
    • SSL protocol, not http, between load balancer and Director servers – this traffic contains user credentials.
  • Director logon page auto-populates the domain name – for user convenience. Might have to reconfigure the domain name after every Director upgrade.
  • Citrix Policy Settings for Director:
    • Enable Process monitoring is enabled.
    • Enable monitoring of application failures is enabled.
  • If Citrix Virtual Apps and Desktops (CVAD) is Premium Edition:
    • Director Alerts are configured to email CVAD administrators.
    • Citrix ADM HDX Insight is integrated with Director. HTTPS protocol, not HTTP.
    • Probes are configured – Probe Agent version matches the Director version.
  • Help Desk knows how to use Citrix Director to support users.
  • Average logon durations are not excessive.
  • Repetitive issues (e.g. profile resets) are analyzed for root cause analysis and future prevention.

VDAs

  • Catalog design is documented – storage design, network design, multiple datacenters design, recovery design, etc.
  • VDA version matches the Delivery Controller version.
  • VDA Subnets are added to Active Directory Sites & Services.
    • Check LOGONSERVER variable after logon to confirm correct Domain Controller.
  • DHCP is highly available. VDA IP Subnet router forwards DHCP requests to more than one DHCP server. DHCP scope is replicated to more than one DHCP server.
    • DHCP Scope has sufficient address availability for VDAs.
  • DNS Reverse Lookup Zone with PTR records for the Virtual Apps and Desktops machines.
  • If KMS, slmgr.vbs /dlv shows a unique KMS CMID for each VDA machine – another option is Active Directory-based activation.
  • If persistent (dedicated) Catalogs:
    • The VDA version matches the Delivery Controller version – VDA updates should be automated (e.g. SCCM).
    • Dedicated Catalogs are created as Full Clones – Fast Clones cannot be moved to different storage or different hypervisor cluster.
    • Persistent desktops are backed up, replicated, etc. Recovery process is documented and tested.
    • Persistent desktop provisioning process is automated, preferably from a self-service portal.
  • No Personal vDisk – User Layers instead
  • No User Layers – slows down logons, and not all apps work – prefer Persistent Desktops instead.
    • User Layers are backed up, and restore process is documented and tested.
    • User Layers are stored on a clustered file server that can handle failover of always-open VHD files (e.g. Windows File Share with Continuous Availability) – Replication won’t help with file server outage and already open User Layers
  • Multiple department-specific master images instead of a single monolithic image – during user logon, monolithic images need to be dynamically customized for user requirements, which slows down logons.
    • No double-hop – slows down logons and increases complexity since double hop requires Workspace app and icon management on the first-hop VDA machine – prefer master images with every application installed locally instead of double-hop to published applications.
    • No Shortcut visibility management – slows down logons
    • No Elastic Layering – slows down logons
    • No App-V – slows down logons, and slows down machine performance
    • Master Image update process is automated – e.g. SCCM can push updates to master images
  • Catalogs are upgraded to latest Catalog version available.
  • VDA registrations are somewhat evenly distributed across the Delivery Controllers.
  • ListOfDDCs registry value on VDAs has two or more Delivery Controllers.
  • Daily Health Check report shows registration status and maintenance mode status of every VDA machine.
  • RDSH Load Index Policy has not been modified from the default. CPU Metric is too volatile, and can cause a Denial of Service and uneven distribution of sessions. Current Load Index values should be almost the same on every RDSH VDA and not be anywhere near 10000.
  • In-guest monitoring agent shows VDA memory usage. Allocated VM Memory matches or exceeds memory Committed Bytes – Hypervisor monitoring can’t show actual VM memory usage.
  • RDSH VDAs are periodically restarted – net statistics workstation or net server statistics shows uptime.
    • In CVAD 1909+, MaxDelayMins is configured in Get-BrokerRebootScheduleV2.
  • For EDT protocol, MtuDiscovery is enabled on the VDAs. MtuDiscovery requires VDAs version 1912 and newer.
  • If Cloud-hosting of VDAs, PowerScale controls VDA power management.

VDAs – Hypervisor Hardware Clusters

  • Desktop VDAs are in their own hypervisor cluster that does not contain any Server virtual machines – avoids Windows Server licensing.
    • Hypervisor clusters with Windows Servers have proper Windows Server licensing.
  • Hypervisor admins don’t perform any hypervisor updates without first reviewing Citrix’s Supported Hypervisors article.
  • VDA vCenter is separate from non-VDA vCenter – allows non-VDA vCenter to be upgraded without affecting Citrix.
  • Hypervisor performance is monitored and alerted: CPU contention (aka CPU Ready Percentage), disk latency, CPU Usage, etc.
  • Capacity planning tool warns admins when more hypervisor hardware is needed.
  • vSphere clusters have N+1 or N+2 extra capacity for redundancy.
  • HA and DRS are enabled on vSphere cluster according to design – not all designs use these features
  • CPU and Memory consumption are evenly distributed across the hypervisor cluster
  • If VMFS6 datastores, vSphere 6.7 Update 3 is installed – see release notes
  • NTP is configured and running on hypervisor hosts.
  • Hypervisor hosts have High performance BIOS settings.
  • In larger environments, dedicated VLAN(s) for VDAs – not shared with non-Citrix workloads
    • MCS and PVS require DHCP
  • Network Uplinks are redundant and have sufficient capacity
    • ESXi Management/Vmotion/Storage traffic are separate VLANs from the VDA VLANs
    • Storage multipathing is functioning
  • NVIDIA vGPU software is current on hypervisor host and virtual machines. – vGPU Manager 11.0+ supports guest driver version one major version back (e.g., 10.0) – February 2024 security update
    • The newest hypervisors can vMotion GPU-configured virtual machines – vgpu.hotmigrate configured in vCenter Advanced Settings. DRS set to Manual or Partially Automated.
    • NVIDIA in-guest vGPU Driver is installed before the VDA is installed – otherwise HDX 3D Pro will not work.
    • ESXi Host Graphics Settings set to Shared Direct and spread across GPUs – Host GPUs set to Shared Direct.
    • NVIDIA license servers are redundant (failover support), or in the cloud.

VDAs – Virtual Machine Hardware (vSphere)

  • Network Interface type is VMXNET3, not E1000.
  • devices.hotplug=false is configured in Virtual Machine Configuration Settings.
  • If disk space is a concern, virtual machine memory is reserved to reduce .vswp file size.
  • If Citrix App Layering:
    • Paravirtual controller is not added.
    • Boot firmware is BIOS, not EFI.
  • Windows 10 version is supported by Citrix VDA version, and supported by App Layering version.
    • Windows 11 is supported with VDA 2109 and newer. It is not supported by VDA 1912.
  • VMware Tools version is current.

VDAs – Master Image Build

  • Master Image build process is documented.
  • Master Image virtual machine was built from scratch – not converted from a physical machine.
  • Security scan of the VDA Master Images shows compliance with enterprise security requirements.
  • VDA version resolves vulnerability – 2305, 2203 CU3, or 1912 CU7
  • Master Image updates:
    • Master Image maintenance is automated – e.g., SCCM can push updates to Master Images. A script can push Master Images to Catalogs.
    • Software Deployment team notifies the Master Image maintainers when applications or Windows require an update.
    • Master Image is sealed before shutdown – e.g., antivirus is generalized, SCCM Client is generalized – sealing should be scripted – Base Image Script Framework (BIS-F) can automate this
    • Master Image updates are tested before deployed to production. QA testing. Canary testing.
    • Master Image snapshots are deleted after a period of time.
  • Profile Management is patched to resolve Local privilege escalation vulnerability – 2106 Hotfix 1, 1912 CU3 Hotfix 1, or 7.15 CU7 Hotfix 1. 1912 CU4 includes the fix.
  • Antivirus is installed. Antivirus is optimized for non-persistent machines (aka VDI).
  • Other IT agents (e.g., software auditing, SCCM Agent) are optimized for non-persistent machines.
  • Local Groups:
    • Administrators group does not contain any non-administrators.
    • Direct Access Users group only contains authorized RDP users.
  • Citrix Optimizer or similar has removed Windows 10 Store Apps.
  • Windows Default profile was not modified – instead use group policy to control Windows appearance.
  • Windows Updates are current (i.e., last install date is within the last 60 days).
  • C: drive permissions are changed so Users can’t create folders on root of C: drive.
  • Power management is set to High Performance with no sleep timers.
  • If Citrix Provisioning:
    • Pagefile is shrunk so it fits on PVS cache disk – there’s no need to move the pagefile since PVS will move it for you. Just make sure it’s small.
    • Event Logs are moved to PVS cache disk.
  • Customer Experience Improvement Program is disabled in VDA registry.
  • FSLogix is a recent version – FSLogix version 2.9.7979.62170 resolves a security vulnerability in Cloud Cache.
  • Office 365 Shared Computer Activation is enabled.
    • FSLogix is implemented for Outlook search roaming.
  • Microsoft Teams is installed using machine-wide installer.
    • Microsoft Teams machine-wide installation is periodically manually updated – there’s no auto-update.
    • Teams cache folders excluded from roaming profiles.
  • For OneDrive Files On-demand, is only installed on Windows Server 2019 and newer, or Windows 10 1709 and newer
    • OneDrive is installed using machine-wide installer – check C:\Program Files (x86)\OneDrive
    • FSLogix saves OneDrive cache.

Citrix App Layering

  • Prefer automated (e.g. SCCM) Master Image updates over manual App Layering layer updates – if SCCM is mature, then there’s no need for App Layering.
  • Prefer SCCM-managed dedicated desktops over User Layers – SCCM is a known technology. User Layers are proprietary to Citrix and might not support every application.
  • Enterprise Layer Manager (ELM) version is current – ELM updates are required to support newer Citrix Virtual Apps and Desktops (CVAD) and newer Windows 10. There’s no LTSR version of ELM.
  • Citrix Provisioning Agent version matches the ELM version.
  • Directory Junction Bind account is a service account, not a regular user whose password expires.
    • LDAP is Secure (Use SSL).
  • Administrator role membership is periodically audited to ensure only authorized users are granted access.
  • ELM is backed up. Or layers are periodically exported from ELM.
  • Group Policy controls membership of local groups in VDA machines – e.g. add Domain Admins to local Administrators group.
  • Antivirus is configured properly for Layering.
  • Hypervisor Connector uses a service account with limited permissions.
  • Connector cache is enabled to speed up layering operations.
  • Offload Compositing is enabled in the Connectors.
  • File servers hosting Elastic Layers and User Layers are monitored for performance issues and capacity planning.
  • User Layers are backed up, replicated, etc.

Citrix Provisioning

Provisioning Servers:

  • Provisioning Servers version matches the Delivery Controller version.
  • Multiple Provisioning Servers for High Availability.
    • Hypervisor Anti-affinity is configured.
  • Sufficient RAM for vDisk caching in memory – around 2-3 GB of memory per active vDisk.
  • Only one NIC per Provisioning Server – simplifies the configuration.
  • Server Bootstrap has multiple Provisioning Servers listed.
  • Threads times Ports are sufficient for the number of target devices.
  • vDisk Boot Menu is disabled in the registry – enables maintenance mode Target Devices to automatically boot from maintenance mode vDisks.
  • Antivirus has exclusions for Citrix Provisioning.
  • Provisioning Server performance metrics are monitored and alerted.
    • NIC throughput is not saturated.

Provisioning Farm Properties:

  • Offline database is enabled.
  • Auditing is enabled.
  • Administrators list only contains authorized administrators, preferably from an Active Directory Group.
  • Customer Experience Improvement Program is disabled.
  • For AlwaysOn Availability Group, MultiSubnetFailover is configured in the database connection string.

vDisks:

  • If local storage, vDisk files are identical on all Provisioning Servers.
  • vDisk files are VHDX, not VHD – faster version merging.
  • vDisks are sized dynamic, not fixed – Saves disk space. Standard Mode vDisks don’t grow so no performance impact.
  • vDisk files are defragmented.
  • vDisk files are backed up.
  • vDisk updates are automated.

Target Devices:

  • Target Device Boot Method is highly available – Target Devices on same subnet Provisioning Servers. Or DHCP Option 66 with TFTP Load Balancing. Or Boot ISO/Boot Partition has multiple Provisioning Server addresses.
    • DHCP is highly available. Subnet’s router forwards DHCP requests to multiple DHCP servers. Replicated DHCP scope.
    • Use PXEChecker to verify multiple TFTP responses.
  • vDisk Write cache is configured for Target Device RAM with overflow to disk – health check script should periodically verify this.
  • WriteCache folders on Provisioning Servers are empty – no server-side caching.
  • If KMS, slmgr.vbs /dlv shows a unique KMS CMID for each Target Device machine – another option is Active Directory-based activation.
  • Target Devices are evenly distributed across multiple Provisioning servers – ensures that High Availability is working correctly – stop Stream Service to confirm HA
  • System Reserved Partition is removed from inside vDisk.
  • VMware Tools in Target Devices (vDisks) is up to date.
  • Target Device Software version matches the Citrix Provisioning version.
  • Target Device status shows low number of retries.

Group Policies and Active Directory

  • VDAs are placed in VDA-only OUs, no users – group policies apply to VDAs without affecting physical endpoints.
    • Separate OUs per Delivery Group – different group policies apply to different Delivery Groups.
  • Master Images are located in VDA OUs – computer-level GPO settings apply to the Master Images to avoid GPO timing issues on linked clones.
  • Block Inheritance OUs and Enforced GPOs are minimized.
  • .admx templates in SYSVOL > PolicyDefinitions are current – Windows 10 templates, Office templates, Citrix templates, etc.
  • Group Policy Loopback Processing Mode is enabled.
  • Duplicate, conflicting GPO settings are minimized – e.g. Group Policy Loopback Processing Mode is sometimes enabled in several GPOs.
    • Run Group Policy Results to show the actual GPO settings that applied to a specific session – compare with design
  • Lockdown GPO applies to non-administrators that log into VDA machines. Lockdown GPO doesn’t apply to administrators.
  • Remote Desktop Session Host (RDSH) session timeouts (idle, disconnect) are configured in a Microsoft GPO.
  • AppLocker or similar prevents users from running unauthorized executables (e.g. ransomware).
  • Initial application configuration is automated using group policy – e.g. auto configure application database connections, remove first time usage prompts.
  • Group Policy changes are tested in separate Test GPOs and separate Test VDAs before applying to production.
  • Monitoring tool shows group policy processing duration during logon.

Citrix Policies

  • Citrix Policies are configured in a Group Policy Object, not in Citrix Studio – a GPO can apply to multiple Citrix Virtual Apps and Desktops (CVAD) farms in multiple datacenters. Citrix Studio is single farm only.
    • Citrix Policies are not configured in both Citrix Studio and Group Policy – avoids confusion over which setting wins
    • If configured in Citrix Studio, and if multiple farms/sites, then Citrix Policy settings are identical in all farms/sites.
  • Citrix Group Policy Management plug-in on GPMC machines is same version included with CVAD ISO.
  • Unfiltered policy is on the bottom of the list (lowest priority) – most specific filters on top, least specific filters on bottom.
  • Client drive mapping, client clipboard, client printing, drag and drop, and client USB are disabled when connecting from external (e.g. SmartAccess) – only enabled by exception.
  • Client printing is set to Use Universal Print Driver only – avoids installing print drivers on VDA machines.
  • Audio is set to Medium quality – High Quality uses more bandwidth than Medium Quality.
  • Time zone redirection is configured in both Citrix Policy and RDSH Microsoft Group Policy.
  • For HDX Insight, ICA Round-Trip Time policy is enabled.
  • Visual quality and video codec settings are not modified from the defaults.
    • Legacy Graphics Mode is disabled.
  • Adaptive Transport (EDT) is enabled – it’s default disabled in 7.15. MTU might need to be decreased.
    • MtuDiscovery is enabled on the VDAs. MtuDiscovery requires VDAs version 1912 and newer.
  • Session Reliability is not disabled.
  • RDSH Session Timers are configured in Microsoft GPO, not Citrix Policy – Citrix Policy setting description shows if setting applies to Server OS or not.

Citrix Workspace Environment Management (WEM)

  • Prefer Group Policies over WEM – WEM requires extra infrastructure, extra learning, extra administration, and extra support. Some WEM user settings are per-machine (per configuration set) only. WEM can’t replace group policies since there’s currently no .admx support.
    • Citrix Profile Management and Microsoft Folder Redirection are configured using Microsoft Group Policy, not WEM – Group Policies are well known. WEM is proprietary to Citrix and requires WEM skills to troubleshoot.
  • WEM is within two versions of the latest – there’s no LTSR version of WEM.
    • WEM Consoles and WEM Agents match WEM Server version.
  • Multiple load balanced WEM Servers for High Availability.
    • If multiple WEM servers are on the same hypervisor cluster, then Hypervisor anti-affinity is configured for the multiple WEM servers.
    • WEM Agents point to WEM Server load balanced FQDN, not individual server.
    • WEM Console points to single WEM Server, not load balanced FQDN.
  • WEM Brokers are close the VDAs – WEM configuration can be exported/imported into WEM implementations in multiple data centers.
  • WEM Database is hosted on an AlwaysOn Availability Group or other Highly Available SQL solution.
    • SQL database is backed up. SQL database recovery is documented and tested.
  • In WEM 1909+, Infrastructure Service Enable performance tuning for Windows Communication Framework is enabled and set to the number of concurrent WEM Agents that will be connected to this one WEM server. Maximum value is 3000.
  • Antivirus exclusions are configured for Citrix WEM.
  • WEM .admx group policy template in SYSVOL > PolicyDefinitions is updated whenever WEM Servers are updated.
  • Settings are in WEM, or Group Policy, but not both – helps troubleshooting. Reduces confusion.
  • Bypass ie4uinit Check is enabled (Advanced Settings > Service Options) – for faster logons.
  • Drive mappings and printer mappings are moved to WEM and processed asynchronously (Advanced Settings > Agent Options).
  • Check Application Existence is enabled (Advanced Settings > Agent Options) – doesn’t create shortcut unless application exists
  • CPU Optimization is enabled – Memory management trades memory for disk; which is cheaper? Process exclusions might be needed.
    • In WEM 1909 and newer, CPU Spike Protection = Auto instead of Customize.
  • Fast logoff is enabled.
  • Unused action types are disabled from processing (Advanced Settings > Main Configuration) – speeds up logons.
  • Run Once enabled for Actions and scenarios that support it – speeds up logons.
  • WEM Agent Offline mode is enabled.
  • Computer startup script refreshes WEM Agent cache on each VDA reboot.
    • Script has correct Agent installation path and correct service name since they changed in 1909 and newer.
  • WEM Logs are reviewed for problems – enable debug logging. Look for Active Directory timeouts.
  • WEM Server performance is monitored for metric thresholds and future capacity issues.
  • WEM Server recovery is documented and tested.

Citrix Profile Management and Folder Redirection

  • No mandatory profiles on Windows 10 – benchmarks show slower performance.
  • Profile Management is configured in Group Policy, not Citrix Policy or Citrix WEM – Group Policy is the most reliable and most well-known option.
  • Profile file share:
    • File server is close to the VDAs – users log into VDAs that are closest to the file server (aka home site).
    • File share is highly available.
    • Caching is disabled on the file share.
    • No DFS multi-master replication. Single target only – neither Citrix nor Microsoft support merge replication.
    • Profiles are backed up and/or replicated. Recovery process is documented and tested.
    • Different profile folders for different operating system versions and/or different Delivery Groups.
    • NTFS permissions of individual user folders in the file share only grant access to the one user – no Users, no Domain Users, and no Authenticated Users.
    • Use TreeSize or similar to see profile size – adjust profile exclusions if too big.
    • Antivirus is not slowing down profile file transfer performance – time how long it takes to copy a profile folder to the local machine.
    • File servers are monitored for performance issues, including disk latency and free disk space.
  • Profile Management .admx file in SYSVOL > PolicyDefinitions matches the VDA version (or date).
  • Profile Management logs are stored on UNC share instead of local C: drive, especially if the VDAs are non-persistent.
    • Only Domain Computers have Modify permission to the Logs share – Users don’t need any permission.
  • Profile Management logs contain at least a few days of logons – if only a few minutes, then too much information is being logged and Log Settings GPO setting should be modified.
  • Profile streaming is enabled – speeds up logons.
  • Active Write Back is disabled – places extra load on file servers for not much benefit.
  • Customer Experience Improvement Program is disabled.
  • Locally cached profiles are deleted at logoff from RDSH machines that don’t reboot often.
  • No Start Menu roaming issues – might need ResetCache registry value.
  • Microsoft FSLogix is implemented for Outlook Search roaming – better than UPM’s Outlook search roaming.

Folder Redirection:

  • Folder Redirection is configured in Microsoft GPO settings, not in Citrix Profile Management settings – Microsoft GPO configuration is most reliable, most known, and can migrate existing files.
  • No AppData redirection – slows down applications.
  • “Grant the user exclusive rights” option is unchecked – allows administrators to access redirected profile folders.
  • Folder Redirection file share:
    • File share is highly available.
    • No DFS multi-master replication. Single target only – neither Citrix nor Microsoft support merge replication.
    • Redirected Folders are backed up and/or replicated. Recovery process is documented and tested.
    • NTFS permissions of individual user folders in the file share only grant access to the one user – no Users, no Domain Users, and no Authenticated Users.
    • Antivirus is not slowing down folder redirection performance.
    • File servers are monitored for performance issues, including disk latency and free disk space.

Home Directories:

  • File server is close to the VDAs – users log into VDAs that are closest to the file server (aka home site).
  • File share is highly available.
  • No DFS multi-master replication. Single target only – neither Citrix nor Microsoft support merge replication.
  • Home Directories are backed up and/or replicated. Recovery process is documented and tested.
  • NTFS permissions of individual user folders in the file share only grant access to the one user – no Users, no Domain Users, and no Authenticated Users.
  • Antivirus is not slowing down file transfer performance – time how long it takes to copy a Home Directory folder to the local machine.
  • File servers are monitored for performance issues, including disk latency and free disk space.

Endpoint Devices

  • Prefer Windows 10 endpoints over thin clients – thin clients don’t support all Citrix functionality (e.g. local printing, browser content redirection). ThinKiosk can lock down Windows 10 endpoints.
  • Newest VDAs and newest Workspace apps have better WAN performance than LTSR 7.15.
  • Browser Content Redirection offloads video (e.g. YouTube) from VDAs to endpoint – reduces CPU consumption in the data center.
  • Workspace app is periodically (e.g., twice per year) updated by endpoint management team.
  • Workspace app (aka Receiver) ADMX templates in SYSVOL > PolicyDefinitions are current.
  • Group Policy adds StoreFront URL to Local Intranet zone.
  • Group Policy pushes StoreFront URL to Workspace app – so users don’t have to enter the URL.
  • Pass-through authentication is enabled for internal PCs – SSON Configuration Checker can verify proper configuration.
  • HKCU\Software\Citrix\Dazzle\Sites\store\type shows DS, not PNA – store added as Delivery Services (StoreFront), not PNAgent (legacy).
  • Internal Beacon at HKEY_CURRENT_USER\SOFTWARE\Citrix\Receiver\SR\Store\#\Beacons\Internal\Addr0 is internally reachable only – not reachable externally.
  • External Beacon at HKEY_CURRENT_USER\SOFTWARE\Citrix\Receiver\SR\Store\#\Beacons\External does not include citrix.com or ping.citrix.com.
  • EDT protocol (aka Adaptive Transport) is enabled. Director shows HDX protocol as UDP – Remote Display Analyzer can analyze problems with the graphics/codec.
  • HDX Insight: Newest VDAs and newest Workspace app have less AppFlow CPU impact on ADC than LTSR 7.15 VDAs.
  • Google Chrome detects Workspace app properly, especially through Gateway – requires Gateway ADC to able to resolve StoreFront Base URL to StoreFront IP
    • Chrome 77+ has receiver://* added to URL whitelist so the user isn’t prompted to open Workspace app

Citrix NetScaler ADC

  • NetScaler ADC Admins have subscribed to Citrix Security Bulletins at https://support.citrix.com/user/alerts
  • NetScaler ADC firmware build is patched for vulnerabilities as of Jan 16, 2024.
  • NetScaler ADC firmware updates are tested on separate test ADC appliances before performed in production. Test ADC appliances have test VIPs – application owners can test their VIPs on test ADC before firmware is upgraded in production.
  • NetScaler ADC VPX on vSphere:
    • NetScaler VPX NICs are VMXNET3, not E1000.
    • NetScaler is version that supports vSphere version.
    • DRS Cluster Anti-affinity is configured for the VPX appliances in the same HA pair.
    • CPU/Memory are reserved at hypervisor. If not reserved at hypervisor, then Yield CPU is not enabled so that VPX can reserve CPU itself.
  • NetScaler ADC license does not expire any time soon – check date inside license files at /nsconfig/license
    • ADM Pooled Licensing has license alerts enabled for email notifications.
  • Physical NetScaler ADC:
    • LOM port is connected and configured.
    • LOM nsroot password is changed from the default.
    • No VLAN is connected to multiple active interfaces unless those interfaces are in a port channel.
  • ADC nsroot password is not nsroot. nsroot password is managed by Privileged Identity Management tool. Admins don’t use nsroot to login.
  • Policies are Advanced Expressions instead of Classic Expressions. (source = CTX296948)
  • Management authentication is configured for external authentication server, typically LDAP.
    • LDAP is load balanced instead of multiple LDAP Policies to individual LDAP servers – avoids premature account lockout.
    • LDAP is encrypted: LDAPS on port 636.
    • LDAP Bind account is a service account – not a regular user whose password expires.
    • LDAP Search Filter only allows ADC Admins Active Directory Group to authenticate.
  • If TACACS, firmware is 12.0 build 57 or newer to prevent TACACS Accounting from blocking AAA.
  • nsroot account has external authentication disabled.
  • No local NetScaler ADC accounts except nsroot.
  • NTP and Time Zone are configured.
  • Syslog is configured to send logs to external SIEM, especially if ADC is performing authentication.
  • SNMP Traps are sent to Citrix ADM appliance.
    • Thresholds are configured for CPU and Memory alarms.
  • Customer Experience Improvement Program (CUXIP) is disabled.
  • Recommended TCP Profile Settings are configured.
  • Drop Invalid HTTP requests is enabled in HTTP global settings.
  • Secure Access Only is enabled on all NSIPs and all management-enabled SNIPs – check both nodes of High Availability pair.
    • Management certificate has no certificate errors.
  • Networking:
    • NetScaler ADC VLANs only have one interface (or one channel) – Best Practices at Citrix Docs.
    • If Dedicated Management Network, Policy Based Routes (PBR) are configured for NSIP reply traffic and NSIP-initiated traffic.
    • Unused network interfaces are disabled.
    • ADC instance is connected to only one security zone – if connected to multiple security zones, then a firewall is bypassed.
    • Default route should be Internet facing, or a data VLAN – not NSIP VLAN.
    • Only one default route – extra default routes can come from HA pairing or hardware migration.
  • Root DNS server address “h.root-servers.net” is set to 198.97.190.53 – might be old address due to older firmware
  • Unused NetScaler ADC configurations are removed – unused server objects, unused policies, etc.
  • Citrix ADM monitors and backs up the ADC appliances.
  • ADC Dashboard shows that CPU, Memory, and Throughput have not exceeded appliance capacity or appliance licensing.
  • /var/core and /var/crash do not have recent crash dumps.

NetScaler ADC High Availability Pair

  • Firmware build is identical on both nodes.
  • Installed Licenses are identical on both nodes.
  • NTP and time zones are configured on both appliances – Configuration node shows System Time.
  • Unused interfaces are disabled.
  • HA is synchronizing without error.
  • Both HA nodes are set to ENABLED – not STAYPRIMARY and/or STAYSECONDARY.
  • Fail-safe mode is enabled.
  • “show ha node” shows heartbeats across all interfaces – no “interfaces on which heartbeats are not seen”.
  • High Availability failover has been tested, including RADIUS authentication, which might come from a different source IP.
  • Sync VLAN configured to enable ISSU on ADC 13.0+

NetScaler ADC SDX

  • LOM port is connected and configured.
    • LOM nsroot password is not nsroot.
  • No hardware problems shown on SDX SVM dashboard page.
  • SDX firmware is current – should be same or newer than the VPX firmware.
  • SDX SVM nsroot password is not nsroot. nsroot password is complex. Admins don’t use nsroot to login.
  • Management authentication is configured for external authentication server, typically LDAP.
    • LDAP is load balanced instead of multiple LDAP Policies to individual LDAP servers – avoids premature account lockout.
    • LDAP is encrypted: LDAPS on port 636.
    • LDAP Bind account is a service account – not a regular user whose password expires
      • LDAP Bind account should be a regular domain account, not a Domain Admin.
      • LDAP Bind account should be dedicated to LDAP Bind and not used for anything else.
    • LDAP Search Filter only allows ADC SDX Admins Active Directory Group to authenticate.
  • No local accounts except nsroot.
  • No certificate errors when accessing SVM management using htttps.
    • HTTPS is forced in System Settings – HTTP is not allowed.
  • Multiple DNS servers are configured in Networking Configuration – initial setup only asks for one DNS server.
  • Channels are created at SDX SVM instead of inside VPX instances.
  • NTP is configured and enabled.
  • Syslog is configured.
  • SNMP traps are sent to Citrix ADM.
  • The number of SDX instance licenses installed matches what’s owned at https://citrix.com/account
  • SDX SVM Backups are configured with External Transfer – or download periodically – or ADM.
  • VPX Instances:
    • Platinum Edition license is assigned to instances.
    • SSL Chips are assigned to VPX instances.
    • All SDX hardware is allocated to VPX instances – If not, why not?
    • Production instances typically have Dedicated CPU cores. Test/Dev instances typically have Shared CPU.
    • VLANs are specified inside VPX instances instead of at instance properties on SDX Management Service – avoids reboot if you need to change the VLAN configuration.
    • No VMACs in instance interface settings.

NetScaler ADC Load Balancing and SSL

  • Load Balancing configurations are documented.
  • Monitors do more than just telnet – e.g. LDAP monitor performs LDAP query.
    • LDAP monitor bind account uses service account, not domain admin.
    • LDAP monitor is filtered to cn=builtin – to reduce result size.
    • RADIUS monitor looks for response code 2 or 3.
  • If multiple Virtual Servers for multiple ports on the same VIP, configure Persistency Group – e.g. Horizon Load Balancing.
  • Rewrite policies remove web server header information (Server, X-Powered-By, etc.)
  • SSL Labs SSL Server Test shows A or A+ grade for all Internet-facing SSL vServers.
  • Redirect Virtual Servers are UP (Responder method) instead of DOWN (Backup URL method).
  • Custom (non-default) ciphers are bound to every SSL Virtual Server – see Citrix Networking SSL / TLS Best Practices.
  • SSL v3 and TLS v1.0 are disabled on every SSL Virtual Server.
  • SSL Renegotiation is set to NONSECURE: configured globally, or in SSL Profiles (including default profile).
  • Root certificate is not linked to intermediate certificate.
  • Certificates are not expired.
  • SSL Services do not have “-TLS11 disabled” or “-TLS12 disabled” – might be disabled from older firmware.
  • ADM alerts ADC administrators when certificates are soon to expire.
  • ADM Analytics is enabled for the HTTP Virtual Servers.
    • ADM Web Insight is viewed.
  • Bot Management (13.0 build 41+) and/or Web App Firewall are configured if ADC Premium Edition.
    • ADM Security Insight is enabled and viewed.

Citrix NetScaler ADM

  • NetScaler ADM exists and manages all ADC appliances.
    • Prompt credentials for instance login is enabled in ADM System Settings – if ADM does Single Sign-on to instances, then all instance changes are logged as nsroot instead of ADM user.
  • NetScaler ADM firmware version is current.
    • ADM Agents and DR nodes have same firmware version as ADM – check /var/mps/log/install_state
  • Two DNS servers are configured in ADM Network Configuration – initial setup only asks for one DNS server.
  • Two NetScaler ADM appliances in High Availability mode with Floating IP – provides redundancy.
  • Every High Availability node and DR node has same disk size.
  • NetScaler ADM nsroot password is not nsroot. nsroot password is complex. Admins don’t use nsroot to login.
  • NetScaler ADM Agent nsrecover password has been changed from the default.
  • Management authentication is configured for external authentication server, typically LDAP.
    • LDAP is load balanced instead of multiple LDAP Policies to individual LDAP servers – avoids premature account lockout.
    • LDAP is encrypted: LDAPS on port 636.
    • LDAP Bind account is a service account – not a regular user whose password expires.
    • LDAP Search Filter only allows ADM Admins Active Directory Group to authenticate.
  • No local accounts except nsroot.
  • No certificate errors when accessing ADM management using htttps.
    • HTTPS is forced in System Settings – HTTP is not allowed
  • Time zone is configured.
  • NTP is configured and enabled.
  • NetScaler ADM Database is not full. Sufficient disk space.
  • Sufficient ADM CPU/Memory – verify at System > Statistics or System > Deployment.
  • All features enabled – verify at System > Administration > Disable or enable features
  • SSL Dashboard alert notifications are enabled to warn of upcoming certificate expiration.
  • Tasks page notifications are enabled
  • Event Rules are configured to email ADC administrators of Critical or Major ADC alarms.
  • NetScaler ADC Instance Backup settings on NetScaler ADM:
    • Number of NetScaler ADC instance backups retained is sufficient for restoring from history.
    • NetScaler ADC Backups are transferred to external SFTP, SCP, or FTP server.
    • NetScaler ADC Restore process is documented and tested.
  • VIP Licensing:
    • Installed license count on NetScaler ADM matches the licenses owned at https://citrix.com/account.
    • Licenses are assigned to Virtual Servers that need Analytics (e.g. HDX Insight) or Applications tab.
    • AppFlow/Insight is enabled on NetScaler Citrix Gateway and HTTP Virtual Servers.
    • TCP 5563 opened from SNIP to ADM for Metrics Collector.
    • License expiration notifications are enabled.
  • Private IP Blocks are configured for geo mapping of ADC instances and Analytics sessions.
  • Analytics Thresholds are configured – e.g., ICA Latency threshold.
  • Session Reliability on HA Failover is enabled on ADC instances in ICA Parameters – if not enabled, then sessions drop on failover.
  • ADM HDX Insight is linked to Director Premium Edition using https protocol, not http protocol.

NetScaler Citrix Gateway ICA Proxy

NetScaler Citrix Gateway Virtual Server:

  • SSL Labs SSL Server Test shows A or A+ when it scans the Gateway external FQDN.
  • If ICA Only is unchecked on the Gateway Virtual Server, then System > Licenses shows sufficient Maximum Citrix Gateway Users Allowed.
  • NetScaler Citrix Gateway Virtual Server Maximum Users is 0, which means unlimited.
  • TCP Profile is configured with Recommended TCP Profile Settings.
  • DTLS is enabled on the Virtual Server for EDT protocol.
    • UDP ports are open on firewall from Internet and to VDAs.
    • Director Session Details shows HDX protocol as UDP.
  • ICA Connections shows port 2598 (Session Reliability enabled), not 1494.
  • NetScaler Citrix Gateway communication to StoreFront is https protocol, not http.
  • NetScaler Citrix Gateway communication to StoreFront is load balanced to multiple StoreFront servers – not a single StoreFront server.
  • STAs on NetScaler Citrix Gateway matches StoreFront configuration.
  • Policies are Advanced Expressions instead of Classic Expressions. (source = CTX296948)
  • If EPA is used for SmartAccess, then Endpoint Analysis Libraries are updated.

NetScaler Citrix Gateway Authentication:

  • Encrypted LDAP:
    • LDAP is load balanced instead of multiple LDAP Policies to individual LDAP servers – avoids premature account lockout.
    • LDAP is encrypted: LDAPS on port 636.
    • LDAP Bind account is a service account – not a regular user whose password expires.
    • LDAP Search Filter only allows authorized remote users in an Active Directory group to authenticate.
  • Two-factor authentication – RADIUS:
    • For Workspace app, password fields are swapped.
    • Both factors are required to login. Can’t bypass second factor.
    • RADIUS tested from both High Availability nodes (perform failover).
  • SAML Authentication:
    • Prefer RADIUS over SAML so that ADC will have access to the user’s password to facilitate Single Sign-on to the VDA machines.
    • If SAML response does not provide user’s password, then Federated Authentication Service (FAS) is deployed .
    • For Workspace app support of SAML, SAML is configured in nFactor (AAA), not Gateway – requires ADC 12.1 and newest Workspace app.
    • SAML iDP Signing certificate is not expired. ADC administrators know how to update the Signing certificate.
    • relaystateRule configured in SAML Action to prevent session hijack – see https://support.citrix.com/article/CTX316577
  • Native OTP:
    • OTP Active Directory attribute is encrypted.
  • nFactor login fields are encrypted.

NetScaler ADC GSLB

  • If a DNS name resolves to multiple IP addresses, then the DNS name should be GSLB-enabled for automatic failover.
  • DNS Records are delegated to two or more ADC ADNS services, usually in separate data centers.
    • NS records and SOA records are added to ADC for delegated domain names and/or delegated sub zones.
  • All NetScaler ADC nodes that have ADNS listeners for the same DNS name have identical GSLB configuration.
  • Public GSLB Services have monitors that verify remote Internet connectivity – don’t give out IP if users can’t reach it.
  • Separate NetScaler ADC appliances for public DNS and internal DNS – If both are on one appliance, then how are the DNS configurations separated?
  • RPC nodes for Metric Exchange Protocol (MEP) should have Secure enabled.
  • Firewall should only allow the MEP endpoints to communicate over 3009 – don’t open to whole Internet.
  • If Static Proximity:
    • Static Proximity database is current.
    • GSLB Services show correct geo location.
    • Custom Entries are added for internal subnets.
  • If DNS Views, DNS Views are configured on all GSLB Services – if GSLB Service doesn’t have a DNS View, then that GSLB Service might not function correctly.
  • If Active/Active GSLB load balancing, then site persistence is functioning correctly.
  • DNS security options are configured to prevent ADNS Denial of Service.

Global Server Load Balancing (GSLB) – NetScaler 10.5

Last Modified: Nov 6, 2020 @ 7:11 am

Navigation

This article was written for NetScaler 10.5.

GSLB Planning

GSLB is nothing more than DNS. GSLB is not in the data path. GSLB receives a DNS query and GSLB sends back an IP address, which is exactly how a DNS server works. However, GSLB can do some things that DNS servers can’t do:

  • Don’t give out an IP address unless it is UP (monitoring)
    • If active IP address is down, give out the passive IP address (active/passive)
  • Give out the IP address that is closest to the user (proximity load balancing)
  • Give out different IPs for internal vs external (DNS View)

GSLB is only useful if you have a single DNS name that could resolve to two or more IP addresses. If there’s only one IP address then use normal DNS instead.

Citrix Blog Post Global Server Load Balancing: Part 1 explains how DNS queries work and how GSLB fits in.

Citrix has a good DNS and GSLB Primer.

When configuring GSLB, don’t forget to ask “where is the data?”. For XenApp/XenDesktop, DFS multi-master replication of user profiles is not supported so configure “home” sites for users. More information at Citrix Blog Post XenDesktop, GSLB & DR – Everything you think you know is probably wrong!

GSLB can be enabled both externally and internally. For external GSLB, configure it on the DMZ NetScaler appliances and expose it to the Internet. For internal GSLB, configure it on internal NetScaler appliances. Note: Each NetScaler appliance only has one DNS table so if you try to use one NetScaler for both public and internal then be aware that external users can query for internal GSLB-enabled DNS names.

For internal and external GSLB of the same DNS name on the same appliance, you can use DNS Policies and DNS Views to return different IP addresses depending on where users are connecting from. Citrix CTX130163 How to Configure a GSLB Setup for Internal and External Users Using the Same Host Name.

However, GSLB monitoring applies to the entire GSLB Service so it would take down both internal and external GSLB. If you need different GSLB monitoring for internal and external of the same DNS name, try CNAME:

  • External citrix.company.com:
    • Configure NetScaler GSLB for citrix.company.com.
    • On public DNS, delegate citrix.company.com to the NetScaler DMZ ADNS services.
  • Internal citrix.company.com:
    • Configure NetScaler GSLB for citrixinternal.company.com or something like that.
    • On internal DNS, create CNAME for citrix.company.com to citrixinternal.company.com
    • On internal DNS, delegate citrixinternal.company.com to NetScaler internal ADNS services.

Some IP Addresses are needed on each NetScaler pair:

  • ADNS IP: An IP that will listen for ADNS queries. For external, create a public IP for the ADNS IP and open UDP 53 so Internet-based DNS servers can access it. This can be an existing SNIP on the appliance.
  • GSLB Site IP / MEP IP: A GSLB Site IP that will be used for NetScaler-to-NetScaler communication, which is called MEP or Metric Exchange Protocol. The IP for ADNS can also be used for MEP / GSLB Site.
    • RPC Source IP: RPC traffic is sourced from a SNIP, even if this is different than the GSLB Site IP. It’s less confusing if you use a SNIP as the GSLB Site IP.
    • Public IP: For external GSLB, create public IPs that are NAT’d to the GSLB Site IPs. The same public IP used for ADNS can also be used for MEP. MEP should be routed across the Internet so NetScaler can determine if the remote datacenter has Internet connectivity or not.
    • MEP Port: Open port TCP 3009 between the two NetScaler GSLB Site IPs. Make sure only the NetScalers can access this port on the other NetScaler. Do not allow any other device on the Internet to access this port. This port is encrypted.
    • GSLB Sync Ports: To use GSLB Configuration Sync, open ports TCP 22 and TCP 3008 from the NSIP (management IP) to the remote public IP that is NAT’d to the GSLB Site IP. The GSLB Sync command runs a script in BSD shell and thus NSIP is always the Source IP.
  • DNS Queries: The purpose of GSLB is to resolve a DNS name to one of several potential IP addresses. These IP addresses are usually public IPs that are NAT’d to existing Load Balancing, SSL Offload, Content Switching, or NetScaler Gateway VIPs in each datacenter.
  • IP Summary: In summary, for external GSLB, you will need a minimum of two public IPs in each datacenter:
    • One public IP that is NAT’d to the IP that is used for ADNS and MEP (GSLB Site IP). You only need one IP for ADNS / MEP no matter how many GSLB names are configured. MEP (GSLB Site IP) can be a different IP, if desired.
    • One public IP that is NAT’d to a Load Balancing, SSL Offload, Content Switching, or NetScaler Gateway VIP.
    • If you GSLB-enable multiple DNS names, each DNS name usually resolves to different IPs. This usually means that you will need additional public IPs NAT’d to additional VIPs.

ADNS

  1. Identify a SNIP that you will use for MEP and ADNS.
  2. Configure a public IP for the SNIP and configure firewall rules.
  3. If you wish to use GSLB configuration sync then management access (SSH) must be enabled on this SNIP.
  4. On the left, expand Traffic Management > Load Balancing, and click Services.
  5. On the right, click Add.
  6. Name the service ADNS or similar.
  7. In the IP Address field, enter an appliance SNIP.
  8. In the Protocol field, select ADNS. Then click OK.
  9. Scroll down and click Done.
  10. On the left of the console, expand System, expand Network, and then click IPs.
  11. On the right, you’ll see the SNIP is now marked as the ADNS svc IP. If you don’t see this yet, click the Refresh icon.
  12. Repeat on the other appliance in the other datacenter.
  13. Your NetScaler appliances are now DNS servers.

Metric Exchange Protocol

  1. Open the firewall rules for Metric Exchange Protocol. You can use the same SNIP and same public IP used for ADNS.
  2. On the left, expand Traffic Management, right-click GSLB, and enable the feature.
  3. Expand GSLB, and click Sites.
  4. On the right, click Add.
  5. Add the local site first. Enter a descriptive name and in the Site Type drop-down, select LOCAL.
  6. In the Site IP Address field, enter an appliance SNIP. This SNIP must be in the default Traffic Domain. The NetScaler listens for GSLB MEP traffic on this IP.
  7. For Internet-routed GSLB MEP, in the Public IP Address field, enter the public IP that is NAT’d to the GSLB Site IP (SNIP). For internal GSLB, there is no need to enter anything in the Public IP field. Click Create.
  8. Go back to System > Network > IPs, and verify that the IP is now marked as a GSLB site IP. If you don’t see it yet, click the Refresh button.
  9. If you want to use the GSLB Sync Config feature, then you’ll need to edit the GSLB site IP, and enable Management Access.
  10. Scroll down and enable Management Access. SSH is all you need.
  11. Go to the other appliance and also create the local GSLB site using its GSLB site IP and its public IP that is NAT’d to the GSLB site IP.
  12. In System > Network > IPs on the remote appliance, there should now be a GSLB site IP. This could be a SNIP. If GSLB Sync is desired, enable management access on that IP and ensure SSH is enabled.
  13. Now on each appliance add another GSLB Site, which will be the remote GSLB site.
  14. Enter a descriptive name and select REMOTE as the Site Type.
  15. Enter the other appliance’s actual GSLB Site IP as configured on the appliance. This IP does not need to be reachable.
  16. In the Public IP field, enter the public IP that is NAT’d to the GSLB Site IP on the other appliance. For MEP, TCP 3009 must be open from the local GSLB Site IP to the remote public Site IP. For GSLB sync, TCP 22, and TCP 3008 must be open from the local NSIP to the remote public Site IP. Click Create.
  17. Repeat on the other appliance.
  18. MEP will not function yet since the NetScaler appliances are currently configured to communicate unencrypted on TCP 3011. To fix that, on the left, expand System, expand Network, and click RPC.
  19. On the right, edit the new RPC address (the other site’s GSLB Site IP), and click Edit.
  20. On the bottom, check the box next to Secure, and click OK.
  21. Do the same thing on the other appliance.
  22. If you go back to GSLB > Sites, you should see it as active.

GSLB Services

GSLB Services represent the IP addresses that are returned in DNS Responses. DNS Query = DNS name. DNS Response = IP address.

GSLB should be configured identically on both NetScalers. Since you have no control over which NetScaler will receive the DNS query, you must ensure that both NetScalers are giving out the same DNS responses.

Create the same GSLB Services on both NetScalers:.

  1. Start on the appliance in the primary data center. This appliance should already have a traffic Virtual Server (NetScaler Gateway, Load Balancing, or Content Switching) for the DNS name that you are trying to GSLB enable.
  2. On the left, expand Traffic Management > GSLB, and click Services.

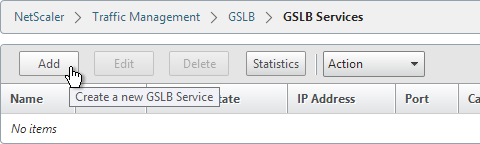

  3. On the right, click Add.
  4. The service name should be similar to the DNS name that you are trying to GSLB. Include the site name in the service name.
  5. Select the LOCAL Site.
  6. On the bottom part, select Virtual Servers, and then select a Virtual Server that is already defined on this appliance. It should automatically fill in the other fields. If you see a message asking if you wish to create a service object, click Yes.
  7. Scroll up and make sure the Service Type is SSL. It’s annoying that NetScaler doesn’t set this drop-down correctly.
  8. The Public IP field contains the actual IP Address that the GSLB ADNS service will hand out. Make sure this Public IP is user accessible. It doesn’t even need to be a NetScaler owned IP.
  9. Scroll down and click OK.
  10. If the GSLB Service IP is a VIP on the local appliance, then GSLB will simply use the state of the local traffic Virtual Server (Load Balancing, Content Switching, or Gateway). If the GSLB Service IP is a VIP on a remote appliance, then GSLB will use MEP to ask the other appliance for the state of the remote traffic Virtual Server. In both cases, there’s no need to bind a monitor to the GSLB Service.
  11. However, you can also bind monitors directly to the GSLB Service. Here are some reasons for doing so:
    • If the GSLB Service IP is a NetScaler-owned traffic VIP, but the monitors bound the traffic Virtual Server are not the same ones you want to use for GSLB. When you bind monitors to the GSLB Services, the monitors bound to the traffic Virtual Server are ignored.
    • If the GSLB Service IP is in a non-default Traffic Domain, then you will need to attach a monitor since GSLB cannot determine the state of Virtual Servers in non-default Traffic Domains.
    • If the GSLB Service IP is not hosted on a NetScaler, then only GSLB Service monitors can determine if the Service IP is up or not.
  12. If you intend to do GSLB active/active and if you need site persistence then you can configure your GSLB Services to use Connection Proxy or HTTP Redirect. See Citrix Blog Post Troubleshooting GSLB Persistence with Fiddler for more details.
  13. Click Done.
  14. On the other datacenter NetScaler, create a GSLB Service.
  15. Select the REMOTE site that is hosting the service.
  16. Since the service is on a different appliance and not this one, you won’t be able to select it using the Virtual Servers option. Instead, select New Server.
  17. For the Server IP, enter the actual VIP configured on the other appliance. This local NetScaler will use GSLB MEP to communicate with the remote NetScaler to find a traffic Virtual Server with this VIP. The remote NetScaler respond if the remote traffic Virtual Server is up or not. The remote Server IP configured here does not need to be directly reachable by this local appliance. If the Server IP is not owned by either NetScaler, then you will need to bind monitors to your GSLB Service.
  18. In the Public IP field, enter the IP address that will be handed out to clients. This is the IP address that users will use to connect to the service. For Public DNS, you enter a Public IP that is usually NAT’d to the traffic VIP. For internal DNS, the Public IP and the Server IP are usually the same.
  19. Scroll up and change the Service Type to match the Virtual Server defined on the other appliance..
  20. Click OK.
  21. Just like the other appliance, you can also configure Site Persistence and GSLB Service Monitors. Click Done when done.
  22. Create more GSLB Services, one for each traffic VIP. GSLB is useless if there’s only one IP address to return. You should have multiple IP addresses (VIPs) through which a web service (e.g. NetScaler Gateway) can be accessed. Each of these VIPs is typically in different datacenters, or on different Internet circuits. The mapping between DNS name and IP addresses is configured in the GSLB vServer, as detailed in the next section.

GSLB Virtual Server

The GSLB Virtual Server is the entity that the DNS name is bound to. GSLB vServer then gives out the IP address of one of the GSLB Services that is bound to it.

Configure the GSLB vServer identically on both appliances:

  1. On the left, expand Traffic Management > GLSB and click Virtual Servers.
  2. On the right, click Add.
  3. Give the GSLB vServer a descriptive name. For active/active, you can name it the same as your DNS name. For active/passive, you will create two GSLB Virtual Servers, one for each datacenter, so include Active or Passive in the Virtual Server name.
  4. Make sure Service Type is set correctly.
  5. If you intend to bind multiple GSLB Services to this GSLB vServer, then you can optionally check the box for Send all “active” service IPs. By default, GSLB only gives out one IP per DNS query. This checkbox always returns all IPs, but the IPs are ordered based on the GSLB Load Balancing Method and/or GSLB Persistence.
  6. Click OK.
  7. On the right, in the Advanced column, click Service.
  8. On the left, click where it says No GSLB Virtual Server to GSLBService Binding.
  9. Click the arrow next to Click to select.
  10. Check the box next to an existing GSLB Service and click OK. If your GSLB is active/passive then only bind one service.
  11. If your GSLB is active/active then bind multiple GSLB Services. Also, you’d probably need to configure GSLB persistence (Source IP or cookies).
  12. Click Bind.
  13. On the right, in the Advanced column, click Domains.
  14. On the left, click where it says No GSLB Virtual Server Domain Binding.
  15. Enter the FQDN that GSLB will resolve.
  16. If this GSLB is active/passive, there are two options:
    • Use the Backup IP field to specify the IP address that will be handed out if the primary NetScaler is inaccessible or if the VIP on the primary appliance is marked down for any reason.
    • Or, create a second GSLB Virtual Server that has the passive GSLB service bound to it. Don’t bind a Domain to the second GSLB Virtual Server. Then edit the Active GSLB Virtual Server and use the Backup Virtual Server section to select the second GSLB Virtual Server.
  17. Click Bind.
  18. If this is active/active GSLB, you can edit the Method section to enable Static Proximity. This assumes the Geo Location database has already been installed on the appliance.
  19. Also for active/active, if you don’t want to use Cookie-based persistence, then you can use the Persistence section to configure Source IP persistence.
  20. Click Done.
  21. If you are configuring active/passive using the backup GSLB Virtual Server method, create a second GSLB Virtual Server that has the passive GSLB service bound to it. Don’t bind a Domain to the second GSLB Virtual Server. Then edit the Active GSLB Virtual Server and use the Backup Virtual Server section to select the second GSLB Virtual Server.

  22. On the left, if you expand Traffic Management > DNS, expand Records, and click Address Records, you’ll see a new DNS record for the GSLB domain you just configured. Notice it is marked as GSLB DOMAIN.

  23. Create identical GSLB Virtual Servers on the other NetScaler appliance. Both NetScalers must be configured identically.
  24. You can also synchronize the GSLB configuration with the remote appliance by going to Traffic Management > GSLB.
  25. On the right, click Sychronize configuration on remote sites.
  26. Use the check boxes on the top, if desired. It’s usually a good idea to Preview the changes before applying them. Then click OK to begin synchronization.

Some notes regarding GSLB Sync:

  • It’s probably more reliable to do it from the CLI by running sync gslb config and one of the config options (e.g. -preview).
  • GSLB Sync runs as a script on the BSD shell and thus always uses the NSIP as the source IP.
  • GSLB Sync connects to the remote GSLB Site IP on TCP 3008 (if RPC is Secure) and TCP 22.

Test GSLB

  1. To test GSLB, simply point nslookup to the ADNS services and submit a DNS query for one of the DNS names bound to a GSLB vServer. Run the query multiple times to make sure you’re getting the response you expect.
  2. Both NetScaler ADNS services should be giving the same response.
  3. To simulate a failure, disable the traffic Virtual Server.
  4. Then the responses should change. Verify on both ADNS services.

  5. Re-enable the traffic Virtual Server, and the responses should return to normal.


DNS Delegation

If you are enabling GSLB for the domain gateway.corp.com, you’ll need to create a delegation at the server that is hosting the corp.com DNS zone. For public GSLB, you need to edit the public DNS zone for corp.com.

DNS Delegation instructions will vary depending on what product host’s the public DNS zone. This section details Microsoft DNS, but it should be similar in BIND or web-based DNS products.

There are two ways to delegate GSLB-enabled DNS names to NetScaler ADNS:

  • Delegate the individual record. For example, delegate gateway.corp.com to the two NetScaler ADNS services (gslb1.corp.com and gslb2.corp.com).
  • Delegate an entire subzone. For example, delegate the subzone gslb.corp.com to the two NetScaler ADNS services. Then create a CNAME record in the parent DNS zone for gateway.corp.com that is aliased to gateway.gslb.corp.com. When DNS queries make it to NetScaler, they will be for gateway.gslb.corp.com and thus gateway.gslb.corp.com needs to be bound to the GSLB Virtual Server instead of gateway.corp.com. For additional delegations, simply create more CNAME records.

This section covers the first method – delegating an individual DNS record:

  1. Run DNS Manager.
  2. First, create Host Records pointing to the ADNS services running on the NetScalers in each data center. These host records for ADNS are used for all GSLB delegations no matter how many GSLB delegations you need to create.
  3. The first Host record is gslb1 (or similar) and should point to the ADNS service (Public IP) on one of the NetScaler appliances.
  4. The second Host record is gslb2 and should point to the ADNS Service (public IP) on the other NetScaler appliance.
  5. If you currently have a host record for the service that you are delegating to GSLB (gateway.corp.com), delete it.
  6. Right-click the parent DNS zone and click New Delegation.
  7. In the Welcome to the New Delegation Wizard page, click Next.
  8. In the Delegated Domain Name page, enter the left part of the DNS record that you are delegating (e.g. gateway). Click Next.
  9. In the Name Servers page, click Add.
  10. This is where you specify gslb1.corp.com and gslb2.corp.com. Enter gslb1.corp.com and click Resolve. Then click OK. If you see a message about the server not being authoritative for the zone, ignore the message.
  11. Then click Add to add the other GSLB ADNS server.
  12. Once both ADNS servers are added to the list, click Next.
  13. In the Completing the New Delegation Wizard page, click Finish.
  14. If you run nslookup against your Microsoft DNS server, it will respond with Non-authoritative answer. That’s because it got the response from NetScaler and not from itself.

That’s all there is to it. Your NetScalers are now DNS servers. For active/passive, the NetScalers will hand out the public IP address of the primary data center. When the primary data center is not accessible, GSLB will hand out the GSLB Service IP bound to the Backup GSLB vServer.

Geo Location Database

If you want to use DNS Policies or Static Proximity GSLB Load Balancing or Responders based on user’s location, import a geo location database. Common free databases are:

For IP2Location, see the blog post Add IP2Location Database as NetScaler’s Location File for instructions on how to import.

For GeoLite Legacy:

  1. Download the GeoLite Country database CSV from http://dev.maxmind.com/geoip/legacy/geolite/.
  2. Note: GeoLite City is actually two files that must be merged as detailed at Citrix Blog Post GeoLite City as NetScaler location database. GeoLite Country doesn’t need any preparation.
  3. Upload the extracted database (.csv file) to the NetScaler appliance at /var/netscaler/locdb.

To import the Geo database:

  1. In the NetScaler GUI, on the left, expand AppExpert, expand Location, and click Static Database (IPv4).
  2. On the right, click Add.
  3. Browse to the location database file.
  4. In the Location Format field, select geoip-country and click Create.
  5. When you open a GSLB Service, the public IP will be translated to a location.

You can use the Geo locations in a DNS Policy, static proximity GSLB Load Balancing, or Responders:

Horizon View Load Balancing – NetScaler 10.5

Last Modified: Nov 6, 2020 @ 7:11 am

Navigation

Use this procedure to load balance Horizon View Connection Servers, Horizon View Security Servers, and/or VMware Access Points.

Overview

A typical Horizon View Installation will have at least six connection servers:

  • Two Internal View Connection Servers – these need to be load balanced on an internal VIP
  • Two DMZ View Security Servers – these need to be load balanced on a DMZ VIP
  • The DMZ View Security Servers are paired with two additional internal View Connection Servers. There is no need to load balance the internal Paired Connection Servers. However, we do need to monitor them.

If you are using Access Points instead of Security Servers then you’ll have the following machines. Server pairing is not necessary.

  • Two Internal View Connection Servers – these need to be load balanced on an internal VIP
  • Two DMZ VMware Access Point appliances – these need to be load balanced on a DMZ VIP

This topic is focused on traditional View Security Servers but could be easily adapted for Access Point appliances. The difference is that with Access Points there are no paired servers and thus there’s no need to monitor the paired servers. The VIP ports are identical for both solutions.

Monitors

Users connect to Horizon View Connection Server, Horizon View Security Server, and Access Point appliances on four ports: TCP 443, TCP 8443, TCP 4172, and UDP 4172. Users will initially connect to port 443 and then be redirected to one of the other ports on the same server initially used for the 443 connection. If one of the ports is down, the entire server should be removed from load balancing. To facilitate this, create a monitor for each of the ports (except UDP 4172).

  1. On the left, expand Traffic Management, expand Load Balancing, and click Monitors.
  2. On the right, click Add.
  3. Name it View-PCOIP or similar.
  4. Change the Type drop-down to TCP.
  5. In the Destination Port field, enter 4172.
  6. Scroll down and click Create.
  7. On the right, click Add.
  8. Name it View-Blast or similar.
  9. Change the Type drop-down to TCP.
  10. In the Destination Port field, enter 8443.
  11. Scroll down and click Create.
  12. On the right, click Add.
  13. Name it View-SSL or similar.
  14. Change the Type drop-down to HTTP-ECV.
  15. In the Destination Port field, enter 443.
  16. Scroll down and check the box next to Secure.
  17. On the Special Parameters tab, in the Send String section, enter GET /broker/xml/
  18. In the Receive String section, enter clientlaunch-default.
  19. Scroll down and click Create.
  20. View Security Servers are paired with View Connection Servers. If the paired View Connection Server is down, then we should probably stop sending users to the corresponding View Security Server. Let’s create a monitor that has a specific IP address in it. Right-click the existing View-SSL or View-SSLAdv monitor and click Add.

  21. Note: this step does not apply to Access Points. Normally a monitor does not have any Destination IP defined, which means it uses the IP address of the service that it is bound to. However, we intend to bind this monitor to the View Security Server but we need it to monitor the paired View Connection Server, which is a different IP address. Type in the IP address of the paired View Connection Server. Then rename the monitor so it includes the View Connection Server name.
  22. Note: this step does not apply to Access Points. Since we are embedding an IP address into the monitor, you have to create a separate monitor for each paired View Connection Server IP.

Servers

Create Server Objects for the DMZ Security Servers and the internal non-paired Connection Servers. Do not create Server Objects for the Paired Connection Servers.

  1. On the left, expand Traffic Management, expand Load Balancing, and click Servers.
  2. On the right, click Add.
  3. Enter a descriptive server name, usually it matches the actual server name.
  4. Enter the IP address of the View Connection Server or View Security Server.
  5. Enter comments to describe the server. Click Create.
  6. Continue adding View Connection Servers or View Security Servers.

Services

If deploying View Security Servers, create Services Objects for the DMZ Security Servers and the internal non-paired Connection Servers. Do not create Services Objects for the Paired Connection Servers.

If deploying Access Points, create Services Objects for the DMZ Access Point appliances and the internal Connection Servers

Each connection server and security server needs separate Service objects. Each Security Server listens on multiple port numbers and thus there will be multiple Services Objects for each Security Server.

For Internal Connection Servers (not the paired servers), load balancing monitoring is very simple:

  • Create services for SSL 443
  • To verify server availability, monitor port TCP 443 on the same server.
  • If tunneling is disabled then internal users connect directly to View Agents and UDP/TCP 4172 and TCP 8443 are not used on Internal Connection Servers. There’s no need to create services and monitors for these ports.

Security Servers and Access Points are more complex:

  • The PCoIP Secure Gateway and HTML Blast Secure Gateway are typically enabled on Security Servers and Access Points but they are not typically enabled on internal Connection Servers.
  • All traffic initially connects on TCP 443. For Security Servers and Access Points, the clients then connect to UDP 4172 or TCP 8443 on the same Security Server. If UDP 4172 or TCP 8443 are down, then you probably want to make sure TCP 443 is also brought down.
  • Each Security Server is paired with an internal Connection Server. If the internal Connection Server is down then the Security Server should be taken down. This does not apply to Access Points.
  • To accommodate these failure scenarios, bind multiple monitors to the View Security Server or Access Point load balancing Services. If any of the monitors fails then NetScaler will no longer forward traffic to 443 on that particular server.

If you have two View Security Servers or Access Points named VSS01 and VSS02, the configuration is summarized as follows (scroll down for detailed configuration):

  • Service = VSS01, Protocol = SSL_BRIDGE, Port = 443
    • Monitors = PCoIP (TCP 4172), SSL (443), and Blast (8443)
    • Monitor = SSL (443) on paired View Connection Server VCS01. This monitor is not needed on Access Points.
  • Service = VSS02, Protocol = SSL_BRIDGE, Port = 443
    • Monitors = PCoIP (TCP 4172), SSL (443), and Blast (8443)
    • Monitor = SSL (443) on paired View Connection Server VCS02. This monitor is not needed on Access Points.
  • Service = VSS01, Protocol = TCP, Port = 4172
    • Monitor = PCoIP (TCP 4172)
  • Service = VSS02, Protocol = TCP, Port = 4172
    • Monitor = PCoIP (TCP 4172)
  • Service = VSS01, Protocol = UDP, Port = 4172
    • Monitor = PCoIP (TCP 4172)
  • Service = VSS02, Protocol = UDP, Port = 4172
    • Monitor = PCoIP (TCP 4172)
  • Service = VSS01, Protocol = SSL_BRIDGE, Port = 8443
    • Monitor = Blast (8443)
  • Service = VSS02, Protocol = SSL_BRIDGE, Port = 8443
    • Monitor = Blast (8443)

If you are not using HTML Blast then you can skip 8443. If you are not using PCoIP Secure Gateway, then you can skip the 4172 ports.

  1. On the left, expand Traffic Management, expand Load Balancing, and click Services.
  2. On the right, click Add.
  3. Give the Service a descriptive name (e.g. svc-VSS01-SSL).
  4. Change the selection to Existing Server and select the View Security Server or internal (non-paired) View Connection Server you created earlier.
  5. Change the Protocol to SSL_BRIDGE and click OK.
  6. On the left, in the Monitors section, click where it says 1 Service to Load Balancing Monitor Binding.
  7. Click Add Binding.
  8. Click the arrow next to Click to select.
  9. Select the View-SSL monitor and click OK.
  10. Then click Bind.
  11. If this is a View Security Server, add monitors for PCoIP and HTML Blast. If any of those services fails, then 443 needs to be marked DOWN.

  12. If this is a View Security Server, also add a monitor that has the IP address of the paired View Connection Server. If the paired View Connection Server is down, then stop sending connections to this View Security Server.
  13. The Last Response should indicate Success. If you bound multiple monitors to the Service, then the member will only be UP if all monitors succeed. There’s a refresh button on the top-right. Click Close when done.
  14. Then click Done.
  15. Right-click the first service and click Add.
  16. Change the name to match the second View Server.
  17. Use the Server drop-down to select to the second View Server.
  18. The remaining configuration is identical to the first server. Click OK.
  19. You will need to configure the monitors again. They will be identical to the first server except for the monitoring of the paired View Connection Server. Click Done when done.

  20. Add another Service for PCoIP on TCP 4172.
    1. Name = svc-VSS01-PCoIPTCP or similar.
    2. Server = Existing Server, select the first View Server.
    3. Protocol = TCP
    4. Port = 4172.
    5. Monitors = View-PCoIP. You can add the other monitors if desired.
  21. Repeat for the 2nd View Security Server.
  22. Add another Service for PCoIP on UDP 4172.
    1. Name = svc-VSS01-PCoIPUDP or similar.
    2. Existing Server = first View Server
    3. Protocol = UDP
    4. Port = 4172.
    5. Monitors = View-PCoIP. You can add the other monitors if desired.
  23. Repeat for the 2nd View Server.
  24. Add another Service for HTML Blast on SSL_BRIDGE 8443.
    1. Name = svc-VSS01-HTMLBlast or similar.
    2. Existing Server = the first View Server
    3. Protocol =
    4. Port = 8443.
    5. Monitors = View-Blast. You can add the other monitors if desired.
  25. Repeat for the 2nd View Server.
  26. The eight services should look something like this:
  27. Repeat these instructions to add the internal (non-paired) View Connection Servers except that you only need to add services for SSL_BRIDGE 443 and only need monitoring for 443.

Load Balancing Virtual Servers

Create separate load balancers for internal and DMZ.

  • Internal load balances the two non-paired Internal View Connections Servers.
  • DMZ load balances the two View Security Servers or Access Point appliances.

The paired View Connection Servers do not need to be load balanced.

For the internal View Connection Servers you only need a load balancer for SSL_BRIDGE 443. If tunneling is disabled then you don’t need load balancers for the other ports (UDP/TCP 4172 and SSL_BRIDGE 8443).

However, tunneling is enabled on the View Security Servers and Access Point appliances so you will need separate load balancers for each port number. Here is a summary of the Virtual Servers:

  • Virtual Server on SSL_BRIDGE 443 – bind both View SSL Services.
  • Virtual Server on UDP 4172 – bind both View PCoIPUDP Services.
  • Virtual Server on TCP 4172 – bind both View PCoIPTCP Services.
  • Virtual Server on SSL_BRIDGE 8443 – bind both View Blast Services.

Do the following to create the Virtual Servers:

  1. On the left, under Traffic Management > Load Balancing, click Virtual Servers.

  2. On the right click Add.
  3. Name it View-SSL-LB or similar.
  4. Change the Protocol to SSL_BRIDGE.
  5. Specify a new internal VIP. This one VIP will be used for all of the Virtual Servers.
  6. Enter 443 as the Port.
  7. Click OK.
  8. On the left, in the Services and Service Groups section, click where it says No Load Balancing Virtual Server Service Binding.
  9. Click the arrow next to Click to select.
  10. Select the two View-SSL Services and click OK.
  11. Click Bind.
  12. Click OK.
  13. Then click Done. Persistency will be configured later.
  14. If this is a View Security Server or Access Point or if tunneling is enabled then create another Load Balancing Virtual Server for PCoIP UDP 4172:
    1. Same VIP as the 443 Load Balancer.
    2. Protocol = UDP, Port = 4172
    3. Services = the PCoIP UDP Services.
  15. If this is a View Security Server or Access Point or if tunneling is enabled then create another Load Balancing Virtual Server for PCoIP TCP 4172:
    1. Same VIP as the 443 Load Balancer.
    2. Protocol = TCP, Port = 4172
    3. Services = the PCoIP TCP Services.
  16. If this is a View Security Server or Access Point or if tunneling is enabled then create another Load Balancing Virtual Server for HTML Blast SSL_BRIDGE 8443:
    1. Same VIP as the 443 Load Balancer.
    2. Protocol = SSL_BRIDGE, Port = 8443
    3. Services = the HTML Blast SSL_BRIDGE Services.
  17. This gives you four Virtual Servers on the same VIP but different protocols and port numbers.

Persistency Group

For Security Servers and Access Point appliances, users will first connect to SSL_BRIDGE 443 and be load balanced. Subsequent connections to the other port numbers must go to the same load balanced server. Create a Persistency Group to facilitate this.

If tunneling is disabled on the internal View Connection Servers then you probably only have one load balancer for those servers and thus you could configure persistence directly on that one load balancer instead of creating a Persistency Group. However, since the View Security Servers have multiple load balancers then you need to bind them together in a Persistency Group.

  1. On the left, under Traffic Management, expand Load Balancing and click Persistency Groups.
  2. On the right, click Add.
  3. Give the Persistency Group a name (e.g. View).
  4. Change the Persistence to SOURCEIP.
  5. Enter a timeout that is equal to or greater than the timeout in View Administrator, which defaults to 10 hours (600 minutes).
  6. In the Virtual Server Name section, click Add.
  7. Move all four View Security Server / Access Point Load Balancing Virtual Servers to the right. Click Create.

Horizon View Configuration

  1. On the View Security Servers (or View Connection Servers), request a certificate that matches the FQDN that resolves to the Load Balancing VIP.
  2. Make sure the private key is exportable.
  3. Set the Friendly Name to vdm and restart the View Security Server services.
  4. In View Administrator, go to View Configuration > Servers.
  5. On the right, switch to the Security Servers tab.
  6. Highlight a server and click Edit.
  7. Change the URLs to the FQDN that resolves to the load balancing VIP.
  8. Change the PCoIP URL to the VIP. For View Security Servers, this is typically a public IP that is NAT’d to the DMZ Load Balancing VIP.

Web Interface Load Balancing – NetScaler 10.5

Last Modified: Nov 6, 2020 @ 6:56 am

Navigation

This procedure is only needed if you are running Web Interface instead of StoreFront.

Monitor

  1. On the left, expand Traffic Management, expand Load Balancing, and click Monitors.
  2. On the right, click Add.
  3. Name it Web Interface or similar.
  4. Change the Type drop-down to CITRIX-WEB-INTERFACE.
  5. If you will use SSL to communicate with the Web Interface servers, then scroll down and check the box next to Secure.
  6. Switch to the Special Parameters tab.
  7. In the Site Path field, enter the path of a XenApp Web site (e.g. /Citrix/XenApp/).
    • Make sure you include the slash (/) on the end of the path or else the monitor won’t work.
    • The site path is also case sensitive.
  8. Click Create.

Servers

  1. On the left, expand Traffic Management, expand Load Balancing, and click Servers.
  2. On the right, click Add.
  3. Enter a descriptive server name, usually it matches the actual server name.
  4. Enter the IP address of the server.
  5. Enter comments to describe the server. Click Create.
  6. Continue adding Web Interface servers.

Service Group

  1. On the left, expand Traffic Management, expand Load Balancing, and click Service Groups.

  2. On the right, click Add.
  3. Give the Service Group a descriptive name (e.g. svcgrp-WI-SSL).
  4. Change the Protocol to HTTP or SSL. If the protocol is SSL, ensure the Web Interface Monitor has Secure enabled.
  5. Scroll down and click OK.
  6. On the right, under Advanced, click Members.
  7. Click where it says No Service Group Member.
  8. If you did not create server objects then enter the IP address of a Web Interface Server. If you previously created a server object then change the selection to Server Based and select the server object.
  9. Enter 80 or 443 as the port. Then click Create.

  10. To add more members, click where it says 1 Service Group Member and then click Add. Click Close when done.

  11. On the right, under Advanced, click Monitors.
  12. On the left, in the Monitors section, click where it says No Service Group to Monitor Binding.
  13. Click the arrow next to Click to select.
  14. Select the Web Interface monitor and click OK.
  15. Then click Bind.
  16. To verify if the monitor is working or not, on the left, in the Service Group Members section, click the Service Group Members line.
  17. Highlight a member and click Monitor Details.
  18. The Last Reponse should indicate that Set-Cookie header was found. Click Close twice when done.
  19. Then click Done.

Load Balancing Virtual Server

  1. Create or install a certificate that will be used by the SSL Virtual Server. This certificate must match the DNS name for the load balanced Web Interface servers.
  2. On the left, under Traffic Management > Load Balancing, click Virtual Servers.

  3. On the right click Add.
  4. Name it Web Interface-SSL-LB or similar.
  5. Change the Protocol to SSL.
  6. Specify a new internal VIP.
  7. Enter 443 as the Port.
  8. Click OK.
  9. On the left, in the Services and Service Groups section, click where it says No Load Balancing Virtual Server ServiceGroup Binding.
  10. Click the arrow next to Click to select.
  11. Select your Web Interface Service Group and click OK.
  12. Click Bind.
  13. Click OK.
  14. Click where it says No Server Certificate.
  15. Click the arrow next to Click to select.
  16. Select the certificate for this Web Interface Load Balancing Virtual Server and click OK.
  17. Click Bind.
  18. Click OK.
  19. On the right, in the Advanced column, click Persistence.
  20. Select SOURCEIP persistence. Note: COOKIEINSERT also works with Web Interface. However, it doesn’t work with StoreFront.
  21. Set the timeout to match the timeout of Web Interface.
  22. The IPv4 Netmask should default to 32 bits.
  23. Click OK.
  24. On the right, in the Advanced column, click SSL Parameters.
  25. If the NetScaler communicates with the Web Interface servers using HTTP (aka SSL Offload), at the top right, check the box next to SSL Redirect. Otherwise the Web Interface page will never display.
  26. Uncheck the box next to SSLv3 and click OK. This removes a security vulnerability.
  27. NetScaler VPX 10.5 build 57 and newer lets you enable TLSv11 and TLSv12. See Citrix Blog – Scoring an A+ at SSLlabs.com with Citrix NetScaler – 2016 update. Click OK.
  28. On the right, in the Advanced column, click SSL Ciphers.
  29. On the left, in the SSL Ciphers section, remove all RC4 ciphers. See Anton van Pelt Make your NetScaler SSL VIPs more secure (Updated) for recommended ciphers.

    You can also run the following from the command line as described by Heikki Harsunen in Citrix Discussions:
    unbind ssl vserver <oursslvservername> -cipherName DEFAULTbind ssl vserver <oursslvservername> -cipherName TLS1-ECDHE-RSA-AES256-SHAbind ssl vserver <oursslvservername> -cipherName TLS1-ECDHE-RSA-AES128-SHAbind ssl vserver <oursslvservername> -cipherName TLS1-ECDHE-RSA-DES-CBC3-SHAbind ssl vserver <oursslvservername> -cipherName TLS1-AES-256-CBC-SHAbind ssl vserver <oursslvservername> -cipherName TLS1-AES-128-CBC-SHAbind ssl vserver <oursslvservername> -cipherName TLS1-DHE-RSA-AES-256-CBC-SHAbind ssl vserver <oursslvservername> -cipherName TLS1-DHE-RSA-AES-128-CBC-SHA

  30. Click OK.
  31. Then click Done.
  32. Consider enabling Strict Transport Security by creating a rewrite policy and binding it to this SSL Virtual Server. See Anton van Pelt Make your NetScaler SSL VIPs more secure (Updated).

SSL Redirect – Down vServer Method

If you created an SSL Virtual Server that only listens on SSL 443, users must enter https:// when navigating to the website. To make it easier for the users, create another load balancing Virtual Server on the same VIP that listens on HTTP 80 and then redirects the user’s browser to reconnect on SSL 443.

  1. On the left, under Traffic Management > Load Balancing, click Virtual Servers.

  2. On the right, find the SSL Virtual Server you’ve already created, right-click it and click Add. Doing it this way copies some of the data from the already created Virtual Server.
  3. Change the name to indicate that this new Virtual Server is an SSL Redirect.
  4. Change the Protocol to HTTP on Port 80.
  5. The IP Address should already be filled in. It must match the original SSL Virtual Server. Click OK.
  6. Don’t select any services. This vServer must intentionally be marked down so the redirect will take effect. Click OK.
  7. On the right, in the Advanced column, click Protection.
  8. In the Redirect URL field, enter the full URL including https://. For example: https://citrix.company.com/Citrix/XenApp. Click OK.
  9. Click Done.
  10. When you view the SSL redirect Virtual Server in the list, it will have a state of DOWN. That’s OK. The Port 80 Virtual Server must be DOWN for the redirect to work.

RADIUS Load Balancing – NetScaler 10.5

Last Modified: Nov 6, 2020 @ 6:54 am

Navigation

RADIUS Load Balancing Overview

Two-factor authentication to NetScaler Gateway requires the RADIUS protocol to be enabled on the two-factor authentication product.

On your RADIUS servers you’ll need to add the NetScaler appliances as RADIUS Clients. When NetScaler uses a local (same appliance) load balanced Virtual Server for RADIUS authentication, the traffic is sourced from the NetScaler SNIP (Subnet IP). When NetScaler uses a direct connection to a RADIUS Server without going through a load balancing Virtual Server, or uses a remote (different appliance) Load Balancing Virtual Server, the traffic is sourced from the NetScaler NSIP (NetScaler IP). Use the correct IP(s) when adding the NetScaler appliances as RADIUS Clients. And adjust firewall rules accordingly.

For High Availability pairs, if you locally load balance RADIUS, then you only need to add the SNIP as a RADIUS Client since the SNIP floats between the two appliances. However, if you are not locally load balancing RADIUS, then you’ll need to add the NSIP of both appliances as RADIUS Clients. Use the same RADIUS Secret for both appliances.

When load balancing RADIUS, you’ll want a monitor that verifies that the RADIUS server is functional. The RADIUS monitor will login to the RADIUS server and look for a response. You will need static credentials that the RADIUS monitor can use to login to the RADIUS server.

If you don’t want your monitor to login to RADIUS, then the only other monitoring option is Ping. Adjust the firewall accordingly.

If you have RADIUS Servers in multiple datacenters, you can create multiple load balancing Virtual Servers and cascade them so that the local RADIUS Servers are used first and if they’re not available then the Virtual Server fails over to RADIUS Servers in remote datacenters.

RADIUS Monitor

The RADIUS Monitor attempts to successfully log into the RADIUS server. For RSA, create an account on RSA with the following parameters as mentioned by Jonathan Pitre:

  • Setup a user with a fixed passcode in your RSA console.
  • Ensure you login with that user at least once to the RSA console because you’ll be asked to change it the first time.
  • There is no need to assign a token to your monitor user as long as you are using a fixed passcode. You don’t want to waste a token on a user just for monitoring.

Henny Louwers – Configure RSA RADIUS monitoring on NetScaler:

  1. In the NetScaler Configuration Utility, on the left under Traffic Management > Load Balancing, click Monitors.
  2. On the right, click Add.
  3. Name the monitor RSA or similar. Change the Type drop-down to RADIUS.
  4. On the Standard Parameters tab, you might have to increase the Response Time-out to 4.
  5. On the Special Parameters tab, enter valid RADIUS credentials. Make sure these credentials do not change or expire. For RSA, in the Password field, enter the fixed passcode.
  6. Also enter the RADIUS key configured on the RADIUS server for the NetScaler as RADIUS client.
  7. For Response Codes, add both 2 or 3. 2 means success while 3 indicates some kind of failure. Either result means that the RADIUS server is responding and thus is probably functional. But 2 is the ideal response.
  8. Click Create when done.
    add lb monitor RSA RADIUS -respCode 2-3 -userName ctxsvc -password Passw0rd -radKey Passw0rd -resptimeout 4

Servers

  1. On the left, expand Traffic Management, expand Load Balancing, and click Servers.
  2. On the right, click Add.
  3. Enter a descriptive server name; usually it matches the actual server name.
  4. Enter the IP address of the server.
  5. Enter comments to describe the server. Click Create.

    add server RSA01 192.168.123.13
    add server RSA02 192.168.123.14
  6. Continue adding RADIUS servers.

Service Groups

  1. On the left, expand Traffic Management, expand Load Balancing, and click Service Groups.
  2. On the right click Add.
  3. You will create one Service Group per datacenter. Enter a name reflecting the name of the datacenter.
  4. Change the Protocol to RADIUS.
  5. Click OK.
  6. On the right, in the Advanced column, click Members.
  7. On the left, in the Service Group Members section, click where it says No Service Group Member.
  8. If you did not create server objects then enter the IP address of a RADIUS Server in this datacenter. If you previously created a server object, then change the selection to Server Based, and select the server object.
  9. In the Port field, enter 1812 (RADIUS).
  10. Click Create.

  11. To add more members, in the Service Group Members section, click where it says 1 Service Group Member.
  12. Click Add to add another member. Click Close when done.
  13. On the right, in the Advanced column, click Monitors.
  14. On the left, in the Monitors section, click where it says No Service Group to Monitor Binding.
  15. Click the arrow next to Click  to select.
  16. Select your new RADIUS monitor, and click OK.
  17. Click Bind.
  18. To verify the member is up, click in the Service Group Members section.
  19. Highlight a member and click Monitor Details.
  20. It should say Radius response code 2 (or 3) received. Click OK.
  21. Click Done to finish creating the Service Group.

    add serviceGroup svcgrp-RSA RADIUS
    bind serviceGroup svcgrp-RSA RSA01 1812
    bind serviceGroup svcgrp-RSA -monitorName RSA
  22. The Service Group is displayed as UP.
  23. Add additional service groups for Radius servers in each data center.

Virtual Server

  1. On the left, expand Traffic Management, expand Load Balancing, and click Virtual Servers.

  2. On the right, click Add.
  3. Name it lbvip-RADIUS-HQ or similar. You will create one Virtual Server per datacenter so include the datacenter name.
  4. Change the Protocol drop-down to RADIUS.
  5. Enter a Virtual IP. This VIP cannot conflict with any other IP + Port already being used. You can use an existing VIP if the VIP is not already listening on UDP 1812.
  6. Enter 1812 as the Port. Click OK.
  7. In the Services and Service Groups section, click where it says No Load Balancing Virtual Server ServiceGroup Binding.
  8. Click the arrow next to Click to select.
  9. Select a previously created Service Group and click OK.
  10. Click Bind.
  11. Click OK.
  12. Configuring RADIUS Load Balancing with Persistence at Citrix Docs recommends Rule Based Load Balancing. On the right, in the Advanced Settings column, add the Method section.
  13. Change the Load Balancing Method to TOKEN.
  14. In the Expression field, enter UDP.RADIUS.USERNAME and click OK.
  15. Click Done to finish creating the Virtual Server.
  16. If you are configuring this RADIUS Load Balancer for more than just NetScaler Gateway, you can add another Load Balancer on port 1813 for RADIUS Accounting. Then you need a Persistency Group to tie the two load balancers together. See Configuring RADIUS Load Balancing with Persistence at Citrix Docs.
    add lb vserver lbvip-RSA RADIUS 10.2.2.210 1812 -persistenceType RULE -lbMethod TOKEN -rule CLIENT.UDP.RADIUS.USERNAME
    bind lb vserver lbvip-RSA svcgrp-RSA
  17. The new Virtual Server should show as Up.
  18. Create additional Virtual Servers for each datacenter. These additional Virtual Servers do not need a VIP so change the IP Address Type to Non Addressable. Only the first Virtual Server will be directly accessible.

    add lb vserver lbvip-RSA-Backup RADIUS 0.0.0.0 0 -persistenceType NONE -cltTimeout 120
  19. Notice that the additional datacenter Virtual Servers show up with an IP Address of 0.0.0.0 and port of 0.
  20. After you are done creating a Virtual Server for each datacenter, right-click the primary datacenter’s Virtual Server, and click Edit.
  21. On the right, in the Advanced column, click Protection.
  22. On the left, in the Protection section, change the Backup Virtual Server to one of the other datacenter Virtual Servers. If all of the services in this datacenter are DOWN, the backup Virtual Server will be used instead. You can cascade multiple Virtual Servers using this method. Click OK and Done.

    set lb vserver lbvip-RSA -backupVServer lbvip-RSA-Backup
  23. You may now use this Virtual IP in your RADIUS authentication policies for NetScaler Gateway or NetScaler management login.

StoreFront Load Balancing – NetScaler 10.5

Last Modified: Nov 6, 2020 @ 6:57 am

Navigation

Monitor

Note: This is a Perl monitor, which uses the NSIP as the source IP.

  1. On the left, expand Traffic Management, expand Load Balancing, and click Monitors.
  2. On the right, click Add.
  3. Name it StoreFront or similar.
  4. Change the Type drop-down to STOREFRONT.
  5. If you will use SSL to communicate with the StoreFront servers, then scroll down, and check the box next to Secure.
  6. Scroll up, and switch to the Special Parameters tab.
  7. In the Store Name field, enter the name of your store (e.g. Store).
  8. The other two checkboxes are not working with StoreFront 2.6. Click Create.

    add lb monitor StoreFront STOREFRONT -scriptName nssf.pl -dispatcherIP 127.0.0.1 -dispatcherPort 3013 -secure YES -storename Store

Servers

  1. On the left, expand Traffic Management, expand Load Balancing, and click Servers.
  2. On the right, click Add.
  3. Enter a descriptive server name, usually it matches the actual server name.
  4. Enter the IP address of the server.
  5. Enter comments to describe the server. Click Create.
  6. Continue adding StoreFront servers.

    add server SF01 10.2.2.57
    add server SF02 10.2.2.58

Service Group

  1. On the left, expand Traffic Management, expand Load Balancing, and click Service Groups.

  2. On the right, click Add.
  3. Give the Service Group a descriptive name (e.g. svcgrp-StoreFront-SSL).
  4. Change the Protocol to HTTP or SSL. If the protocol is SSL, ensure that StoreFront Monitor has Secure checked.
  5. Scroll down and click OK.
  6. On the right, under Advanced, click Members.
  7. Click where it says No Service Group Member.
  8. If you did not create server objects, then enter the IP address of a StoreFront Server. If you previously created a server object then change the selection to Server Based and select the server objects.
  9. Enter 80 or 443 as the port. Then click Create.

  10. To add more members, click where it says 1 Service Group Member and then click Add. Click Close when done.

  11. On the right, under Advanced, click Monitors.
  12. Click where it says No Service Group to Monitor Binding.
  13. Click the arrow next to Click to select.
  14. Select your StoreFront monitor, and click OK.
  15. Then click Bind.
  16. To verify that the monitor is working, on the left, in the Service Group Members section, click the Service Group Members line.
  17. Highlight a member, and click Monitor Details.
  18. The Last Reponse should be Success – Probe succeeded. Click Close twice.
  19. On the right, under Advanced, click Settings.
  20. Check the box for Client IP and enter X-Forwarded-For as the Header. Then click OK.
  21. Then click Done.

    add serviceGroup svcgrp-StoreFront-SSL SSL -maxClient 0 -maxReq 0 -cip ENABLED X-Forwarded-For

    bind serviceGroup svcgrp-StoreFront-SSL SF01 443
    bind serviceGroup svcgrp-StoreFront-SSL SF02 443
    bind serviceGroup svcgrp-StoreFront-SSL -monitorName StoreFront
  22. If the Service Group is http and you don’t have certificates installed on your StoreFront servers (aka SSL Offload), then you’ll need to enable loopback in StoreFront:
    1. In StoreFront 3.5, you enable it in the GUI console.
    2. In StoreFront 3.0, run the following commands on the StoreFront 3.0 servers as detailed at Citrix Blog Post What’s New in StoreFront 3.0.
      & "C:\Program Files\Citrix\Receiver StoreFront\Scripts\ImportModules.ps1"

      Set-DSLoopback -SiteId 1 -VirtualPath /Citrix/StoreWeb -Loopback OnUsingHttp

Load Balancing Virtual Server

  1. Create or install a certificate that will be used by the SSL Offload Virtual Server. This certificate must match the DNS name for the load balanced StoreFront servers. For email discovery in Citrix Receiver, the certificate must either be a wildcard (*.corp.local) or have a subject alternative name for discoverReceiver.domain.com (domain.com = email address suffix)
  2. On the left, under Traffic Management > Load Balancing, click Virtual Servers.

  3. On the right click Add.
  4. Name it lbvip-StoreFront-SSL or similar.
  5. Change the Protocol to SSL.
  6. Specify a new internal VIP.
  7. Enter 443 as the Port.
  8. Click OK.

    add lb vserver lbvip-StoreFront-SSL SSL 10.2.2.221 443 -persistenceType SOURCEIP -timeout 60
  9. On the left, in the Services and Service Groups section, click where it says No Load Balancing Virtual Server ServiceGroup Binding.
  10. Click the arrow next to Click to select.
  11. Select your StoreFront Service Group, and click OK.
  12. Click Bind.

    bind lb vserver lbvip-StoreFront-SSL svcgrp-StoreFront-SSL
  13. Click OK.
  14. Click where it says No Server Certificate.
  15. Click the arrow next to Click to select.
  16. Select the certificate for this StoreFront Load Balancing Virtual Server, and click OK.
  17. Click Bind.

    bind ssl vserver lbvip-StoreFront-SSL -certkeyName WildCorpCom
  18. On the right, in the Advanced column, click Persistence.
  19. On the left, in the Persistence section, select SOURCEIP.  Do NOT use COOKIEINSERT persistence or Android devices will not function correctly.
  20. Set the timeout to match the timeout of Receiver for Web.
  21. The IPv4 Netmask should default to 32 bits.
  22. Click OK.
  23. On the right, in the Advanced column, click SSL Parameters.
  24. If the NetScaler communicates with the StoreFront servers using HTTP (aka SSL Offload), at the top right, check the box next to SSL Redirect. Otherwise the Receiver for Web page will never display.
  25. Uncheck the box next to SSLv3.
    set ssl vserver lbvip-StoreFront-SSL -sslRedirect ENABLED -ssl3 DISABLED
  26. NetScaler VPX 10.5 build 57 and newer lets you enable TLSv11 and TLSv12. Click OK.
  27. Perform other normal SSL vServer configuration including: disable SSLv3, bind a Modern Cipher Group, and enable Strict Transport Security.
    bind ssl vserver lbvip-StoreFront-SSL -certkeyName MyCert

    set ssl vserver lbvip-StoreFront-SSL -ssl3 DISABLED -tls11 ENABLED -tls12 ENABLED

    unbind ssl vserver lbvip-StoreFront-SSL -cipherName ALL

    bind ssl vserver lbvip-StoreFront-SSL -cipherName Modern

    bind ssl vserver lbvip-StoreFront-SSL -eccCurveName ALL

    bind lb vserver lbvip-StoreFront-SSL -policyName insert_STS_header -priority 100 -gotoPriorityExpression END -type RESPONSE
  28. Then click Done.

SSL Redirect – Down vServer Method

If you created an SSL Offload Virtual Server that only listens on SSL 443, users must enter https:// when navigating to the website. To make it easier for the users, create another load balancing Virtual Server on the same VIP that listens on HTTP 80 and then redirects the user’s browser to reconnect on SSL 443.

This procedure details the Down vServer method of performing an SSL redirect. An alternative is to use the Responder method.

  1. On the left, under Traffic Management > Load Balancing, click Virtual Servers.

  2. On the right, find the SSL Virtual Server you’ve already created, right-click it, and click Add. Doing it this way copies some of the data from the already created Virtual Server.
  3. Change the name to indicate that this new Virtual Server is an SSL Redirect.
  4. Change the Protocol to HTTP on Port 80.
  5. The IP Address should already be filled in. It must match the original SSL Virtual Server.
  6. Click OK.
  7. Don’t select any services. This vServer must intentionally be marked down so the redirect will take effect. Click Continue.
  8. On the right, in the Advanced column, click Protection.
  9. In the Redirect URL field, enter the full URL including https://. For example: https://storefront.company.com/Citrix/StoreWeb. Click OK.
  10. Click Done.

    add lb vserver lbvip-storefront-HTTP-SSLRedirect HTTP 10.2.2.201 80 -redirectURL "https://storefront.corp.com"
  11. When you view the SSL redirect Virtual Server in the list, it will have a state of DOWN. That’s OK. The Port 80 Virtual Server must be DOWN for the redirect to work.

StoreFront Base URL

  1. Create a DNS Host record that resolves to the new VIP.
  2. The DNS name for StoreFront load balancing must be different than the DNS name for NetScaler Gateway. Unless you are following the Single FQDN procedure.

  3. In the Citrix StoreFront console, right-click Server Group and click Change Base URL.
  4. Enter the new Base URL in https://storefront.corp.com format. This must match the certificate that is installed on the load balancer. Click OK.

Subscription Replication Load Balancing

If you have multiple StoreFront clusters (separate datacenters), you might want to replicate subscriptions between them. StoreFront subscription replication uses TCP port 808. To provide High Availability for this service, load balance TCP port 808 on the StoreFront servers. See Configure subscription synchronization at Citrix Docs for more information.

  1. On the left, expand Traffic Management, expand Load Balancing, and click Service Groups.

  2. On the right, click Add.
  3. Give the Service Group a descriptive name (e.g. svcgrp-StoreFront-SubRepl).
  4. Change the Protocol to TCP.
  5. Scroll down and click OK.
  6. On the right, under Advanced, click Members.
  7. Click where it says No Service Group Member.
  8. In the IP Address field, enter the IP address of a back-end StoreFront server.
  9. Enter 808 as the port. Then click Create.

  10. To add more members,  on the left, in the Service Group Members section, click where it says 1 Service Group Member.
  11. Click Add to add a member. Click Close when done.
  12. On the right, under Advanced, click Monitors.
  13. Click where it says No Service Group to Monitor Binding.
  14. Click the arrow next to Click to select.
  15. Select the tcp monitor, and click OK.
  16. Then click Bind, and click Done.

    add serviceGroup svcgrp-StoreFront-FavRepl TCP
    bind serviceGroup svcgrp-StoreFront-FavRepl SF01 808
    bind serviceGroup svcgrp-StoreFront-FavRepl SF02 808
  17. On the left, under Traffic Management > Load Balancing, click Virtual Servers.

  18. On the right click Add.
  19. Name it lbvip-StoreFront-SubRepl or similar.
  20. Change the Protocol to TCP.
  21. Specify the same VIP that you used for SSL Load Balancing of StoreFront.
  22. Enter 808 as the Port.
  23. Click Continue.
  24. Click where it says No Load Balancing Virtual Server ServiceGroup Binding.
  25. Click the arrow next to Click to select.
  26. Select your StoreFront Subscription Replication Service Group, and click OK.
  27. Click Bind.
  28. Click OK.
  29. On the right, in the Advanced column, click Persistence.
  30. Select SOURCEIP persistence.
  31. Set the timeout to 5 minutes.
  32. The IPv4 Netmask should default to 32 bits.
  33. Click OK.
  34. Then click Done.

    add lb vserver lbvip-StoreFront-FavRepl TCP 10.2.2.201 808 -persistenceType SOURCEIP -timeout 5

    bind lb vserver lbvip-StoreFront-FavRepl svcgrp-SF-FavRepl

Related Posts

Domain Controller (LDAPS) Load Balancing – NetScaler 10.5

Last Modified: Nov 7, 2020 @ 6:34 am

Navigation

Overview

If you plan to use LDAP (Active Directory) for NetScaler Gateway or NetScaler management authentication, load balance the Domain Controllers that are used for authentication.

An alternative to load balancing is to configure NetScaler Gateway and NetScaler management authentication with multiple authentication policies, each pointing to a single Domain Controller. However, NetScaler will try each authentication policy until it finds one that works. If the user enters a wrong password and if you have three authentication policies pointing to different Domain Controllers in the same domain then three different failure attempts will be recorded thus causing premature account lockout. Use Load Balancing to avoid this behavior.

This page details LDAPS, aka Secure LDAP. This protocol requires certificates to be installed on the Domain Controllers. When a user’s password expires, Active Directory does not allow password changes over clear text LDAP so LDAPS must be used instead. Make sure you have certificates installed on your Domain Controllers. The easiest way to accomplish that is to deploy a Microsoft Certificate Authority. Once that’s done the Domain Controllers will request certificates automatically.

An ldaps monitor can be used to verify that the Domain Controller is functional. The ldaps monitor will login as an account, perform an LDAP query, and look for a successful response. The ldaps monitor uses a service account to login. Make sure the service account’s password does not expire. Domain User permissions are sufficient. Since this monitor is a Perl script, it uses NSIP as the source IP.

If you have Domain Controllers in multiple datacenters, you can create multiple load balancing Virtual Servers and cascade them so that the local Domain Controllers are used first, and if they’re not available, then the Virtual Server fails over to Domain Controllers in remote datacenters.

The Load Balancing Virtual Server for LDAPS can be TCP or SSL_TCP:

  • If the protocol is TCP, then SSL-encrypted LDAP traffic is not terminated on the NetScaler, and is simply forwarded to the LDAP servers. If your LDAP client needs to verify the LDAP server certificate, then this Load Balancing configuration will not work, since each back-end LDAP server will have a different certificate.
  • If your Load Balancing Virtual Server is protocol SSL_TCP, then a certificate must be installed on the NetScaler and bound to the Load Balancing Virtual Server. SSL is terminated at the NetScaler and re-encrypted before sending it to the destination Domain Controller. The primary benefit of NetScaler SSL termination is that your LDAP clients can verify the Virtual Server SSL certificate.

When NetScaler uses a local (same appliance) load balanced Virtual Server for LDAPS authentication, the traffic is sourced from the NetScaler SNIP (Subnet IP). When NetScaler uses a direct connection to a Domain Controller without going through a local Load Balancing Virtual Server, or if NetScaler uses a remote (different appliance) Load Balancing VIP, then the traffic is sourced from the NetScaler NSIP (NetScaler IP). Adjust firewall rules accordingly.

LDAPS Monitor

LDAPS monitor instructions from Citrix article CTX117943 – Secure LDAP Monitor Does not Work. Note: Perl monitor uses NSIP as the source IP.

  1. Use WinSCP or similar to connect to the NetScaler appliance.
  2. On the right, navigate to /netscaler/monitors.
  3. Right-click nsldap.pl, and click Duplicate.
  4. Change the target remote directory to /nsconfig/monitors/nsldaps.pl, and check the box next to Duplicate via local temporary copy. Click OK. The source file is in the /netscaler/monitors directory, but it needs to be copied to the /nsconfig/monitors directory.
  5. Navigate to /nsconfig/monitors. Right-click the new nsldaps.pl file, and click Edit.
  6. Search for the following entry in the file:
    my $ldap=Net::LDAP->new($_[0].":".$_[1],Timeout=>$_[3])
  7. Replace the entry with the following entry. The only change is the addition of: scheme=>’ldaps’
    my $ldap=Net::LDAP->new($_[0].":".$_[1],scheme=>'ldaps',Timeout=>$_[3])
  8. Save the file.
  9. Right-click the nsldaps.pl file, and click Properties.
  10. Check the X box in all three rows, and click OK.
  11. Use WinSCP to download the nsldaps.pl file to your computer, and then copy it to the secondary appliance in the /nsconfig/monitors directory.
  12. In the NetScaler Configuration Utility, expand Traffic Management, expand Load Balancing, and click Monitors.
  13. On the right, click Add.
  14. Name the monitor ldaps-Corp or similar. The ldaps monitor logs into Active Directory, performs an LDAP query, and looks for a successful response. The monitor configuration has domain specific information, so if you have multiple Active Directory domains, then you will need multiple ldaps monitors. Include the domain name in the monitor name.
  15. Change the Type to LDAP.
  16. On the Special Parameters tab, use the Script Name drop-down list to select the nsldaps.pl file.
  17. In the Base DN field, enter your domain name in LDAP format (e.g. dc=company,dc=com)
  18. In the Bind DN field, enter the UPN login (e.g. ctxsvc@company.com) of a service account in the domain that can browse all objects. Any normal Domain User should be sufficient. Just make sure the password doesn’t expire.
  19. In the Filter field, enter cn=builtin. This limits the search results.
  20. In the Password field, enter the password for the service account. Make sure there is no semicolon in the password or the script will be unable to parse the parameters.
  21. Click Create.

    add lb monitor LDAP-Corp LDAP -scriptName nsldaps.pl -dispatcherIP 127.0.0.1 -dispatcherPort 3013 -password Passw0rd -secure YES -baseDN "dc=corp,dc=local" -bindDN "corp\\ctxsvc" -filter cn=builtin
  22. If you have multiple domains, then create additional monitors: one for each domain.

Servers

  1. On the left, expand Traffic Management, expand Load Balancing, and click Servers.
  2. On the right, click Add.
  3. Enter a descriptive server name, usually it matches the actual server name.
  4. Enter the IP address of the server.
  5. Enter comments to describe the server. Click Create.

    add server AD01 10.2.2.11
    add server AD01 10.2.2.12
  6. Continue adding Domain Controllers.

Service Groups

  1. On the left, expand Traffic Management, expand Load Balancing, and click Service Groups.
  2. On the right, click Add
    .
  3. You will create one Service Group per datacenter. Enter a name reflecting the name of the data center. Also, you will create a set of service groups per Active Directory domain so include the domain name.
  4. Change the Protocol to SSL_TCP. Scroll down, and click Continue.
  5. On the right, in the Advanced column, click Members.
  6. On the left, in the Service Group Members section, click where it says No Service Group Member.
  7. If you did not create server objects then enter the IP address of a Domain Controller in this datacenter. If you previously created a server object, then change the selection to Server Based, and select the server object. In the Port field, enter 636 (LDAPS).
  8. Note: Any Domain Controller you add to this list must have an SSL certificate installed. The easiest way to install SSL certificates on the Domain Controllers is with Active Directory Certificate Services since it installs the certificates automatically.

  9. To add more members, click where it says 1 Service Group Member and then click Add. Click Close when done.

  10. On the right, in the Advanced column, click Monitors.
  11. On the left, in the Monitors section, click where it says No Service Group to Monitor Binding.
  12. Click the arrow next to Click to select.
  13. Select your new LDAPS monitor and click OK.
  14. Click Bind.
  15. To verify the member is up, click in the Service Group Members section.
  16. Highlight a member and click Monitor Details.
  17. It should say Probe successful. Click OK.
  18. If the monitor doesn’t work, use ldp.exe to verify the Domain Controller certificate.
  19. Click Done to finish creating the Service Group.

    add serviceGroup svcgrp-LDAP-Corp SSL_TCP
    bind serviceGroup svcgrp-LDAP-Corp AD01 636
    bind serviceGroup svcgrp-LDAP-Corp AD02 636
    bind serviceGroup svcgrp-LDAP-Corp -monitorName LDAP-Corp
  20. The Service Group is displayed as UP.
  21. Add additional service groups for Domain Controllers in each data center.

Virtual Server

  1. Create or import a certificate that matches the FQDN that resolves to the new Load Balancing VIP for LDAPS.
  2. On the left, expand Traffic Management, expand Load Balancing, and click Virtual Servers.
  3. On the right, click Add.

    1. Name it lbvip-LDAPS-Corp-HQ or similar. You will create one Virtual Server per datacenter so include the datacenter name. Also, each domain has a separate set of Virtual Servers so include the domain name.
  4. Change the Protocol drop-down to SSL_TCP.
  5. Enter a Virtual IP. This VIP cannot conflict with any other IP + Port already being used. You can use an existing VIP that is not already listening on TCP 636.
  6. Enter 636 as the Port. Click OK.
  7. On the left, in the Service Group section, click where it says No Load Balancing Virtual Server ServiceGroup Binding.
  8. Click the arrow next to Click to select.
  9. Select the previously created Service Group, and click OK.
  10. Click Bind.
  11. Click OK.
  12. On the right, in the Advanced column, click SSL Certificate.
  13. On the left, in the Certificates section, click where it says No Server Certificate.
  14. Click the arrow next to Click to select.
  15. Select a certificate that matches the FQDN that will resolve to this VIP. Click OK.
  16. Click Bind.
  17. Click OK.

    add lb vserver lbvip-LDAP-Corp SSL_TCP 10.2.2.210 636 -persistenceType NONE -cltTimeout 9000

    bind lb vserver lbvip-LDAP-Corp svcgrp-LDAP-Corp
  18. Perform other normal SSL configuration including: disable SSLv3, and bind a Modern Cipher Group.
    bind ssl vserver MyvServer -certkeyName MyCert

    set ssl vserver MyvServer -ssl3 DISABLED -tls11 ENABLED -tls12 ENABLED

    unbind ssl vserver MyvServer -cipherName ALL

    bind ssl vserver MyvServer -cipherName Modern

    bind ssl vserver MyvServer -eccCurveName ALL
  19. Click Done to finish creating the Virtual Server.
  20. The new Virtual Server should show as Up.
  21. Create additional Virtual Servers for each datacenter. These additional Virtual Servers do not need a VIP, so change the IP Address Type to Non Addressable. Only the first Virtual Server will be accessible.

    add lb vserver lbvip-LDAP-Corp-Backup SSL_TCP 0.0.0.0 0
  22. Notice that the additional datacenter Virtual Servers show up with an IP Address of 0.0.0.0 and port of 0.
  23. After you are done creating a Virtual Server for each datacenter, right-click the primary datacenter’s Virtual Server and click Edit.
  24. On the right, in the Advanced column, click Protection.
  25. On the left, in the Protection section, change the Backup Virtual Server to one of the other datacenter Virtual Servers. If all of the services in this datacenter are DOWN, the backup Virtual Server will be used instead. You can cascade multiple Virtual Servers using this method. Click OK and Done.

    set lb vserver lbvip-LDAP-Corp -backupVServer lbvip-LDAP-Corp-Backup

Next Steps

You may now use this Virtual IP in your LDAP authentication policies for NetScaler Gateway and/or NetScaler management login.
