Citrix Health Check

Last Modified: Feb 28, 2024 @ 2:29 pm

Navigation

đź’ˇ = Recently Modified

Change Log

Health Check Overview

Health Checks review an environment for configurations that might cause future problems, not necessarily existing problems. Health Checks tend to focus on non-functional qualities like the following:

  • Availability
  • Security
  • Manageability
  • User Experience
  • Performance
  • Reliability

The rest of this article is an incomplete list of health check assertions for Citrix environments.

StoreFront Load Balancing

  • Citrix connectivity infrastructure design is documented: StoreFront, Gateways, ADCs, multiple datacenters, Delivery Controllers, SQL, etc.
    • Separate test Citrix environment has identical architecture as production: multiple data centers, high availability for all components, etc. – enables testing changes, including HA/DR changes, before performing those changes in production. Some upgrades are performed differently for HA/DR than for single components.
  • The FQDN that users use to access Citrix (e.g. https://citrix.company.com) resolves to a Load Balancing VIP, not a single server.
    • The FQDN automatically fails over (e.g. GSLB) to a VIP in a different data center if the primary data center is down.
  • The certificate for the SSL Load Balancing VIP is valid: trusted, not expired, matches FQDN, no errors in Chrome, etc.
    • Someone is responsible for ensuring the certificate is not expired and receives pending certificate expiration notifications.
  • The Load Balancing VIP sends SSL traffic to two or more StoreFront servers in the local data center – for redundancy.
    • The ADC-to-StoreFront server communication is SSL/TLS encrypted, not HTTP – this traffic contains user credentials.
  • The ADC monitor for the StoreFront servers is type STOREFRONT, or does a GET request to /Citrix/Store/discovery – other monitors might not detect stopped services.
  • X-Forwarded-For is configured in the Load Balancing Services (or Service Group) for Client IP header insertion.
  • Load balancing persistence is SOURCEIP with a timeout that is as long as the Receiver for Web timeout – COOKIEINSERT doesn’t work on all client devices.

StoreFront Servers

  • If the StoreFront servers are on the same hypervisor cluster, then anti-affinity is configured to keep them on separate hypervisor hosts.
  • StoreFront server VMs do no have any old snapshots – slows down performance, and consumes disk space.
  • StoreFront version is updated to resolve Security vulnerability as of Jan 16, 2024.
    • Upgrades are performed in a separate test environment that has identical architecture as production before the updates are performed in production.
  • StoreFront server group have latency of less than 40 ms (with subscriptions disabled) or less than 3 ms (with subscriptions enabled) between each member.
  • StoreFront configuration is propagated to other servers in the StoreFront Server Group.
  • OS, Patch level and VM Configuration of all StoreFront Server Group members are identical.
  • No recent unknown errors in Event Viewer at Applications and Services -> Citrix Delivery Services.
  • StoreFront Base URL is an https URL, not http. The FQDN resolves to the Load Balancing VIP, not a single server.
  • SSL certificates are installed on each StoreFront server and bound to IIS Default Web site. The SSL certificates are not expired.
  • C:\Users does not contain a bunch of user profiles. Delprof2.exe should be scheduled to delete these profiles – caused by users changing expired passwords.
  • If HTML5 Workspace app is enabled, then HTML5 Receiver is up to date – New versions are released at least monthly.
  • If Workspace app is stored on StoreFront servers, then the local Workspace apps in C:\Program Files\Citrix\Receiver StoreFront\Receiver Clients is current.
  • If Favorites are enabled, then Favorites (aka Subscriptions) are replicated to a StoreFront Server Group in a different data center.
  • If Federated Authentication Service (FAS), then multiple FAS servers configured through Group Policy.
    • FAS Servers are the same version as StoreFront.
    • If the FAS servers are on the same hypervisor cluster, then anti-affinity is configured to keep them on separate hypervisor hosts.
    • FAS Get-FasAuthorizationCertificate shows registration certificate is OK and not MaintenanceDue.
    • FAS group policy .admx template is up to date in SYSVOL.
    • FAS User Rules restricts usage to just some StoreFront servers, some VDAs, and some users – not all
    • Auto-enrollment is not enabled on the FAS certificate templates..
    • The Certificate Authority database is not excessively large.
    • For CA that is dedicated to only FAS, only Citrix templates. Other templates (e.g. Domain Controller) removed.
  • Task Manager shows sufficient CPU and Memory for each StoreFront server.
  • There’s sufficient free disk space – check C:\inetpub\logs
  • A monitoring tool alerts administrators of any StoreFront performance metric issue, availability issue (e.g. service stopped), and Event Log errors.
  • Logon Simulator runs periodically to verify that StoreFront is functional.
  • StoreFront Disaster Recovery procedure is documented and tested.

StoreFront Configuration

  • Only one store. Or every store but one is hidden – if multiple stores are advertised, then Workspace app will prompt the user to select a store.
  • Each Delivery Controller farm is configured with two or more Delivery Controllers – for redundancy.
    • Or Delivery Controller XML can be load balanced. If load balanced, then ADC monitor is of type CITRIX-XD-DDC – so ADC can detect Local Host Cache outages.
    • Prefer separate farms per data center instead of stretched single farms (with zones) across multiple data centers.
  • Transport Type for Delivery Controllers is https, not http – this traffic includes user credentials.
  • Receiver for Web Session Timeout is not too short for user experience or too long for security.
  • Citrix Gateway configuration in StoreFront console:
    • The STAs in StoreFront match the STAs configured on the Citrix Gateway Virtual Server on the ADC appliances.
    • Session Reliability is enabled.
    • Callback URL is only needed for SmartAccess and Citrix FAS – Callback URL should be removed if it’s not needed.
    • Internal Beacon is only reachable internally.
    • External Beacon does not include citrix.com – ping.citrix.com is OK
  • HDX Optimal Routing can send ICA traffic through the Citrix Gateway that is closest to the VDA (i.e. farm).

Delivery Controllers

  • In CVAD 1906+, Citrix Scout Health Check does not show any errors or warnings.
  • If the Delivery Controller servers are on the same hypervisor cluster, then ensure anti-affinity is configured to keep them on separate hypervisor hosts.
  • Delivery Controller VMs do not have any old snapshots.
  • Delivery Controller version is an LTSR Cumulative Update version (e.g., 1912 CU7), or the two latest Current Release versions (e.g., 2305). No other versions are supported – Citrix Product Matrix shows support dates.
    • Delivery Controller Upgrades are performed in a separate test environment before performed in production.
    • Citrix upgrades or updates are performed around twice per year.
  • Run Get-BrokerDBConnection to see the SQL connection string. No SQL Express. For AlwaysOn Availability Group (AAG):
    • SQL String points to AAG Listener, not single node.
    • All AAG SQL nodes in one data center. For multiple data centers, prefer separate farms in each data center with local SQL.
    • SQL String contains MultiSubnetFailover.
    • Each SQL server has SQL Logins for all Delivery Controllers – SQL Logins usually don’t replicate between SQL nodes.
    • Prefer Synchronous Commit with Automatic Failover over Asynchronous replication.
    • AAG Dashboard in SQL Studio does not show any issues.
  • SQL databases for Site, Monitoring, and Log are separate, not combined.
  • SQL databases for Citrix are not excessively large. Database Backup tool is truncating the database logs.
  • SQL Servers have sufficient CPU/Memory to handle the Citrix SQL traffic. Monitoring tool alerts SQL DBAs of any performance or availability issues.
  • SQL Server version is supported by Citrix. https://support.citrix.com/article/CTX114501
  • Local Host Cache is enabled on the Delivery Controllers. Run Get-BrokerSite to confirm.
    • Delivery Controller virtual CPU allocation is 1 CPU socket with multiple cores – SQL Express LocalDB for Local Host Cache only runs on a single socket (up to four cores).
    • How are non-persistent virtual desktops handled during SQL outage?
    • In CVAD 1912 and newer, LocalDB is upgraded to SQL Server Express LocalDB 2017
  • SQL Disaster Recovery plan is documented and tested.
  • SSL Certificates are installed on Delivery Controllers to encrypt XML traffic from StoreFront.
    • SSL certificates are bound to IIS Default Web Site, or netsh http sslcert to perform binding. IIS Binding does not include hostname.
    • SSL certificate not expired.
  • Trust XML Requests is enabled for pass-through authentication, SmartAccess, FAS, etc. Run Get-BrokerSite to confirm.
  • Task Manager shows sufficient CPU and Memory for each Delivery Controller server.
  • A monitoring tool alerts administrators of any Delivery Controller performance metric issue, availability issue (e.g. service stopped), and Event Log errors.

Citrix Studio

  • Citrix Studio consoles installed on administrator machines are the same version as the Delivery Controllers.
  • Customer Experience Improvement Program is disabled in Citrix Studio > Configuration node > Product Support tab.
  • Licensing Model/Edition matches what you actually own.
  • Citrix Studio Administrators are periodically audited to ensure only authorized users are granted Studio access.
    • Administrators are added as Active Directory Groups, not individual users.
  • Applications are published to Active Directory Groups, not individual users.
  • If App Groups, applications are published to only App Groups. Applications are not published to both App Groups and Delivery Groups.
  • Hypervisor connection uses a service account, not an admin account.
    • Hypervisor permissions for the service account are the minimum permissions required (custom role), not full hypervisor administrator.
  • Each Hosting Resource only has one datastore selected, not multiple datastores – Citrix MCS does not have a datastore “Rebalance” option. More datastores means more copies of master image snapshots, which means longer time to push out an updated Master image.
  • MCS Memory Caching Option is not enabled unless VDA 1903 or newer – older VDA, including 7.15 VDA, has poor performing MCSIO driver.
  • If MCS, VDA restarts are not performed in hypervisor since hypervisor does not cause MCS reset like Studio restart does.
  • StoreFront URLs are not assigned to Delivery Groups using Studio – instead use Workspace app group policy to assign StoreFront URL.

Citrix License Server

  • Citrix License Server is version 11.17.2.0 build 40000 or newer to resolve Apache vulnerabilities.
  • Citrix License Server is uploading telemetry every 90 days as required by Citrix. Check c:\Program Files (x86)\Citrix\Licensing\LS\resource\usage\last_compliance_upload
  • The licenses installed on Citrix License Server match the purchased licenses at https://citrix.com/account – some Citrix License Servers have too many licenses installed.
  • If multiple Citrix License Servers, installed license count across all License Servers does not exceed the purchased licenses shown at https://citrix.com/account
  • Administrators are not frequently clearing named user license assignments to simulate concurrent licensing – license assignments should only be cleared when the user permanently no longer uses Citrix.
  • Subscription Advantage dates are not expired – if expired, download new license files and install them.
  • Usage and Statistics tab is configured as intended in the Citrix Licensing Manager gear icon.
  • Citrix License Server Disaster Recovery procedure is documented and tested.

Remote Desktop Services (RDS) Licensing

  • If RDSH VDAs, two or more activated RDS Licensing servers.
  • RDS Licensing Server operating system version matches (or newer) the RDSH VDA operating system version – e.g. Windows 2019 RDS Licensing for Windows 2019 RDSH servers. Windows 2019 RDS Licensing also works with Windows 2016 RDSH servers.
  • In RD Licensing Manager, right-click server -> Review Configuration shows green checkmarks.
  • The combined licenses installed on all RDS license servers do not exceed the purchased licenses.
  • On RDSH VDAs, HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows NT\Terminal Services\LicenseServers shows two servers.
    • LicensingMode = 4, which is Per User mode, which is not enforced.

Citrix Director

  • Director version matches the Delivery Controller version.
  • If multiple Director servers:
    • Hypervisor Anti-affinity is configured.
    • Director Saved Filters are relocated to a UNC path instead of local C: drive.
  • Director server VMs do not have old snapshots – slows down servers, and increases disk space.
  • SSL certificate is installed on Director servers.
    • Admins and Support teams always use https to access Director. IIS or load balancer redirects from http to https.
  • Director website is SSL load balanced.
    • SSL protocol, not http, between load balancer and Director servers – this traffic contains user credentials.
  • Director logon page auto-populates the domain name – for user convenience. Might have to reconfigure the domain name after every Director upgrade.
  • Citrix Policy Settings for Director:
    • Enable Process monitoring is enabled.
    • Enable monitoring of application failures is enabled.
  • If Citrix Virtual Apps and Desktops (CVAD) is Premium Edition:
    • Director Alerts are configured to email CVAD administrators.
    • Citrix ADM HDX Insight is integrated with Director. HTTPS protocol, not HTTP.
    • Probes are configured – Probe Agent version matches the Director version.
  • Help Desk knows how to use Citrix Director to support users.
  • Average logon durations are not excessive.
  • Repetitive issues (e.g. profile resets) are analyzed for root cause analysis and future prevention.

VDAs

  • Catalog design is documented – storage design, network design, multiple datacenters design, recovery design, etc.
  • VDA version matches the Delivery Controller version.
  • VDA Subnets are added to Active Directory Sites & Services.
    • Check LOGONSERVER variable after logon to confirm correct Domain Controller.
  • DHCP is highly available. VDA IP Subnet router forwards DHCP requests to more than one DHCP server. DHCP scope is replicated to more than one DHCP server.
    • DHCP Scope has sufficient address availability for VDAs.
  • DNS Reverse Lookup Zone with PTR records for the Virtual Apps and Desktops machines.
  • If KMS, slmgr.vbs /dlv shows a unique KMS CMID for each VDA machine – another option is Active Directory-based activation.
  • If persistent (dedicated) Catalogs:
    • The VDA version matches the Delivery Controller version – VDA updates should be automated (e.g. SCCM).
    • Dedicated Catalogs are created as Full Clones – Fast Clones cannot be moved to different storage or different hypervisor cluster.
    • Persistent desktops are backed up, replicated, etc. Recovery process is documented and tested.
    • Persistent desktop provisioning process is automated, preferably from a self-service portal.
  • No Personal vDisk – User Layers instead
  • No User Layers – slows down logons, and not all apps work – prefer Persistent Desktops instead.
    • User Layers are backed up, and restore process is documented and tested.
    • User Layers are stored on a clustered file server that can handle failover of always-open VHD files (e.g. Windows File Share with Continuous Availability) – Replication won’t help with file server outage and already open User Layers
  • Multiple department-specific master images instead of a single monolithic image – during user logon, monolithic images need to be dynamically customized for user requirements, which slows down logons.
    • No double-hop – slows down logons and increases complexity since double hop requires Workspace app and icon management on the first-hop VDA machine – prefer master images with every application installed locally instead of double-hop to published applications.
    • No Shortcut visibility management – slows down logons
    • No Elastic Layering – slows down logons
    • No App-V – slows down logons, and slows down machine performance
    • Master Image update process is automated – e.g. SCCM can push updates to master images
  • Catalogs are upgraded to latest Catalog version available.
  • VDA registrations are somewhat evenly distributed across the Delivery Controllers.
  • ListOfDDCs registry value on VDAs has two or more Delivery Controllers.
  • Daily Health Check report shows registration status and maintenance mode status of every VDA machine.
  • RDSH Load Index Policy has not been modified from the default. CPU Metric is too volatile, and can cause a Denial of Service and uneven distribution of sessions. Current Load Index values should be almost the same on every RDSH VDA and not be anywhere near 10000.
  • In-guest monitoring agent shows VDA memory usage. Allocated VM Memory matches or exceeds memory Committed Bytes – Hypervisor monitoring can’t show actual VM memory usage.
  • RDSH VDAs are periodically restarted – net statistics workstation or net server statistics shows uptime.
    • In CVAD 1909+, MaxDelayMins is configured in Get-BrokerRebootScheduleV2.
  • For EDT protocol, MtuDiscovery is enabled on the VDAs. MtuDiscovery requires VDAs version 1912 and newer.
  • If Cloud-hosting of VDAs, PowerScale controls VDA power management.

VDAs – Hypervisor Hardware Clusters

  • Desktop VDAs are in their own hypervisor cluster that does not contain any Server virtual machines – avoids Windows Server licensing.
    • Hypervisor clusters with Windows Servers have proper Windows Server licensing.
  • Hypervisor admins don’t perform any hypervisor updates without first reviewing Citrix’s Supported Hypervisors article.
  • VDA vCenter is separate from non-VDA vCenter – allows non-VDA vCenter to be upgraded without affecting Citrix.
  • Hypervisor performance is monitored and alerted: CPU contention (aka CPU Ready Percentage), disk latency, CPU Usage, etc.
  • Capacity planning tool warns admins when more hypervisor hardware is needed.
  • vSphere clusters have N+1 or N+2 extra capacity for redundancy.
  • HA and DRS are enabled on vSphere cluster according to design – not all designs use these features
  • CPU and Memory consumption are evenly distributed across the hypervisor cluster
  • If VMFS6 datastores, vSphere 6.7 Update 3 is installed – see release notes
  • NTP is configured and running on hypervisor hosts.
  • Hypervisor hosts have High performance BIOS settings.
  • In larger environments, dedicated VLAN(s) for VDAs – not shared with non-Citrix workloads
    • MCS and PVS require DHCP
  • Network Uplinks are redundant and have sufficient capacity
    • ESXi Management/Vmotion/Storage traffic are separate VLANs from the VDA VLANs
    • Storage multipathing is functioning
  • NVIDIA vGPU software is current on hypervisor host and virtual machines. – vGPU Manager 11.0+ supports guest driver version one major version back (e.g., 10.0) – February 2024 security update
    • The newest hypervisors can vMotion GPU-configured virtual machines – vgpu.hotmigrate configured in vCenter Advanced Settings. DRS set to Manual or Partially Automated.
    • NVIDIA in-guest vGPU Driver is installed before the VDA is installed – otherwise HDX 3D Pro will not work.
    • ESXi Host Graphics Settings set to Shared Direct and spread across GPUs – Host GPUs set to Shared Direct.
    • NVIDIA license servers are redundant (failover support), or in the cloud.

VDAs – Virtual Machine Hardware (vSphere)

  • Network Interface type is VMXNET3, not E1000.
  • devices.hotplug=false is configured in Virtual Machine Configuration Settings.
  • If disk space is a concern, virtual machine memory is reserved to reduce .vswp file size.
  • If Citrix App Layering:
    • Paravirtual controller is not added.
    • Boot firmware is BIOS, not EFI.
  • Windows 10 version is supported by Citrix VDA version, and supported by App Layering version.
    • Windows 11 is supported with VDA 2109 and newer. It is not supported by VDA 1912.
  • VMware Tools version is current.

VDAs – Master Image Build

  • Master Image build process is documented.
  • Master Image virtual machine was built from scratch – not converted from a physical machine.
  • Security scan of the VDA Master Images shows compliance with enterprise security requirements.
  • VDA version resolves vulnerability – 2305, 2203 CU3, or 1912 CU7
  • Master Image updates:
    • Master Image maintenance is automated – e.g., SCCM can push updates to Master Images. A script can push Master Images to Catalogs.
    • Software Deployment team notifies the Master Image maintainers when applications or Windows require an update.
    • Master Image is sealed before shutdown – e.g., antivirus is generalized, SCCM Client is generalized – sealing should be scripted – Base Image Script Framework (BIS-F) can automate this
    • Master Image updates are tested before deployed to production. QA testing. Canary testing.
    • Master Image snapshots are deleted after a period of time.
  • Profile Management is patched to resolve Local privilege escalation vulnerability – 2106 Hotfix 1, 1912 CU3 Hotfix 1, or 7.15 CU7 Hotfix 1. 1912 CU4 includes the fix.
  • Antivirus is installed. Antivirus is optimized for non-persistent machines (aka VDI).
  • Other IT agents (e.g., software auditing, SCCM Agent) are optimized for non-persistent machines.
  • Local Groups:
    • Administrators group does not contain any non-administrators.
    • Direct Access Users group only contains authorized RDP users.
  • Citrix Optimizer or similar has removed Windows 10 Store Apps.
  • Windows Default profile was not modified – instead use group policy to control Windows appearance.
  • Windows Updates are current (i.e., last install date is within the last 60 days).
  • C: drive permissions are changed so Users can’t create folders on root of C: drive.
  • Power management is set to High Performance with no sleep timers.
  • If Citrix Provisioning:
    • Pagefile is shrunk so it fits on PVS cache disk – there’s no need to move the pagefile since PVS will move it for you. Just make sure it’s small.
    • Event Logs are moved to PVS cache disk.
  • Customer Experience Improvement Program is disabled in VDA registry.
  • FSLogix is a recent version – FSLogix version 2.9.7979.62170 resolves a security vulnerability in Cloud Cache.
  • Office 365 Shared Computer Activation is enabled.
    • FSLogix is implemented for Outlook search roaming.
  • Microsoft Teams is installed using machine-wide installer.
    • Microsoft Teams machine-wide installation is periodically manually updated – there’s no auto-update.
    • Teams cache folders excluded from roaming profiles.
  • For OneDrive Files On-demand, is only installed on Windows Server 2019 and newer, or Windows 10 1709 and newer
    • OneDrive is installed using machine-wide installer – check C:\Program Files (x86)\OneDrive
    • FSLogix saves OneDrive cache.

Citrix App Layering

  • Prefer automated (e.g. SCCM) Master Image updates over manual App Layering layer updates – if SCCM is mature, then there’s no need for App Layering.
  • Prefer SCCM-managed dedicated desktops over User Layers – SCCM is a known technology. User Layers are proprietary to Citrix and might not support every application.
  • Enterprise Layer Manager (ELM) version is current – ELM updates are required to support newer Citrix Virtual Apps and Desktops (CVAD) and newer Windows 10. There’s no LTSR version of ELM.
  • Citrix Provisioning Agent version matches the ELM version.
  • Directory Junction Bind account is a service account, not a regular user whose password expires.
    • LDAP is Secure (Use SSL).
  • Administrator role membership is periodically audited to ensure only authorized users are granted access.
  • ELM is backed up. Or layers are periodically exported from ELM.
  • Group Policy controls membership of local groups in VDA machines – e.g. add Domain Admins to local Administrators group.
  • Antivirus is configured properly for Layering.
  • Hypervisor Connector uses a service account with limited permissions.
  • Connector cache is enabled to speed up layering operations.
  • Offload Compositing is enabled in the Connectors.
  • File servers hosting Elastic Layers and User Layers are monitored for performance issues and capacity planning.
  • User Layers are backed up, replicated, etc.

Citrix Provisioning

Provisioning Servers:

  • Provisioning Servers version matches the Delivery Controller version.
  • Multiple Provisioning Servers for High Availability.
    • Hypervisor Anti-affinity is configured.
  • Sufficient RAM for vDisk caching in memory – around 2-3 GB of memory per active vDisk.
  • Only one NIC per Provisioning Server – simplifies the configuration.
  • Server Bootstrap has multiple Provisioning Servers listed.
  • Threads times Ports are sufficient for the number of target devices.
  • vDisk Boot Menu is disabled in the registry – enables maintenance mode Target Devices to automatically boot from maintenance mode vDisks.
  • Antivirus has exclusions for Citrix Provisioning.
  • Provisioning Server performance metrics are monitored and alerted.
    • NIC throughput is not saturated.

Provisioning Farm Properties:

  • Offline database is enabled.
  • Auditing is enabled.
  • Administrators list only contains authorized administrators, preferably from an Active Directory Group.
  • Customer Experience Improvement Program is disabled.
  • For AlwaysOn Availability Group, MultiSubnetFailover is configured in the database connection string.

vDisks:

  • If local storage, vDisk files are identical on all Provisioning Servers.
  • vDisk files are VHDX, not VHD – faster version merging.
  • vDisks are sized dynamic, not fixed – Saves disk space. Standard Mode vDisks don’t grow so no performance impact.
  • vDisk files are defragmented.
  • vDisk files are backed up.
  • vDisk updates are automated.

Target Devices:

  • Target Device Boot Method is highly available – Target Devices on same subnet Provisioning Servers. Or DHCP Option 66 with TFTP Load Balancing. Or Boot ISO/Boot Partition has multiple Provisioning Server addresses.
    • DHCP is highly available. Subnet’s router forwards DHCP requests to multiple DHCP servers. Replicated DHCP scope.
    • Use PXEChecker to verify multiple TFTP responses.
  • vDisk Write cache is configured for Target Device RAM with overflow to disk – health check script should periodically verify this.
  • WriteCache folders on Provisioning Servers are empty – no server-side caching.
  • If KMS, slmgr.vbs /dlv shows a unique KMS CMID for each Target Device machine – another option is Active Directory-based activation.
  • Target Devices are evenly distributed across multiple Provisioning servers – ensures that High Availability is working correctly – stop Stream Service to confirm HA
  • System Reserved Partition is removed from inside vDisk.
  • VMware Tools in Target Devices (vDisks) is up to date.
  • Target Device Software version matches the Citrix Provisioning version.
  • Target Device status shows low number of retries.

Group Policies and Active Directory

  • VDAs are placed in VDA-only OUs, no users – group policies apply to VDAs without affecting physical endpoints.
    • Separate OUs per Delivery Group – different group policies apply to different Delivery Groups.
  • Master Images are located in VDA OUs – computer-level GPO settings apply to the Master Images to avoid GPO timing issues on linked clones.
  • Block Inheritance OUs and Enforced GPOs are minimized.
  • .admx templates in SYSVOL > PolicyDefinitions are current – Windows 10 templates, Office templates, Citrix templates, etc.
  • Group Policy Loopback Processing Mode is enabled.
  • Duplicate, conflicting GPO settings are minimized – e.g. Group Policy Loopback Processing Mode is sometimes enabled in several GPOs.
    • Run Group Policy Results to show the actual GPO settings that applied to a specific session – compare with design
  • Lockdown GPO applies to non-administrators that log into VDA machines. Lockdown GPO doesn’t apply to administrators.
  • Remote Desktop Session Host (RDSH) session timeouts (idle, disconnect) are configured in a Microsoft GPO.
  • AppLocker or similar prevents users from running unauthorized executables (e.g. ransomware).
  • Initial application configuration is automated using group policy – e.g. auto configure application database connections, remove first time usage prompts.
  • Group Policy changes are tested in separate Test GPOs and separate Test VDAs before applying to production.
  • Monitoring tool shows group policy processing duration during logon.

Citrix Policies

  • Citrix Policies are configured in a Group Policy Object, not in Citrix Studio – a GPO can apply to multiple Citrix Virtual Apps and Desktops (CVAD) farms in multiple datacenters. Citrix Studio is single farm only.
    • Citrix Policies are not configured in both Citrix Studio and Group Policy – avoids confusion over which setting wins
    • If configured in Citrix Studio, and if multiple farms/sites, then Citrix Policy settings are identical in all farms/sites.
  • Citrix Group Policy Management plug-in on GPMC machines is same version included with CVAD ISO.
  • Unfiltered policy is on the bottom of the list (lowest priority) – most specific filters on top, least specific filters on bottom.
  • Client drive mapping, client clipboard, client printing, drag and drop, and client USB are disabled when connecting from external (e.g. SmartAccess) – only enabled by exception.
  • Client printing is set to Use Universal Print Driver only – avoids installing print drivers on VDA machines.
  • Audio is set to Medium quality – High Quality uses more bandwidth than Medium Quality.
  • Time zone redirection is configured in both Citrix Policy and RDSH Microsoft Group Policy.
  • For HDX Insight, ICA Round-Trip Time policy is enabled.
  • Visual quality and video codec settings are not modified from the defaults.
    • Legacy Graphics Mode is disabled.
  • Adaptive Transport (EDT) is enabled – it’s default disabled in 7.15. MTU might need to be decreased.
    • MtuDiscovery is enabled on the VDAs. MtuDiscovery requires VDAs version 1912 and newer.
  • Session Reliability is not disabled.
  • RDSH Session Timers are configured in Microsoft GPO, not Citrix Policy – Citrix Policy setting description shows if setting applies to Server OS or not.

Citrix Workspace Environment Management (WEM)

  • Prefer Group Policies over WEM – WEM requires extra infrastructure, extra learning, extra administration, and extra support. Some WEM user settings are per-machine (per configuration set) only. WEM can’t replace group policies since there’s currently no .admx support.
    • Citrix Profile Management and Microsoft Folder Redirection are configured using Microsoft Group Policy, not WEM – Group Policies are well known. WEM is proprietary to Citrix and requires WEM skills to troubleshoot.
  • WEM is within two versions of the latest – there’s no LTSR version of WEM.
    • WEM Consoles and WEM Agents match WEM Server version.
  • Multiple load balanced WEM Servers for High Availability.
    • If multiple WEM servers are on the same hypervisor cluster, then Hypervisor anti-affinity is configured for the multiple WEM servers.
    • WEM Agents point to WEM Server load balanced FQDN, not individual server.
    • WEM Console points to single WEM Server, not load balanced FQDN.
  • WEM Brokers are close the VDAs – WEM configuration can be exported/imported into WEM implementations in multiple data centers.
  • WEM Database is hosted on an AlwaysOn Availability Group or other Highly Available SQL solution.
    • SQL database is backed up. SQL database recovery is documented and tested.
  • In WEM 1909+, Infrastructure Service Enable performance tuning for Windows Communication Framework is enabled and set to the number of concurrent WEM Agents that will be connected to this one WEM server. Maximum value is 3000.
  • Antivirus exclusions are configured for Citrix WEM.
  • WEM .admx group policy template in SYSVOL > PolicyDefinitions is updated whenever WEM Servers are updated.
  • Settings are in WEM, or Group Policy, but not both – helps troubleshooting. Reduces confusion.
  • Bypass ie4uinit Check is enabled (Advanced Settings > Service Options) – for faster logons.
  • Drive mappings and printer mappings are moved to WEM and processed asynchronously (Advanced Settings > Agent Options).
  • Check Application Existence is enabled (Advanced Settings > Agent Options) – doesn’t create shortcut unless application exists
  • CPU Optimization is enabled – Memory management trades memory for disk; which is cheaper? Process exclusions might be needed.
    • In WEM 1909 and newer, CPU Spike Protection = Auto instead of Customize.
  • Fast logoff is enabled.
  • Unused action types are disabled from processing (Advanced Settings > Main Configuration) – speeds up logons.
  • Run Once enabled for Actions and scenarios that support it – speeds up logons.
  • WEM Agent Offline mode is enabled.
  • Computer startup script refreshes WEM Agent cache on each VDA reboot.
    • Script has correct Agent installation path and correct service name since they changed in 1909 and newer.
  • WEM Logs are reviewed for problems – enable debug logging. Look for Active Directory timeouts.
  • WEM Server performance is monitored for metric thresholds and future capacity issues.
  • WEM Server recovery is documented and tested.

Citrix Profile Management and Folder Redirection

  • No mandatory profiles on Windows 10 – benchmarks show slower performance.
  • Profile Management is configured in Group Policy, not Citrix Policy or Citrix WEM – Group Policy is the most reliable and most well-known option.
  • Profile file share:
    • File server is close to the VDAs – users log into VDAs that are closest to the file server (aka home site).
    • File share is highly available.
    • Caching is disabled on the file share.
    • No DFS multi-master replication. Single target only – neither Citrix nor Microsoft support merge replication.
    • Profiles are backed up and/or replicated. Recovery process is documented and tested.
    • Different profile folders for different operating system versions and/or different Delivery Groups.
    • NTFS permissions of individual user folders in the file share only grant access to the one user – no Users, no Domain Users, and no Authenticated Users.
    • Use TreeSize or similar to see profile size – adjust profile exclusions if too big.
    • Antivirus is not slowing down profile file transfer performance – time how long it takes to copy a profile folder to the local machine.
    • File servers are monitored for performance issues, including disk latency and free disk space.
  • Profile Management .admx file in SYSVOL > PolicyDefinitions matches the VDA version (or date).
  • Profile Management logs are stored on UNC share instead of local C: drive, especially if the VDAs are non-persistent.
    • Only Domain Computers have Modify permission to the Logs share – Users don’t need any permission.
  • Profile Management logs contain at least a few days of logons – if only a few minutes, then too much information is being logged and Log Settings GPO setting should be modified.
  • Profile streaming is enabled – speeds up logons.
  • Active Write Back is disabled – places extra load on file servers for not much benefit.
  • Customer Experience Improvement Program is disabled.
  • Locally cached profiles are deleted at logoff from RDSH machines that don’t reboot often.
  • No Start Menu roaming issues – might need ResetCache registry value.
  • Microsoft FSLogix is implemented for Outlook Search roaming – better than UPM’s Outlook search roaming.

Folder Redirection:

  • Folder Redirection is configured in Microsoft GPO settings, not in Citrix Profile Management settings – Microsoft GPO configuration is most reliable, most known, and can migrate existing files.
  • No AppData redirection – slows down applications.
  • “Grant the user exclusive rights” option is unchecked – allows administrators to access redirected profile folders.
  • Folder Redirection file share:
    • File share is highly available.
    • No DFS multi-master replication. Single target only – neither Citrix nor Microsoft support merge replication.
    • Redirected Folders are backed up and/or replicated. Recovery process is documented and tested.
    • NTFS permissions of individual user folders in the file share only grant access to the one user – no Users, no Domain Users, and no Authenticated Users.
    • Antivirus is not slowing down folder redirection performance.
    • File servers are monitored for performance issues, including disk latency and free disk space.

Home Directories:

  • File server is close to the VDAs – users log into VDAs that are closest to the file server (aka home site).
  • File share is highly available.
  • No DFS multi-master replication. Single target only – neither Citrix nor Microsoft support merge replication.
  • Home Directories are backed up and/or replicated. Recovery process is documented and tested.
  • NTFS permissions of individual user folders in the file share only grant access to the one user – no Users, no Domain Users, and no Authenticated Users.
  • Antivirus is not slowing down file transfer performance – time how long it takes to copy a Home Directory folder to the local machine.
  • File servers are monitored for performance issues, including disk latency and free disk space.

Endpoint Devices

  • Prefer Windows 10 endpoints over thin clients – thin clients don’t support all Citrix functionality (e.g. local printing, browser content redirection). ThinKiosk can lock down Windows 10 endpoints.
  • Newest VDAs and newest Workspace apps have better WAN performance than LTSR 7.15.
  • Browser Content Redirection offloads video (e.g. YouTube) from VDAs to endpoint – reduces CPU consumption in the data center.

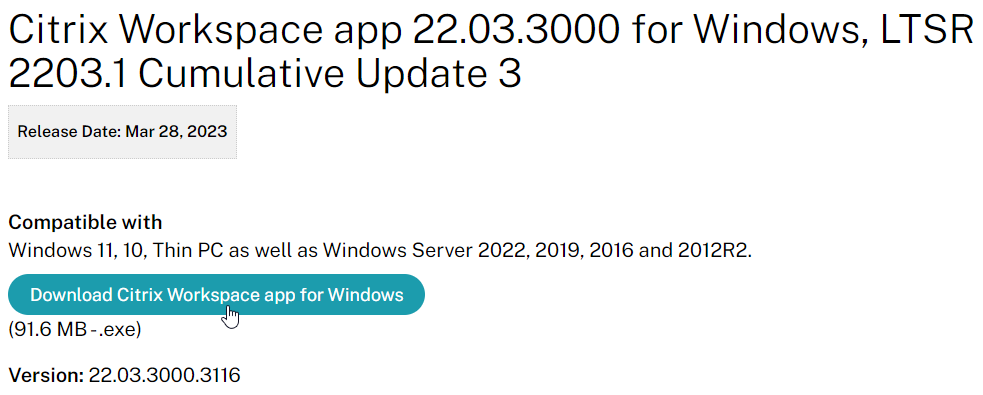

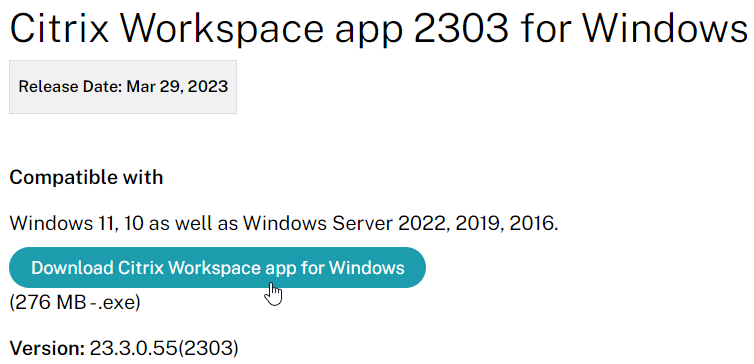

  • Workspace app is periodically (e.g., twice per year) updated by endpoint management team.
  • Workspace app (aka Receiver) ADMX templates in SYSVOL > PolicyDefinitions are current.
  • Group Policy adds StoreFront URL to Local Intranet zone.
  • Group Policy pushes StoreFront URL to Workspace app – so users don’t have to enter the URL.
  • Pass-through authentication is enabled for internal PCs – SSON Configuration Checker can verify proper configuration.
  • HKCU\Software\Citrix\Dazzle\Sites\store\type shows DS, not PNA – store added as Delivery Services (StoreFront), not PNAgent (legacy).
  • Internal Beacon at HKEY_CURRENT_USER\SOFTWARE\Citrix\Receiver\SR\Store\#\Beacons\Internal\Addr0 is internally reachable only – not reachable externally.
  • External Beacon at HKEY_CURRENT_USER\SOFTWARE\Citrix\Receiver\SR\Store\#\Beacons\External does not include citrix.com or ping.citrix.com.
  • EDT protocol (aka Adaptive Transport) is enabled. Director shows HDX protocol as UDP – Remote Display Analyzer can analyze problems with the graphics/codec.
  • HDX Insight: Newest VDAs and newest Workspace app have less AppFlow CPU impact on ADC than LTSR 7.15 VDAs.
  • Google Chrome detects Workspace app properly, especially through Gateway – requires Gateway ADC to able to resolve StoreFront Base URL to StoreFront IP
    • Chrome 77+ has receiver://* added to URL whitelist so the user isn’t prompted to open Workspace app

Citrix NetScaler ADC

  • NetScaler ADC Admins have subscribed to Citrix Security Bulletins at https://support.citrix.com/user/alerts
  • NetScaler ADC firmware build is patched for vulnerabilities as of Jan 16, 2024.
  • NetScaler ADC firmware updates are tested on separate test ADC appliances before performed in production. Test ADC appliances have test VIPs – application owners can test their VIPs on test ADC before firmware is upgraded in production.
  • NetScaler ADC VPX on vSphere:
    • NetScaler VPX NICs are VMXNET3, not E1000.
    • NetScaler is version that supports vSphere version.
    • DRS Cluster Anti-affinity is configured for the VPX appliances in the same HA pair.
    • CPU/Memory are reserved at hypervisor. If not reserved at hypervisor, then Yield CPU is not enabled so that VPX can reserve CPU itself.
  • NetScaler ADC license does not expire any time soon – check date inside license files at /nsconfig/license
    • ADM Pooled Licensing has license alerts enabled for email notifications.
  • Physical NetScaler ADC:
    • LOM port is connected and configured.
    • LOM nsroot password is changed from the default.
    • No VLAN is connected to multiple active interfaces unless those interfaces are in a port channel.
  • ADC nsroot password is not nsroot. nsroot password is managed by Privileged Identity Management tool. Admins don’t use nsroot to login.
  • Policies are Advanced Expressions instead of Classic Expressions. (source = CTX296948)
  • Management authentication is configured for external authentication server, typically LDAP.
    • LDAP is load balanced instead of multiple LDAP Policies to individual LDAP servers – avoids premature account lockout.
    • LDAP is encrypted: LDAPS on port 636.
    • LDAP Bind account is a service account – not a regular user whose password expires.
    • LDAP Search Filter only allows ADC Admins Active Directory Group to authenticate.
  • If TACACS, firmware is 12.0 build 57 or newer to prevent TACACS Accounting from blocking AAA.
  • nsroot account has external authentication disabled.
  • No local NetScaler ADC accounts except nsroot.
  • NTP and Time Zone are configured.
  • Syslog is configured to send logs to external SIEM, especially if ADC is performing authentication.
  • SNMP Traps are sent to Citrix ADM appliance.
    • Thresholds are configured for CPU and Memory alarms.
  • Customer Experience Improvement Program (CUXIP) is disabled.
  • Recommended TCP Profile Settings are configured.
  • Drop Invalid HTTP requests is enabled in HTTP global settings.
  • Secure Access Only is enabled on all NSIPs and all management-enabled SNIPs – check both nodes of High Availability pair.
    • Management certificate has no certificate errors.
  • Networking:
    • NetScaler ADC VLANs only have one interface (or one channel) – Best Practices at Citrix Docs.
    • If Dedicated Management Network, Policy Based Routes (PBR) are configured for NSIP reply traffic and NSIP-initiated traffic.
    • Unused network interfaces are disabled.
    • ADC instance is connected to only one security zone – if connected to multiple security zones, then a firewall is bypassed.
    • Default route should be Internet facing, or a data VLAN – not NSIP VLAN.
    • Only one default route – extra default routes can come from HA pairing or hardware migration.
  • Root DNS server address “h.root-servers.net” is set to 198.97.190.53 – might be old address due to older firmware
  • Unused NetScaler ADC configurations are removed – unused server objects, unused policies, etc.
  • Citrix ADM monitors and backs up the ADC appliances.
  • ADC Dashboard shows that CPU, Memory, and Throughput have not exceeded appliance capacity or appliance licensing.
  • /var/core and /var/crash do not have recent crash dumps.

NetScaler ADC High Availability Pair

  • Firmware build is identical on both nodes.
  • Installed Licenses are identical on both nodes.
  • NTP and time zones are configured on both appliances – Configuration node shows System Time.
  • Unused interfaces are disabled.
  • HA is synchronizing without error.
  • Both HA nodes are set to ENABLED – not STAYPRIMARY and/or STAYSECONDARY.
  • Fail-safe mode is enabled.
  • “show ha node” shows heartbeats across all interfaces – no “interfaces on which heartbeats are not seen”.
  • High Availability failover has been tested, including RADIUS authentication, which might come from a different source IP.
  • Sync VLAN configured to enable ISSU on ADC 13.0+

NetScaler ADC SDX

  • LOM port is connected and configured.
    • LOM nsroot password is not nsroot.
  • No hardware problems shown on SDX SVM dashboard page.
  • SDX firmware is current – should be same or newer than the VPX firmware.
  • SDX SVM nsroot password is not nsroot. nsroot password is complex. Admins don’t use nsroot to login.
  • Management authentication is configured for external authentication server, typically LDAP.
    • LDAP is load balanced instead of multiple LDAP Policies to individual LDAP servers – avoids premature account lockout.
    • LDAP is encrypted: LDAPS on port 636.
    • LDAP Bind account is a service account – not a regular user whose password expires
      • LDAP Bind account should be a regular domain account, not a Domain Admin.
      • LDAP Bind account should be dedicated to LDAP Bind and not used for anything else.
    • LDAP Search Filter only allows ADC SDX Admins Active Directory Group to authenticate.
  • No local accounts except nsroot.
  • No certificate errors when accessing SVM management using htttps.
    • HTTPS is forced in System Settings – HTTP is not allowed.
  • Multiple DNS servers are configured in Networking Configuration – initial setup only asks for one DNS server.
  • Channels are created at SDX SVM instead of inside VPX instances.
  • NTP is configured and enabled.
  • Syslog is configured.
  • SNMP traps are sent to Citrix ADM.
  • The number of SDX instance licenses installed matches what’s owned at https://citrix.com/account
  • SDX SVM Backups are configured with External Transfer – or download periodically – or ADM.
  • VPX Instances:
    • Platinum Edition license is assigned to instances.
    • SSL Chips are assigned to VPX instances.
    • All SDX hardware is allocated to VPX instances – If not, why not?
    • Production instances typically have Dedicated CPU cores. Test/Dev instances typically have Shared CPU.
    • VLANs are specified inside VPX instances instead of at instance properties on SDX Management Service – avoids reboot if you need to change the VLAN configuration.
    • No VMACs in instance interface settings.

NetScaler ADC Load Balancing and SSL

  • Load Balancing configurations are documented.
  • Monitors do more than just telnet – e.g. LDAP monitor performs LDAP query.
    • LDAP monitor bind account uses service account, not domain admin.
    • LDAP monitor is filtered to cn=builtin – to reduce result size.
    • RADIUS monitor looks for response code 2 or 3.
  • If multiple Virtual Servers for multiple ports on the same VIP, configure Persistency Group – e.g. Horizon Load Balancing.
  • Rewrite policies remove web server header information (Server, X-Powered-By, etc.)
  • SSL Labs SSL Server Test shows A or A+ grade for all Internet-facing SSL vServers.
  • Redirect Virtual Servers are UP (Responder method) instead of DOWN (Backup URL method).
  • Custom (non-default) ciphers are bound to every SSL Virtual Server – see Citrix Networking SSL / TLS Best Practices.
  • SSL v3 and TLS v1.0 are disabled on every SSL Virtual Server.
  • SSL Renegotiation is set to NONSECURE: configured globally, or in SSL Profiles (including default profile).
  • Root certificate is not linked to intermediate certificate.
  • Certificates are not expired.
  • SSL Services do not have “-TLS11 disabled” or “-TLS12 disabled” – might be disabled from older firmware.
  • ADM alerts ADC administrators when certificates are soon to expire.
  • ADM Analytics is enabled for the HTTP Virtual Servers.
    • ADM Web Insight is viewed.
  • Bot Management (13.0 build 41+) and/or Web App Firewall are configured if ADC Premium Edition.
    • ADM Security Insight is enabled and viewed.

Citrix NetScaler ADM

  • NetScaler ADM exists and manages all ADC appliances.
    • Prompt credentials for instance login is enabled in ADM System Settings – if ADM does Single Sign-on to instances, then all instance changes are logged as nsroot instead of ADM user.
  • NetScaler ADM firmware version is current.
    • ADM Agents and DR nodes have same firmware version as ADM – check /var/mps/log/install_state
  • Two DNS servers are configured in ADM Network Configuration – initial setup only asks for one DNS server.
  • Two NetScaler ADM appliances in High Availability mode with Floating IP – provides redundancy.
  • Every High Availability node and DR node has same disk size.
  • NetScaler ADM nsroot password is not nsroot. nsroot password is complex. Admins don’t use nsroot to login.
  • NetScaler ADM Agent nsrecover password has been changed from the default.
  • Management authentication is configured for external authentication server, typically LDAP.
    • LDAP is load balanced instead of multiple LDAP Policies to individual LDAP servers – avoids premature account lockout.
    • LDAP is encrypted: LDAPS on port 636.
    • LDAP Bind account is a service account – not a regular user whose password expires.
    • LDAP Search Filter only allows ADM Admins Active Directory Group to authenticate.
  • No local accounts except nsroot.
  • No certificate errors when accessing ADM management using htttps.
    • HTTPS is forced in System Settings – HTTP is not allowed
  • Time zone is configured.
  • NTP is configured and enabled.
  • NetScaler ADM Database is not full. Sufficient disk space.
  • Sufficient ADM CPU/Memory – verify at System > Statistics or System > Deployment.
  • All features enabled – verify at System > Administration > Disable or enable features
  • SSL Dashboard alert notifications are enabled to warn of upcoming certificate expiration.
  • Tasks page notifications are enabled
  • Event Rules are configured to email ADC administrators of Critical or Major ADC alarms.
  • NetScaler ADC Instance Backup settings on NetScaler ADM:
    • Number of NetScaler ADC instance backups retained is sufficient for restoring from history.
    • NetScaler ADC Backups are transferred to external SFTP, SCP, or FTP server.
    • NetScaler ADC Restore process is documented and tested.
  • VIP Licensing:
    • Installed license count on NetScaler ADM matches the licenses owned at https://citrix.com/account.
    • Licenses are assigned to Virtual Servers that need Analytics (e.g. HDX Insight) or Applications tab.
    • AppFlow/Insight is enabled on NetScaler Citrix Gateway and HTTP Virtual Servers.
    • TCP 5563 opened from SNIP to ADM for Metrics Collector.
    • License expiration notifications are enabled.
  • Private IP Blocks are configured for geo mapping of ADC instances and Analytics sessions.
  • Analytics Thresholds are configured – e.g., ICA Latency threshold.
  • Session Reliability on HA Failover is enabled on ADC instances in ICA Parameters – if not enabled, then sessions drop on failover.
  • ADM HDX Insight is linked to Director Premium Edition using https protocol, not http protocol.

NetScaler Citrix Gateway ICA Proxy

NetScaler Citrix Gateway Virtual Server:

  • SSL Labs SSL Server Test shows A or A+ when it scans the Gateway external FQDN.
  • If ICA Only is unchecked on the Gateway Virtual Server, then System > Licenses shows sufficient Maximum Citrix Gateway Users Allowed.
  • NetScaler Citrix Gateway Virtual Server Maximum Users is 0, which means unlimited.
  • TCP Profile is configured with Recommended TCP Profile Settings.
  • DTLS is enabled on the Virtual Server for EDT protocol.
    • UDP ports are open on firewall from Internet and to VDAs.
    • Director Session Details shows HDX protocol as UDP.
  • ICA Connections shows port 2598 (Session Reliability enabled), not 1494.
  • NetScaler Citrix Gateway communication to StoreFront is https protocol, not http.
  • NetScaler Citrix Gateway communication to StoreFront is load balanced to multiple StoreFront servers – not a single StoreFront server.
  • STAs on NetScaler Citrix Gateway matches StoreFront configuration.
  • Policies are Advanced Expressions instead of Classic Expressions. (source = CTX296948)
  • If EPA is used for SmartAccess, then Endpoint Analysis Libraries are updated.

NetScaler Citrix Gateway Authentication:

  • Encrypted LDAP:
    • LDAP is load balanced instead of multiple LDAP Policies to individual LDAP servers – avoids premature account lockout.
    • LDAP is encrypted: LDAPS on port 636.
    • LDAP Bind account is a service account – not a regular user whose password expires.
    • LDAP Search Filter only allows authorized remote users in an Active Directory group to authenticate.
  • Two-factor authentication – RADIUS:
    • For Workspace app, password fields are swapped.
    • Both factors are required to login. Can’t bypass second factor.
    • RADIUS tested from both High Availability nodes (perform failover).
  • SAML Authentication:
    • Prefer RADIUS over SAML so that ADC will have access to the user’s password to facilitate Single Sign-on to the VDA machines.
    • If SAML response does not provide user’s password, then Federated Authentication Service (FAS) is deployed .
    • For Workspace app support of SAML, SAML is configured in nFactor (AAA), not Gateway – requires ADC 12.1 and newest Workspace app.
    • SAML iDP Signing certificate is not expired. ADC administrators know how to update the Signing certificate.
    • relaystateRule configured in SAML Action to prevent session hijack – see https://support.citrix.com/article/CTX316577
  • Native OTP:
    • OTP Active Directory attribute is encrypted.
  • nFactor login fields are encrypted.

NetScaler ADC GSLB

  • If a DNS name resolves to multiple IP addresses, then the DNS name should be GSLB-enabled for automatic failover.
  • DNS Records are delegated to two or more ADC ADNS services, usually in separate data centers.
    • NS records and SOA records are added to ADC for delegated domain names and/or delegated sub zones.
  • All NetScaler ADC nodes that have ADNS listeners for the same DNS name have identical GSLB configuration.
  • Public GSLB Services have monitors that verify remote Internet connectivity – don’t give out IP if users can’t reach it.
  • Separate NetScaler ADC appliances for public DNS and internal DNS – If both are on one appliance, then how are the DNS configurations separated?
  • RPC nodes for Metric Exchange Protocol (MEP) should have Secure enabled.
  • Firewall should only allow the MEP endpoints to communicate over 3009 – don’t open to whole Internet.
  • If Static Proximity:
    • Static Proximity database is current.
    • GSLB Services show correct geo location.
    • Custom Entries are added for internal subnets.
  • If DNS Views, DNS Views are configured on all GSLB Services – if GSLB Service doesn’t have a DNS View, then that GSLB Service might not function correctly.
  • If Active/Active GSLB load balancing, then site persistence is functioning correctly.
  • DNS security options are configured to prevent ADNS Denial of Service.

Detailed Change Log

Last Modified: Nov 9, 2021 @ 1:47 pm

This post lists all minor and major changes made to carlstalhood.com since May 2020.

Citrix Workspace app 2409.1

Last Modified: Dec 9, 2024 @ 11:26 am

Navigation

Workspace app is the new name for Receiver. This post applies to all Workspace app versions, including the Current Release version 2409.1 and the LTSR version 2402 CU1 Hotfix 3.

đź’ˇ = Recently Updated

Change Log

Workspace app Versions

Citrix Workspace app uses a YYMM (year/month) versioning format, of which version 2409.1 (24.9.1.207) is the newest Current Release. See Citrix Docs for the list of new features, some of which only apply to Citrix Cloud.

Workspace app 2311 and newer have a new installer interface.

Workspace app 2303 and newer automatically install the App protection components with an option to start them after installation. Older Workspace apps have an option to install App protection and if you don’t select this and later want App protection then you must uninstall Workspace app and reinstall it.


  • See App Protection at Citrix Docs to enable App protection for the authentication screen. Workspace app 2305.1 and newer automatically start it for authentication if you have selected the Start App Protection check box during installation.

The newest Current Release version of Workspace app is version 2409.1.

The newest LTSR (Long Term Service Release) version of Workspace app is version 2402 Cumulative Update 1 Hotfix 3.

Workspace app Modules

The Workspace app installer deploys multiple modules. Here are the important ones:

  • ICA Engine (wfica.exe) – process that uses the ICA protocol to connect to published apps and desktops.
  • Self-Service (selfservice.exe) – gets icons from StoreFront and displays them in a Window. When an icon is clicked, Self-service passes the ICA file to the ICA Engine to establish a connection.
  • Single Sign-on (SSON) for ICA (ssonsvr.exe) – captures user credentials and submits them to VDAs after an ICA connection is established
  • Workspace Auto-Update (CitrixReceiverUpdater.exe) – Notifies users of Workspace app updates. The most recent name for this component is Citrix Workspace Update.

Custom ICA files are no longer supported. However, Ryan Butler has created a script that asks StoreFront for an ICA file. Explicit credentials are supported. Find the script at Github.

Workspace app Discovery and Beacon Process

If you are using Workspace app’s built-in user interface (instead of a web browser), then Workspace app first prompts you to perform discovery, which is also called Add Account.

Workspace app will contact the FQDN and request download of the StoreFront Provisioning File.

  • If you entered a StoreFront FQDN, then Workspace app will download the Provisioning File directly from the StoreFront server.
  • If you entered a Gateway FQDN, then Gateway will first prompt the user to authenticate. After authentication, Gateway will connect to its configured Account Services address, and download the Provisioning File from StoreFront. The Account Services address is configured in the NetScaler Gateway Session Profile on the Published Applications tab.

If your StoreFront server is configured with multiple stores, then the user will be prompted to select a store. Unfortunately, there’s no configuration option in NetScaler Gateway to force a particular store.

The Provisioning File downloaded from StoreFront is an XML document containing values for several items configured in the StoreFront console. You can export the Provisioning File from the StoreFront console by right-clicking a Store.

The ReceiverConfig.cr Provisioning File looks something like this:

Here are the values in the Provisioning File:

  • Address – the Base URL configured in StoreFront Console
  • Internal Beacon – as configured in StoreFront Console. This can be the Base URL, or a manually specified URL.
  • External Beacons – as configured in StoreFront Console
  • Gateways – as configured in StoreFront Console. If there are multiple Gateways, when enabling Remote Access on the Store, then only one Gateway is selected as Default
  • SRID – Store ID. An important value to consider for multi-datacenter configurations. The SRID is set when the Store is created. It can also be changed by editing C:\inetpub\wwwroot\Citrix\Roaming\web.config.

Workspace app reads the Provisioning File, and configures itself by inserting the file’s contents into the user’s registry. The values are located under HKCU\Software\Citrix\Dazzle\Sites and HKCU\Software\Citrix\Receiver\SR. If you performed discovery through NetScaler Gateway, notice that the internal Base URL is added to the user’s registry.

Once Workspace app is configured, it then performs the following steps:

  1. Attempt to connect to the Internal Beacon.
  2. If the Internal Beacon is reachable, connect directly to the StoreFront Base URL (Address).
  3. If the Internal Beacon is not reachable:
    1. Attempt to connect to the External Beacons. If the External Beacons are not reachable, then stop attempting to connect.
    2. Connect to the Gateway address configured in the Provisioning File. If there is more than one Gateway, connect to the Gateway that is marked as the Default.

Here are some interesting notes on this connection process:

  • The FQDN you entered during Discovery has absolutely nothing to do with how Workspace app connects to StoreFront or Gateway. The actual connection process is controlled by the contents of the Provisioning File, not the Discovery address.
  • If the Provisioning File has multiple Gateways defined, Workspace app uses whichever Gateway is marked as Default. Workspace app completely ignores whatever Gateway FQDN you entered during Discovery. To use a non-default Gateway, the user must manually select the other Gateway in Workspace app’s Advanced Preferences.

In StoreFront Console, if any configuration changes are performed that affect the Provisioning File, it takes an hour for Workspace apps to reconfigure themselves automatically. Or users can remove Accounts and re-add (or Reset Citrix Workspace) so that the updated Provisioning File is imported.

Here are some additional methods of performing Workspace app Discovery:

  • After exporting the Provisioning File from StoreFront Console, distribute it to users, and ask them to double-click it.


  • After logging in to Receiver for Web (StoreFront), at the top right, click the username, and click Activate. This downloads the receiverconfig.cr file, which is identical to the one you can export from StoreFront Console. The user then must run the downloaded file.

Virtual Monitors

In Workspace app 1812 and newer, when connected to a published desktop on a single monitor, you can split the screen into virtual monitors. This feature is intended for large 4K monitors.

  • In the desktop toolbar at the top of the screen, click Preferences.
  • Switch to the Monitor Layout tab.
  • On the bottom, select Horizontal or Vertical, then click somewhere in the blue box to draw a line. The single monitor will be split along this line. You can set different DPI for each portion of the virtual display.
  • Right-clicking one of the split sections changes that section to the primary display.
  • Click OK when done.
  • In the toolbar, click Window to resize it to a window, and then click Full Screen to cause your virtual monitor configuration to take effect.

Uninstall Old Clients

Workspace app installer can do a force uninstall of old clients before installing the new version:

  • In Workspace app 2309 and newer, run CitrixWorkspaceApp.exe /CleanInstall /Silent
  • In Workspace app 1909 and newer, run CitrixWorkspaceApp.exe /ForceInstall /Silent.
  • In Workspace app 1908 and older (including Receiver), run CitrixWorkspaceApp.exe /RCU /Silent or CitrixReceiver.exe /RCU /Silent.

Citrix CTX325140: How to Remove Client Files Remaining on System after Uninstalling Receiver for Windows.

Installation and Configuration

Administrator privileges – Administrator privileges are required to install any missing prerequisites.

Internet required – Recent versions of Workspace app download and install Microsoft Edge WebView2 Runtime, .NET Desktop Runtime 6.0.20, .NET Framework 4.8, and Visual C++. Internet access is required for the Workspace app installer to download these install files. Or there’s an Offline Installer for Workspace app 2309 and newer.

.NET Desktop Runtime 6.0.20 – Workspace app 2309 and newer will install x86 .NET Desktop Runtime 6.0.20 if it’s not already installed.

This section contains a summary of all common command line switches, registry keys, and policy settings for Workspace app.

Links:

Workspace app 2203 LTSR CU2 and Workspace app 2212 and newer fix security vulnerabilities.

CitrixWorkspaceApp.exe current release version 2409.1 or LTSR version 2402 CU1 can be installed by simply double-clicking it.

  • LTSR Workspace app does not support Browser Content Redirection.
  • Workspace app 2006 and newer do not support Windows 7.
  • Workspace app 2206 and newer enable DPI Matching by default. DPI Matching can be disabled through client-side group policy, or in the Advanced Preferences in Workspace app 2212 and newer. DPI Matching prevents connections to CVAD 7.15. Multi-session VDAs with version 1912, by default, have DPI Matching disabled, but can be enabled in the VDA’s registry. See CTX460068 for details.
  • Workspace app 2311 and newer have a new interface for installation.

  • Workspace app 2402 and newer ask if you want to install the Microsoft Teams VDI Plugin or not. This is for Teams 2.1 and newer.


Administrator vs non-administrator

  • Non-administrator – If a non-administrator installs Workspace app, then each non-administrator that logs in to the same workstation will have to reinstall Workspace app.
    • Non-administrator installations are installed to %USERPROFILE%\AppData\Local\Citrix\ICA Client for each user.
  • Administrator – If CitrixWorkspaceApp.exe is installed using an administrator account. then the Workspace app only needs to be installed once.
    • Administrator installations are installed to C:\Program Files (x86)\Citrix\ICA Client.
    • Administrator installations of Workspace app 1912 and newer can be manually upgraded by non-administrators by clicking Check for Updates. Older versions cannot be upgraded by non-administrators.
  • Conflicts – If an administrator install of Workspace app is performed on a machine that has non-administrator installs of Workspace app, then the two installations will conflict. Best option is to uninstall non-admin Workspace app and Receiver before installing admin Workspace app. Otherwise, the user’s profile probably has to be reset before Workspace app is functional again.

Global App Configuration Service

Global App Configuration Service (GACS) is a Citrix Cloud service that can push configurations to Workspace app clients. This Citrix Cloud service is now available to all on-premises customers even if you don’t own any Citrix Cloud entitlements.

  1. Login to https://citrix.cloud.com. If you don’t have a Citrix Cloud account, then login using your Citrix.com account credentials and it will create a Citrix Cloud account.
  2. Use the top left hamburger menu to go to Workspace Configuration.
  3. Switch to the tab named App Configuration.
  4. Click Switch URL.
  5. Near the bottom, click Claim URL.
  6. Click Add URL to add your on-premises StoreFront/Gateway URL. See Citrix Docs for details. GACS uses this URL to determine which Workspace app clients should receive the settings that you configure.
  7. Back in the App Configuration page, you can now configure Workspace app settings as desired. Workspace apps that have stores under the claimed URL will then receive these settings.

Auto-Update

Workspace app supports auto-update.

Some notes:

  • If Workspace app 1912 or newer is installed as administrator, then non-administrators can click Check for Updates to manually update Workspace app. To prevent this, use group policy to disable Citrix Workspace Updates.

    • Older versions of Workspace app cannot be upgraded by non-administrators.
  • If Workspace app is installed on a VDA, auto-update is automatically disabled. This includes Remote PC.
  • Auto-update can be limited to LTSR updates only.
  • Auto-update is configurable through several mechanisms: group policy, StoreFront, Workspace app GUI, installer command line. See Configuring Citrix Workspace Updates at Citrix Docs.
  • Workspace app 2107 and later let users select an Update channel.

  • See George Spiers Citrix Receiver for Windows Auto-Update.

Auto-update is configured using Workspace app group policy under the Citrix Workspace Updates, or Auto-Update node.


Or use Global App Configuration Service.

Workspace app Splash Screen

Workspace app shows a Splash Screen on first launch with the text “Citrix Workspace app extends the capabilities of Citrix Receiver”.

To prevent this splash screen, set the following registry value: (source = Dennis Span on Twitter)

  • Key = HKEY_CURRENT_USER\SOFTWARE\Citrix\Splashscreen
    • Value (REG_SZ) = SplashscreenShown = 1

Add Account Wizard

After installation, Workspace app will launch and ask you to add an account. If Workspace app, notice the checkbox Do not show this window automatically at logon.

FTU (First Time Use aka Add Account Wizard) will be displayed only if a store is not configured. If a store is already configured via command line, GPO, or Citrix Studio, then FTU screen will not be available after installation. Otherwise, FTU can be suppressed by doing one of the following:

  • Rename CitrixWorkspaceApp.exe to CitrixWorkspaceAppWeb.exe.
  • Install using a command line switch:
    • CitrixWorkspaceApp.exe /ALLOWADDSTORE=N
  • Set the registry value: HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Citrix\EnableFTU=dword:00000000 (or EnableX1FTU =dword:0)
  • Disable the EnableFTU policy setting in Receiver.admx.
  • Change Registry values post installation to suppress the Add Account window. Under HKLM\Software\Wow6432Node\Citrix\Dazzle, set AllowAddStore value to N.
  • Set the registry value: HKEY_LOCAL_MACHINE\Software\Citrix\Receiver\NeverShowConfigurationWizard (REG_SZ) = true
  • Also see Suppressing Add Account dialog at Citrix Docs.

Discover Hidden Stores

When Workspace app is first launched, it must perform Discovery, which is the process of downloading the .xml provisioning file from StoreFront. Discovery is performed by entering a StoreFront FQDN or Gateway FQDN. To discover a hidden store (a store that’s not advertised), add ?StoreName to the end of the FQDN. CTX214819 How to configure Receiver to a Store that is not advertised.

CitrixWorkspaceApp.exe Command line switches

CTX227370 Citrix Workspace app Commandline Tool contains a GUI tool to build your installer command line.

For unattended installation of Workspace app, see CTA Dennis Span Citrix Workspace App unattended installation with PowerShell or Citrix Receiver unattended installation with PowerShell.

Installer Command Line Switches are detailed at Configure and install Receiver for Windows using command-line parameters at Citrix Docs. Common Command line switches include the following:

  • /silent
  • /includeSSON – enables pass-through authentication. GPO configuration is also required as detailed below.
    CitrixWorkspaceApp.exe /includeSSON
  • /ALLOWADDSTORE=A – by default, only SSL (HTTPS) stores are accepted. To allow non-SSL stores:
    CitrixWorkspaceApp.exe /ALLOWADDSTORE=A
  • /STORE0 – To add a store from the installation command line:
    CitrixWorkspaceApp.exe STORE0="AppStore;https://Citrix.corp.com/Citrix/MyStore/discovery;on;App Store"
    • Workspace App can discover the Store through NetScaler Gateway.
      CitrixWorkspaceApp.exe STORE0="AppStore;https://gateway.corp.com#MyStore;On;App Store"
  • /SELFSERVICEMODE=False – disables the Self-Service interface and enables shortcut-only mode:
    CitrixWorkspaceApp.exe /SELFSERVICEMODE=False
  • /AutoUpdateCheck=auto /AutoUpdateStream=LTSR – enables Citrix Workspace Update notifications and sets it to LTSR Branch only. AutoUpdateCheck can also be set to manual or disabled. AutoUpdateStream can also be set to Current. See Configuring Citrix Workspace Updates at Citrix Docs.
    CitrixWorkspaceApp.exe /AutoUpdateCheck=auto /AutoUpdateStream=LTSR
  • /ENABLEPRELAUNCH=True – enables prelaunch:
    CitrixWorkspaceApp.exe /ENABLEPRELAUNCH=True
  • /ALLOW_CLIENTHOSTEDAPPSURL=1 – enables Local App Access:
    CitrixWorkspaceApp.exe /ALLOW_CLIENTHOSTEDAPPSURL=1

Registry values

HKLM\Software\Wow6432Node\Citrix\Dazzle on the Workspace app machine. All are of type REG_SZ (string) unless specified. Note: several of these are configurable using the Reciever.admx group policy template.

  • SelfServiceMode (REG_SZ) = False – Turns off Workspace app’s Self-Service interface.
  • PutShortcutsOnDesktop (REG_SZ) = True – If Self-Service interface is disabled, places all shortcuts on desktop.
  • UseDifferentPathsforStartmenuAndDesktop (REG_SZ) = True
    • UseCategoryAsStartMenuPath (REG_SZ) = True or False
    • UseCategoryAsDesktopPath (REG_SZ) = True or False
  • StartMenuDir (REG_SZ) = name of folder on Start Menu where shortcuts are placed.
  • DesktopDir (REG_SZ) = name of folder on Desktop where shortcuts are placed
  • EnablePreLaunch (REG_SZ) = True – If SSON is enabled then PreLaunch is already enabled by default.
  • AllowAddStore (REG_SZ) = A – Only if using http (instead of https) to connect to StoreFront.
  • AllowSavePwd (REG_SZ) = A – Only if using http (instead of https) to connect to StoreFront.
  • UserDomainName (REG_SZ) = pre-filled domain name
  • InitialRefreshMinMs (REG_SZ) = 1 – minimizes the launch delay before contacting store
  • InitialRefreshMaxMs (REG_SZ) = 1 – minimizes the launch delay before contacting store
  • RefreshMs (REG_SZ) = 3600000 (1 hour) – interval for Receiver icon refreshes. 1 hour is the default value.
  • MaxSimultaneousFetches (REG_DWORD) = 6  – improves the time of loading icons in Start Menu
  • MaxSimultaneousSubscribes (REG_DWORD) = 6 – improves the time of loading icons in Start Menu
  • DontWarnOfRemovedResources (REG_SZ) = True – prevents dialog boxes when resources are removed from the server. (or False)
  • SilentlyUninstallRemovedResources (REG_SZ) = True – prevents dialog boxes when resources are removed from the server
  • PreferTemplateDirectory (REG_SZ) = UNC path or local path containing shortcuts copied by the prefer keyword. Give the shortcuts a short name.
  • PnaSSONEnabled (REG_SZ) = True – Enables Single Sign-on for PNAgent (Web Interface).
  • WSCReconnectMode (REG_SZ) = 3 (default) – If this Workspace app is running inside a VDA published desktop, set it to 0.
  • AlwaysUseStubs (REG_SZ) = True. Workspace app and Receiver 4.3.100 and newer don’t create .exe stubs by default. Set this to create .exe stubs. Also see Citrix CTX211893 Controlling Shortcut behavior in Receiver 4.3.100.
  • DontCreateAddRemoveEntry (REG_SZ) = True – don’t create “Delivered by Citrix” entries in Programs and Features
  • DesktopNameFormatString = format string for shortcut names – For example “{0}_{1}_{2}_{3}”. See the link for details.
  • SelfServiceFlags (REG_DWORD) = 4 – prevents duplicate shortcuts when roaming and Desktop is redirected.
  • ReEvaluateNetwork (REG_SZ) = true – for Beacon detection with Single FQDN

To prevent the Win+G popup on Windows 10 machines:

  • HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\GameDVR
    • AllowGameDVR (REG_DWORD) = 0

To allow adding non-HTTPS stores to Workspace app:

  • HKLM\Software\Wow6432Node\Citrix\AuthManager
    • ConnectionSecurityMode (REG_SZ) = Any

To increase ICA bandwidth consumption over high latency links, set:

  • HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\ICA Client\Engine\Configuration\Advanced\Modules\TCP/IP

To prevent beacon probing from using proxy, set:

  • HKEY_LOCAL_MACHINE\Software\WOW6432Node\Citrix\Receiver\inventory
    • BeaconProxyEnabled (REG_DWORD) = 0

To enable foreground progress bar, set:

  • HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\ICA Client
    • ForegroundProgressBar (REG_DWORD) = 1

For client-to-server file type redirection, set:

  • HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\ICA Client\Engine\Configuration\Advanced\Modules\ClientDrive
    • NativeDriveMapping=”TRUE”

To fix USB devices that emulate a keyboard, set:

  • HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\ICA Client\Engine\Lockdown Profiles\All Regions\Lockdown\Virtual Channels\Keyboard
    • KeyboardTimer=”10”

To remember manually mapped USB devices when auto-connection is enabled, set: (2409 and newer)

  • HKLM\SOFTWARE\Citrix\ICA Client\GenericUSB (same path for 32-bit and 64-bit, create the keys)
    • RememberConnections (DWORD) = 0x1

To override the devices that are mapped using optimized channels instead of generic USB, see Citrix CTX123015 How to Configure Automatic Redirection of USB Devices

Group Policy Settings

Copy the Workspace app ADMX template (C:\Program Files (x86)\Citrix\ICA Client\Configuration\receiver.admx) to C:\Windows\PolicyDefinitions (or Sysvol). Also copy receiver.adml to C:\Windows\PolicyDefinitions\en-us (or Sysvol).

Edit a GPO that applies to client machines, go to Computer Configuration | Policies | Administrative Templates | Citrix Components | Citrix Workspace and configure the following:

  • To enable pass-through authentication: go to | User Authentication |.
  • To add a store, go to | StoreFront |
    • StoreFront Accounts List – see the help text
  • To enable Auto-Update, go to | AutoUpdate | or | Citrix Workspace Updates |. (the node was renamed in 4.11 and Workspace app)
    • Enable or Disable AutoUpdate or
    • Citrix Workspace Updates
  • To modify the desktop viewer toolbar, go to | Client Engine |
    • Desktop Viewer Toolbar Options (2409 and newer)
  • To enable Local App Access, go to | User Experience |
    • Local App Access Settings
  • To prevent the endpoint from sleeping while session is active, go to | User Experience |
    • Power Management (2405 and newer)
  • To configure the Self-Service interface, go to | SelfService |
    • Set Manage SelfServiceMode to Disabled to completely disable the Self-Service window. This causes all icons to be placed on the Start Menu.
    • Enable Manage App Shortcut and configure it as desired.
      • To allow the Self-Service window, but prevent it from automatically opening (reside in systray), tick Prevent Citrix Workspace performing a refresh of the application list when opened. Source
    • Enable Control when Workspace attempts to reconnect to existing sessions. If this is a VDA published desktop, set it to Disabled. Otherwise configure it as desired.
    • Set Enable FTU to Disabled  to prevent the Add Account wizard from displaying.
    • Enable Allow/Prevent users to publish unsafe content if publishing content that’s opens a file or file share.

Enable automatic client drive and client microphone mapping:

  • In a client-side GPO, add the GPO ADM template from http://support.citrix.com/article/CTX133565.
  • Enable the setting Create Client Selective Trust Keys. See Below for details.
  • Configure the FileSecurityPermission setting in one or more of the regions.
  • Configure the MicrophoneAndWebcamSecurityPermission setting in one or more of the regions.

Citrix CTX203658 Start Menu Icons Set to Default (Blank Document) After Update to Receiver 4.3.100 – Windows 8 and newer

  • Computer Configuration | Policies | Administrative Templates | Windows Components | File Explorer
    • Allow the use of remote paths in file shortcut icons = enabled

For Single Sign-on in Windows 11 24H2 and newer, enable the following GPO setting:

  • Computer Configuration | Policies | Administrative Templates | Windows Components | Windows Logon Options
    • Enable MPR notifications for the System = enabled

Deploy Workspace app using Active Directory

To deploy Workspace app using Active Directory, configure a GPO with a computer startup script that runs the Workspace app installer executable. Citrix provides sample scripts that can be downloaded from one of the Workspace app download pages (Workspace app current release version 2409.1, or LTSR version 2402 CU1, by expanding Downloads for Admins (Deployment Tools).

Also see CTA Dennis Span Citrix Receiver unattended installation with PowerShell.

Change Workspace App’s Store Configuration, including Reset Citrix Workspace

You can change Workspace app’s configured Store/Account with a couple command lines:

"C:\Program Files (x86)\Citrix\ICA Client\SelfServicePlugin\SelfService.exe" -deleteproviderbyname Corporate
"C:\Program Files (x86)\Citrix\ICA Client\SelfServicePlugin\SelfService.exe" -init -createprovider Corporate https://storefront.corp.com/Citrix/Store/discovery



It is sometimes necessary to Reset Citrix Workspace by right-clicking the Workspace app systray icon, clicking Advanced Preferences, and clicking the Reset link. You can do this from the command line by running "C:\Program Files (x86)\Citrix\ICA Client\SelfServicePlugin\CleanUp.exe" -cleanUser -silent. See CTX140149 How to Reset Receiver Using the Command Line.

Workspace app Group Policy ADMX Template

Many of the Workspace app configuration settings must be configured in group policy. These Workspace app settings are only available after installing the GPO templates.

Alternatively, Citrix Cloud customers can use Global App Configuration Service to configure Workspace app. Today it’s a REST API, but Citrix has started adding a GUI at Workspace Configuration > App Configuration.

For GPO configuration:

  1. From a machine that has Workspace app installed, find the .admx and .adml files in the C:\Program Files (x86)\Citrix\ICA Client\Configuration.
    • You can also download the ADMX files from one of the Workspace app download pages (Workspace app current release version 2409.1, LTSR version 2402 CU1, by expanding Downloads for Admins (Deployment Tools).
  2. Copy the CitrixBase.admx and receiver.admx files. Also copy the en-US folder. In Workspace app, the files are still named receiver.admx.
  3. Go to your domain’s SYSVOL share and in the Policies folder look for a PolicyDefinitions folder. If one exists, paste the .admx file directly into the PolicyDefinitions folder. If this folder doesn’t exist in SYSVOL, instead copy the .admx file to C:\Windows\PolicyDefinitions. Overwrite any existing Receiver ADMX files.
  4. The GPO settings can then be found at one of the following:
    • Computer Configuration > Policies > Administrative Templates > Citrix Components > Citrix Workspace
    • Computer Configuration > Policies > Administrative Templates > Citrix Components > Citrix Receiver
  5. For example, you can disable Customer Experience Improvement Program (CEIP) from here.
  6. See https://www.carlstalhood.com/delivery-controller-cr-and-licensing/#ceip for additional places where CEIP is enabled.
  7. Workspace app 1905 and newer has a setting to Disable sending data to 3rd party (e.g., Google Analytics).
  8. Workspace app 1905 and newer let you disable embedded browser caching.
  9. Workspace app 1905 and newer have NetScaler LAN Proxy under Network routing > Proxy.
  10. Workspace app 1808 and newer have User authentication | Single Sign-on for NetScaler Gateway.
  11. Citrix Workspace Updates, (aka AutoUpdate) can be configured using group policy. See Configuring Citrix Workspace Updates at Citrix Docs.
  12. Workspace app 1912 and newer can be configured to require in-memory ICA files only. The setting called Secure ICA file session launch is under the Client Engine node. See Citrix Docs for details on in-memory ICA files instead of writing ICA files to disk.
  13. The DPI node has a setting called High DPI that lets you disable DPI matching, which is enabled by default in Workspace App 2206 and newer.

    • Workspace app 2210 and newer let you use the GUI to re-enable High DPI.
    • Native resolution means DPI matching, whereas Yes means force high DPI.
  14. Workspace app has settings to hide Advanced Preferences, enable/disable showing the DPI option, and enable/disable H265.
  15. Workspace app 4.8 and newer have SplitDevices GPO setting under Citrix Workspace | Remoting client devices | Generic USB Remoting. See Configuring composite USB device redirection at Citrix Docs.
  16. Workspace app 2212 and newer by default disable App Protection for the authentication screen and icons list. To enable them, configure User authentication | Manage App Protection and SelfService | Manage App Protection.

  17. Workspace app 2303 and newer have Anti-DLL Injection for App Protection. It is disabled by default. Enable it in a GPO at Citrix Components | Citrix Workspace | App Protection | Anti-DLL Injection. See Citrix Docs for details.
    App running

Pass-through Authentication

Citrix blog post – A Comprehensive Guide to Enabling Pass-Through Authentication with XenDesktop 7.5

  1. Run the command
    Set-BrokerSite -TrustRequestsSentToTheXmlServicePort $True from a Windows PowerShell command prompt on a Delivery Controller.

  2. Login to the PC as an administrator.
  3. If installing Workspace app, as an administrator, during installation, on the Enable Single Sign-on page, check the box next to Enable Single Sign-on. Then finish the installation.

  4. To verify that SSON is installed, go to C:\Program Files (x86)\Citrix\ICA Client and look for the file ssonsvr.exe.
  5. And if you open regedit and go to HKLM\SYSTEM\CurrentControlSet\Control\NetworkProvider\Order, you should see PnSson in the ProviderOrder.
  6. Install the receiver.admx (and .adml) template into PolicyDefinitions if you haven’t already.
  7. Edit a GPO that is applied to the client PCs where the Workspace app is installed.
  8. Go to Computer Configuration > Policies > Administrative Templates > Citrix Components > Citrix Workspace.
  9. Expand Citrix Workspace and click User authentication.
  10. On the right, double-click Local user name and password.
  11. Select Enabled and then check the box next to Allow pass-through authentication for all ICA connections. Click OK.
  12. In Workspace app 1808 and newer, you can enable Single Sign-on for NetScaler Gateway.
  13. Ensure that the internal StoreFront FQDN is in the Local Intranet zone in Internet Explorer. You can use a GPO to configure this on the client side.
  14. Local Intranet zone should have Automatic logon only in Intranet zone enabled.
  15. For Windows 11 24H2 and newer, make sure the GPO setting Enable MPR notifications for the System is enabled at Computer Configuration | Policies | Administrative Templates | Windows Components | Windows Logon Options. Make sure HKLM\Software\Microsoft\Windows\CurrentVersion\Policies\System\EnableMPRNotifications is set to 1 on the Workspace app machine.
  16. Logoff Windows and log back on. In Task Manager you should now see ssonsvr.exe. This won’t appear unless you logoff and log back on.
  17. If Workspace app won’t connect or is slow to enumerate icons, then you might have to disable Automatically detect settings in IE.
  18. Right-click the Workspace app icon and click Advanced Preferences.
  19. Click Configuration Checker.
  20. Check the box next to SSONChecker and click Run.
  21. The lines with red x will indicate the issue and corrective action.

StoreFront Accounts

You can use a client-side GPO to add a store (Account) to Workspace app Self-Service.

  1. Install the receiver.admx (and .adml) template into PolicyDefinitions if you haven’t already.
  2. Edit a GPO that applies to endpoint devices that have Citrix Workspace app installed.
  3. Go to Computer Configuration > Administrative Templates > Policies > Citrix Components > Citrix Workspace > StoreFront.
  4. On the right, double-click NetScaler Gateway URL/StoreFront Accounts List.
  5. Select Enabled, and then click Show.
  6. Enter a store path based on the example shown in the Help box. Workspace app lets you enter a Gateway path. Then click OK.
  7. Note: Gateway paths work in GPO, but might not work when specified in the CitrixWorkspaceApp.exe installation command line.

Published Shortcuts and Reconnect

Citrix CTX200924 How to Customize App Shortcuts with Receiver for Windows

Workspace app has a user interface for setting Shortcut Paths. Right-click the Workspace app systray icon, click Advanced Preferences, and then click Shortcuts and Reconnect, or Settings Option.


From Citrix Docs Configuring application delivery: There are several methods of controlling how Workspace app displays shortcuts on the Start Menu and Desktop as detailed below:

  • Workspace app Registry values
  • receiver.admx GPO Template
  • From StoreFront in C:\inetpub\wwwroot\Citrix\Roaming\web.config
  • Published App Keywords (e.g. prefer).
  • Workspace app and Receiver 4.2.100 and newer supports published app Delivery configuration for adding the shortcut to the desktop. This only works if the app is a Favorite, or if Favorites are disabled, or Mandatory Store.

Under HKLM\Software\Wow6432Node\Citrix\Dazzle (or HKCU\Software\Wow6432Node\Citrix\Dazzle) are several registry values related to shortcuts. Some of the settings only apply if SelfServiceMode is set to False. Here are some common options:

  • SelfServiceMode – set to False so Receiver disables the Self-Service interface and automatically places all published shortcuts on the Start Menu and/or Desktop. More details in Configuring application delivery at Citrix Docs.
  • PutShortcutsOnDesktop – set to True to place every app on the desktop
  • DesktopDir – Workspace app places every shortcut on the desktop so it’s probably best to place them in a folder.
  • StartMenuDir – If there is potentially a conflict between local apps and remote apps, then you should place the Start Menu shortcuts in a folder.
  • PreferTemplateDirectory (with KEYWORDS:prefer=shortcutname) – copies the shortcutname from the template directory to the Start Menu and/or Desktop.

If you import the receiver.admx (and .adml) into the PolicyDefinitions folder, under Computer Configuration > Administrative Templates > Citrix Components > Citrix Workspace (or Receiver) is a node called SelfService.

Disable the Manage SelfServiceMode setting to hide the Workspace app Window.

Enable the Manage App shortcut setting to control placement of shortcuts.

Workspace app and Receiver 4.2.100 and newer have the ability to configure (or disable) Workspace Control using group policy. Enable the setting Control when Citrix Workspace attempts to reconnect to existing sessions and configure it as desired.

Prelaunch

Staring with Receiver 4.2, prelaunch is automatically enabled if Workspace app is installed with SSON enabled. Otherwise, set registry values to enable prelaunch. Receiver 4.2.100 prevents the prelaunch icon from appearing on the Start Menu.

  • HKLM\Software\[Wow6432Node\]Citrix\Dazzle
    • EnablePreLaunch (REG_SZ) = true or false

Additional customizations can be configured at:

HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\ICA Client\Prelaunch

  • Name: State
    • REG_SZ: 0 = disable, 1 = just-in-time pre-launch, 2 = scheduled pre-launch
  • Name: Schedule
    • REG_SZ: HH:MM|M:T:W:TH:F:S:SU where HH and MM are hours and minutes. M:T:W:TH:F:S:SU are the days of the week. For example, to enable scheduled pre-launch on Monday, Wednesday, and Friday at 1:45 p.m., set Schedule as Schedule=13:45|1:0:1:0:1:0:0 . The session actually launches between 1:15 p.m. and 1:45 p.m.
  • Name: UserOverride
    • REG_SZ: 0  = HKLM overrides HKCU, 1 = HKCU overrides HKLM

Device Access Behavior (Client Selective Trust)

When connecting to a XenApp/XenDesktop session, you might see the following:

To configure the default behavior, see the Citrix Knowledgebase article How to Configure Default Device Access Behavior of Receiver, XenDesktop and XenApp. Note: there is a bug fixed in Receiver 4.2.100 and newer.

  1. Download the ADMX file from http://support.citrix.com/article/CTX133565.
  2. Copy the .admx and .adml files to PolicyDefinitions (Sysvol, or C:\Windows).
  3. The .adml file goes in the en-US folder.
  4. Edit a GPO that applies to the endpoint devices that are running Receiver.
  5. Go to Computer Configuration | Policies | Administrative Templates | Citrix Components | Citrix Workspace (or Receiver) |  Citrix Client Selective Trust (x64).
  6. Enable the setting Create Client Selective Trust Keys.

  7. Then expand the regions, and configure the permission settings as desired.

Desktop Lock

As an alternative to Workspace app Desktop Lock, see Transformer in Citrix Workspace Environment Manager.

External links:

Use Studio to configure Workspace app Accounts in Published Desktop

In published desktops, Workspace app can be used for placement of shortcuts on the user’s Start Menu and Desktop. Use group policy to hide the common program groups and then use Workspace app to place published applications back on the Start Menu and Desktop based on user’s group membership and subscription preference.

  1. In Citrix Studio, on the left, expand the Configuration node, right-click StoreFront and click Add StoreFront.
  2. Enter a descriptive name for the StoreFront server.
  3. Enter the internal https URL of the load balanced StoreFront servers. Add the path to your store (e.g. /Citrix/Store) and then /discovery on the end of the URL. The full URL would be similar to https://citrix.corp.com/Citrix/Store/discovery. Click OK.
  4. Edit a Delivery Group that has a published desktop and Citrix Workspace app installed.
  5. On the StoreFront page, change the selection to Automatically, using the StoreFront servers selected below, and then check the box next to the StoreFront URL. Click OK. Now when users launch the published desktop, Workspace app will be automatically configured with this URL.

Published Desktop – use Workspace app to control Shortcuts

If you install Workspace app inside a published desktop (Workspace app on a VDA), then Workspace app can get icons from StoreFront and put those icons on the user’s published desktop Start Menu and Desktop. This is an alternative to using a User Experience Management product to control shortcut placement.

Note: Workspace app tends to be slow to create Start Menu shortcuts, so make sure you perform a Proof of Concept to determine how this functionality impacts logon times.

Configuration of Workspace app inside a published desktop is simplified if you have the following minimum versions:

  • Workspace app installed inside the VDA
  • VDA 7.17 or newer
  • StoreFront 3.14 or newer

If you meet these minimum version requirements, then Workspace app installed in the VDA automatically tries to launch published applications on the same local VDA rather than trying to launch them from a different VDA (aka double-hop). This feature is called vPrefer.

Do the following for all versions of Workspace app, VDA, and StoreFront, whether using the Prefer keyword or not:

  1. Make sure Workspace app or Receiver version 4.11 or newer is installed on the VDA.
  2. Install the Workspace app ADMX files if you haven’t already. For vPrefer, make sure they are the ADMX files from Workspace app.
  3. Enable the Group Policy setting Remove common program groups from Start Menu and apply it to non-administrators.
    • This removes all Public (aka All Users) Start Menu shortcuts. Workspace app will re-add the shortcuts based on user group membership.
  4. On the VDA, configure the following Workspace app Registry keys (or corresponding settings in the receiver.admx GPO template):
    • HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\Dazzle\WSCReconnectMode=”0″ so Workspace app doesn’t try to reconnect to the published desktop you’re already running.
    • HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\Dazzle\SelfServiceMode to False. This turns off the Workspace app Self-Service GUI and acts like all icons are subscribed. Otherwise, only subscribed (favorited) icons would be placed on the Start Menu and Desktop.
    • HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\Dazzle\UseCategoryAsStartMenuPath = True. This creates a Start Menu folder based on the published app’s configured Category.
  5. Configure each desired published app to Add shortcut to user’s desktop.

    • Or, configure HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\Dazzle\PutShortcutsOnDesktop = True to place all icons on the desktop.
  6. To control icon placement, configure the following registry values:
    • HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\Dazzle\StartMenuDir to place published applications in a sub-folder. Note: Windows Server 2012 and Windows 10 and newer only supports a single level of Start Menu folders, so setting this effectively turns off published app categories.
    • HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\Dazzle\DesktopDir to place published applications in a sub-folder on the desktop.
  7. Pass-through authentication:
    1. In a GPO that applies to the VDA, import the receiver.admx file, and set Local user name and password to Enabled. Check the box next to Allow pass-through authentication for all ICA connections.
    2. If you’re using Gateway internally, and if Workspace app 1808 or newer, then also enable Single Sign-on for NetScaler Gateway.
    3. In a user-level GPO that applies to the VDA, add the StoreFront FQDN to the Local Intranet zone. Make sure it is not in the Trusted Sites zone, or enable Automatic logon with current user name and password for the Trusted Sites zone.
    4. Make sure ssonsvr.exe is running after you login to the VDA. If not, troubleshoot it.
  8. When configuring Citrix Profile Management, make sure !ctx_startmenu! is not excluded from roaming.
  9. In Citrix Studio, configure a Delivery Group with delivery type = Desktop and Applications. Assign users to the delivery group, and the individual published applications (if visibility is limited).
    1. In Citrix Studio, edit each published application, and on the Delivery tab, specify a category. This will become the Start Menu folder name.
    2. If Workspace app Self Service Mode (GUI) is enabled, in Studio, edit each application, and add KEYWORDS:Auto and/or KEYWORDS:Mandatory to the published application description. This forces the applications to be subscribed/favorited. Only subscribed (or Favorite) apps are displayed in the Start Menu and Desktop. Unless you disable Workspace app’s SelfService interface as described earlier.
    3. Another option is to go to the StoreFront Console, click Stores on the left, and on the right, click Configure Store Settings, and click Disable User Subscriptions. This causes all apps to appear on the Start Menu and/or Desktop depending on Workspace app configuration.
  10. Create a group policy that applies to VDAs, and configure the group policy to define the Store URL for Workspace app similar to https://citrix.corp.com/Citrix/Store/discovery. Replace the FQDN with your load balanced StoreFront FQDN. Also replace the path to the store with your store path. Make sure there is /discovery on the end. By default, Workspace app and Receiver only support https.
    1. Your StoreFront store probably delivers both application and desktop icons. If you want to filter out the desktop icons, then create a new StoreFront store, and configure the Workspace app on the VDA to connect to the new Store.
    2. In StoreFront Console, click the store for VDAs, and click Configure Store Settings. On the Advanced Settings page, in the Filter resources by type row, choose Citrix.MPS.Desktop.
  11. For vPrefer in Workspace app, VDA 7.17 (or newer), and StoreFront 3.14 (or newer), edit a GPO that applies to the VDAs.
    1. Go to Computer Configuration | Policies | Administrative Templates | Citrix Components | Citrix Workspace (or Receiver) | SelfService.
    2. Edit the setting vPrefer. This setting is only in Workspace app ADMX templates from Workspace app.
    3. Set it to Allow all apps. Source = 7.17 vPrefer – not working with 32Bit Apps at Citrix Discussions.
  12. On your Delivery Controller, in PowerShell, run set-brokersite -TrustRequestsSentToTheXmlServicePort $true
    • This is required for Pass-through Authentication from Workspace app.
  13. Configure your client devices to connect to the published desktop.
    1. When users connect to the published desktop, Workspace app will auto-launch and hopefully auto-login.
    2. If Workspace app Self-Service Mode is disabled, all published applications should automatically appear in the Start Menu and Desktop.
    3. If Workspace app Self-Service Mode is enabled, then only applications with KEYWORDS:Auto and/or KEYWORDS:Mandatory in the published application description will be displayed. Users can open the systray icon to subscribe to more applications.
    4. Users can copy icons from the Start Menu to the desktop. Make sure the user Copies the icon and doesn’t Move it.
    5. Users can then launch applications directly from the Start Menu, from the Desktop, or from the Workspace app (if the Self-Service interface is enabled).
    6. If Workspace app 4.11 (or newer), VDA 7.17 (or newer), and StoreFront 3.14 (or newer), then vPrefer is enabled by default. When launching an app icon that came from Workspace app, Workspace app checks the local VDA machine to see if the application can be launched on the local VDA instead of by creating a new Citrix double-hop session.
    7. If the application is installed locally on the VDA then the local application shortcut should launch quickly. If the application is on a different delivery group then a second (double-hop) Citrix HDX/ICA connection will be established.
    8. If the user deletes Workspace app shortcuts from the Start Menu, you can get them back by going to the systray icon and refreshing the applications. Or sometimes you have to reset Workspace app.

If you are running components older than Receiver 4.11, VDA 7.17, and StoreFront 3.14, then you’ll need to configure the prefer keyword to get Receiver delivered icons to launch on the local VDA instead of in a new double-hop Citrix connection.

  1. Enable the Group Policy setting Remove common program groups from Start Menu and apply it to non-administrators.
    1. For applications that are installed on the same VDA that is publishing the desktop, configure Group Policy Preferences to recreate the application shortcuts based on Active Directory group membership. Applications on other delivery groups are handled by Receiver.
    2. Or use the prefer keyword to copy shortcuts from the PreferTemplateDirectory.
  2. On the VDA, configure the following Receiver Registry keys (or corresponding settings in the receiver.admx GPO template):
    • HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\Dazzle\PreferTemplateDirectory = a UNC path or local path containing shortcuts to be copied by the prefer keyword. This can point to C:\ProgramData\Microsoft\Windows\Start Menu.
  3. In Citrix Studio, configure a Delivery Group with delivery type = Desktop and Applications. Assign users to the Delivery Group and the applications (if visibility is limited).
    1. In Studio, edit each application and change KEYWORDS:Prefer to KEYWORDS:prefer. Notice the lower case p. It doesn’t work with uppercase P.
      • With the prefer keyword, if you publish an application that is also created using Group Policy Preferences, the Group Policy Preferences icon will take precedence. This is good. Otherwise the Receiver published application icon would result in a new Citrix double-hop session.
      • See Ralph Jansen Citrix Receiver 4.1 Prefer keyword examples
    2. If using the prefer keyword with the PreferTemplateDirectory, enter it as KEYWORDS:prefer=shortcutname where shortcutname is the name of the shortcut that is copied from the Template directory.
  4. Configure your client devices to connect to the published desktop.
    1. When users connect to the published desktop, Group Policy Preferences will create shortcuts to local applications.
    2. Receiver will auto-launch and hopefully auto-login.
    3. If Receiver Self-Service Mode is disabled, all published applications should automatically appear in the Start Menu and Desktop.
    4. If Receiver Self-Service Mode is enabled then only applications with KEYWORDS:Auto and/or KEYWORDS:Mandatory in the published application description will be displayed. Users can open the systray icon to subscribe to more applications.
    5. For published applications with KEYWORDS:prefer=shortcutname, Receiver should copy icons from the template directory to the Start Menu and/or Desktop. See below for considerations.
    6. Users can copy icons from the Start Menu to the desktop. Make sure the user Copies the icon and doesn’t Move it.
    7. Users can then launch applications directly from the Start Menu, from the Desktop, or from the Receiver (if Self-Service interface is enabled).
    8. If a local shortcut (e.g. Group Policy Preferences shortcut, or copied from template directory) matches a published application with KEYWORDS:prefer then the local shortcut will override the published application icon.
    9. If the application is installed locally on the VDA then the local application shortcut should launch quickly. If the application is on a different delivery group then a second (double-hop) Citrix HDX/ICA connection will be established.
    10. If the user deletes Receiver shortcuts from the Start Menu, you can get them back by going to the systray icon and refreshing the applications. Or sometimes you have to reset Receiver.

Notes regarding Prefer Template Directory

  • Prefer Template Directory can point to C:\ProgramData\Microsoft\Windows\Start Menu, which is the All Users Start Menu.
  • The shortcuts copied from the Prefer Template Directory are renamed to match the published app name.
  • For prefer local apps, any command line parameters specified in the published app are ignored. If you need these command line parameters, add them to the shortcut in the Prefer Template Directory.
  • If you have multiple published apps pointing to the same prefer local shortcut, then only one copy will be made, and it will have the name of only one of the published apps. To workaround this, in the Prefer Template Directory, create separate shortcuts for each published app, and adjust the published app prefer keyword accordingly.
  • Jan Hendrik Meier Automatic Shortcut generation for local installed applications in a Citrix XenDesktop / XenApp 7.x environment has a script that can create shortcuts based on the published apps with prefer keyword. These shortcuts can then be copied to your Prefer Template Directory.

How to Script/Automate Workspace app and Receiver Self-Service

From Citrix Knowledgebase article Driving the Citrix Receiver Self-Service Plug-in Programmatically: by default, Workspace app Self-Service (SSP) activities are driven by user interaction. However, SSP exposes sufficient information for its activities to be scripted.

When SSP builds a shortcut, it builds it to a small stub application in a file %appdata%\Citrix\SelfService\app-name-with-spaces-removed.exe for each resource. These files allow SSP to create a fake ‘install’ record for Add/Remove Software. Running these .exe files causes the application to launch. Note: Workspace app and Receiver 4.3.100 and newer don’t create stubs by default. To enable, set HKLM\Software\Wow6432Node\Citrix\Dazzle\AlwaysUseStubs (REG_SZ) = true.

If you want to drive SSP directly for launch instead of through an .exe stub, look at the keys under HKCU\Software\Microsoft\Windows\CurrentVersion\Uninstall. There will be keys in there named farm-name@@server-farm-name.app-friendly-name. In these keys you’ll find a LaunchString value that shows the relevant parameters. These parameters are user-independent and can therefore be cloned from a reference user to a general case. You can copy and reuse these parameters without interpretation.

Running the command selfservice.exe –init –ipoll –exit starts SSP, performs a refresh (interactive poll) from the current provider, and forces a clean exit.

Additional command line parameters are detailed at Driving the Citrix Receiver Self-Service Plug-in Programmatically.



Citrix Workspace app come with a .dll file that implements the Citrix Common Connection Manager SDK. You can use the CCM SDK to do the following:

  • Launch Sessions
  • Disconnect Sessions
  • Logoff Sessions
  • Get Session Information

Citrix was kind enough to develop a PowerShell module that calls functions from the .dll. Get the CCMPowershellModule from Github. The PowerShell module contains functions like the following:

  • CCMTerminateApplication
  • CCMLaunchApplication
  • CCMGetActiveSessionCount
  • CCMDisconnectAllSessions

Launcher Scripts

Ryan C Butler Storefront ICA file creator at Github. See Create an ICA File from Storefront using PowerShell or JavaScript for more info.

Stan Czerno – Powershell Script to launch one or more Published Applications from Citrix Storefront 2.x through 3.11: the script launches a browser, connects to StoreFront (or NetScaler Gateway), logs in, and launches an icon. This is a very well-written script that uses a .dll file from Citrix Workspace app to display session information.

Citrix Solutions Lab StoreFront Launcher Script at Github. It attempts to closely resemble what an actual user would do by:

  1. Opening Internet Explorer.
  2. Navigating directly to the Receiver for Web site or NetScaler Gateway portal.
  3. Completing the fields.
  4. Logging in.
  5. Clicking on the resource.
  6. Logging off the StoreFront site.

David Ott StoreFront App/Desktop Launch Testing Script uses Internet Explorer to login to StoreFront and launch a resource. Sends email with the result. Uses wficalib.dll to get session information.

Microsoft Teams

Citrix and Microsoft jointly support the delivery of Microsoft Teams from Citrix Virtual Apps and Desktops using optimization for Microsoft Teams. The Teams optimization components are built into VDA and Workspace app. There is no need to install anything separately. The feature is based on Browser Content Redirection so don’t exclude that feature when installing the VDA.

Microsoft Teams optimization/offloading requires the following:

  • Newest version of Microsoft Teams machine-wide installation (ALLUSER=1)
  • Newest version of Citrix VDA
  • Newest version of Citrix Workspace app.

Feature matrix and version support at Citrix Docs shows the required versions of Teams, Citrix VDA, and Citrix Workspace app for various Teams features.

See Citrix Docs Optimization for Microsoft Teams.

Skype for Business

Citrix has a HDX RealTime Optimization Pack for Workspace app that enables offloading of Skype for Business media protocols to the client device. Here are the available versions:

The HDX RealTime Optimization Pack comes in two pieces: the Connector (on the VDA), and the Media Engine (on the Workspace app machine). Usually both pieces must be the same version, but versions 2.3 and higher now allow version mixing.

24-page Citrix PDF Delivering Microsoft Skype for Business to XenApp and XenDesktop Users.

For Skype for Business Location Based Routing, you’ll need the following: (Source = Citrix Derek Thorslund at Location based routing at Citrix Discussions)

  • Microsoft added support for Location Based Routing (LBR) with the virtualized Skype for Business 2016 client (and HDX RTOP 2.1 and above) in the Click-to-Run (C2R) download quite a long time ago, but it hasn’t yet been introduced in the MSI package.
  • It requires setting IsLBRInVDIEnabled on the Skype for Business Server to True:
    $x = New-CsClientPolicyEntry -Name "IsLBRInVDIEnabled" -Value "true"
    Set-CsClientPolicy -Identity "<ClientPolicyName>” -PolicyEntry @{Add=$x}

When offloading voice and video to Workspace app machines, don’t forget to configure QoS on the client machines. See Citrix Blog Post Implementing the Citrix HDX RealTime Optimization Pack: Don’t Forget About QoS/DSCP.

Citrix CTX222459 RealTime Optimization Pack Capability Checker: It will list out endpoint hardware/software information which will be used to process audio and video. The tool is independent of RealTime Optimization Pack version and runs any Windows machine.

Citrix CTX214237 LOPper – Lync Optimization Pack Log Parser: parses log files generated by Citrix HDX RealTime Optimization Pack (HROP) when an audio/video call is made using Lync 2013/Skype for Business (SfB) and shows relevant information in a UI.

Troubleshooting – Citrix QuickLaunch

Citrix CTX219718 QuickLaunch Tool (Testing Application and Desktop Launch) lets you launch Citrix sessions directly from a Controller without needing StoreFront.

You enter a Controller address, credentials, and then it shows you the published resources. You can pick a resource, edit properties on the other tabs, and then Connect. This allows you to easily try different connection properties.

If you run into problems launching a session, use Sysinternals DebugView while running CQL in Debug mode (/debug switch).

Troubleshooting – Workspace app Logging

In Workspace app 2309 and newer, if you right-click the Workspace app icon in the system tray, there’s a Troubleshooting menu with a Collect Logs option.

You can also access Log Collection from Advanced Preferences.

There are a couple methods of logging Workspace app for Windows operations. One method is CTX141751 Citrix Receiver Diagnostics Tool – For Windows, which creates a CDF trace that can be parsed by CDFControl.

Another method is CTX132883 How to Enable Logging on Receiver for Windows Using Registry Entries. The logfiles in %USERPROFILE%\Appdata\Local\Citrix\ are human readable. And CTX206102 Enable SSON Logging Using Registry Key.

Instead of creating the registry keys manually, you can use the following .reg file provided by Wolfgang ThĂĽrr:

Windows Registry Editor Version 5.00

;only for x64 windows os
;import with admin rights
;restart your computer to activate the logging and tracing settings
;create C:\TEMP for the launch ICA log and SSON logn (no environment variables can be used)

;general Workspace app and Receiver logging
;************************
;logpath: %USERPROFILE%\Appdata\Local\Citrix\Receiver
[HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix]
"ReceiverVerboseTracingEnabled"=dword:00000001

;Authentication Manager logging
;******************************
;logpath: %USERPROFILE%\Appdata\Local\Citrix\AuthManager
[HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\AuthManager]
"LoggingMode"="verbose"
"TracingEnabled"="True"
"SDKTracingEnabled"="True"

;Self Service logging
;********************
;logpath: %USERPROFILE%\Appdata\Local\Citrix\SelfService
[HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\Dazzle]
"Tracing"="True"
"AuxTracing"="True"
"DefaultTracingConfiguration"="global all –detail"

;save launch ICA
;***************
;logpath: C:\TEMP\ica.log (no environemnt variables allowed)
[HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\ICA Client\Engine\Configuration\Advanced\Modules\Logging]
"LogConfigurationAccess"="true"
"LogConnectionAuthorisation"="true"
"LogEvidence"="true"
"LogICAFile"="true"
"LogFile"="C:\\TEMP\\ica.log"
"LogStartup"="true"

;Receiver Always On Tracing
;**************************
;generates ETL Files for analyzing with CDFControl see CTX111961 for details
;can be configured or overruled by GPOs (icaclient.admx)
;path %USERPROFILE%\AppData\Local\Temp\CTXReceiverLogs
[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Citrix\ICA Client\AoLog]
"EnableTracing"=dword:00000001

;Single Sign-on Logging
;**************************
;https://support.citrix.com/article/CTX206102
[HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Citrix\Install\SSON]
"DebugEnabled"="true"
"LogPath"="C:\\Temp"

Troubleshooting – Duplicate Stores

Stores are sometimes duplicated in Workspace app, especially if you are running Workspace app inside a VDA. (h/t Dan High)

StoreFront URLs can be defined in several places:

  1. In Studio, go to Configuration > StoreFront and delete all URLs configured here.
  2. Look in GPOs for Computer Configuration > Administrative Templates > Policies > Citrix Components > Citrix Workspace > StoreFront > NetScaler Gateway URL/StoreFront Accounts List. Remove any URLs configured here.
  3. In the client-side registry, at HKLM\Software\Wow6432Node\Citrix\Dazzle\Sites, you might see store addresses that were specified during a command line installation of Workspace app.
  4. When Citrix Workspace app switches between StoreFront servers in multiple datacenters, it’s possible for each datacenter to be treated as a separate Workspace app site. This can be prevented by doing the following. From Juan Zevallos at Citrix Discussions:
    1. Match the Base URL in all datacenters.
    2. Match the SRID in all datacenters – The SRID can be safely edited in the C:\inetpub\wwwroot\Citrix\Roaming\web.config. Make sure to propagate changes to other servers in the group.
    3. Match the Delivery Controller names under “Manage Delivery Controllers” – The XML brokers can be different, but the actual name of the Delivery Controller/Farm must be identical.

If you are running Workspace app on a VDA, once you’ve removed the configured URLs shown above, do the following to clean up the VDAs:

  1. On the VDA, HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Citrix – Delete the number folders representing policy entries.
  2. On session host VDAs, HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\Windows NT\CurrentVersion\Terminal Server\Install\Software\Citrix – Remove the entries for storefront in the following folders.
    1. Under \receiver\ctxaccount delete all entries.
    2. Under \SR\Store delete the entries.
  3. On the VDA, C:\ProgramData\CitrixCseCache – Delete all files
  4. On the VDA, C:\ProgramData\Citrix\GroupPolicy – Delete all folders and files.
  5. Run gpupdate and logoff.
  6. In the user’s registry, HKEY_CURRENT_USER or the profile registry hive. Possible profile reset.
    1. Under Software\Citrix\Dazzle\Sites – Delete all entries.
    2. Under Software\Citrix\Receiver\ctxaccount – delete all entries.
    3. Under Software\Citrix\SR\Store – delete the entries.
  7. Verify no cached profile folders for user on server.
